4.9.1 Converter 1 Start-Up

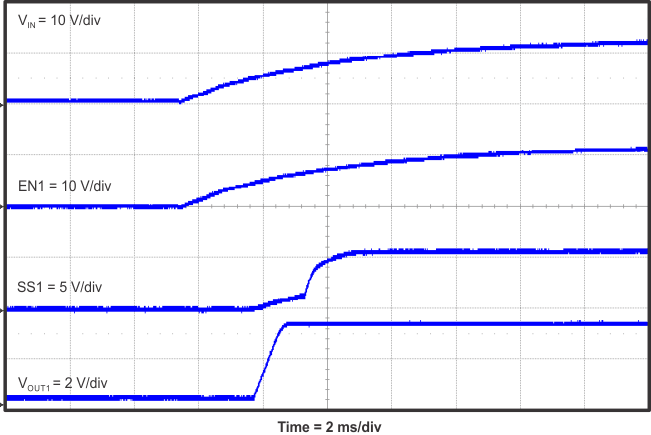

The TPS54495EVM start-up waveform of converter 1 relative to VIN is shown in Figure 4-16.

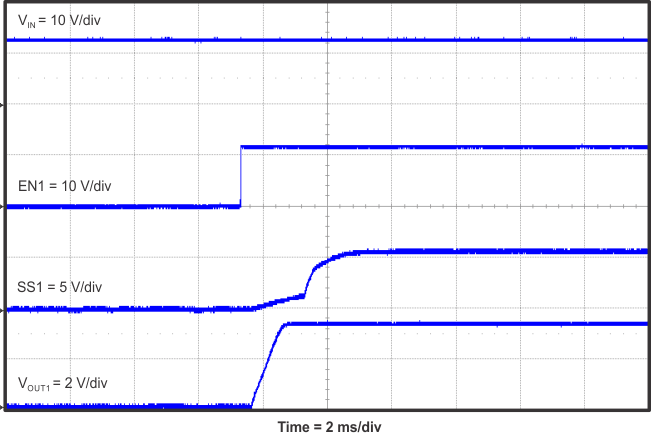

Figure 4-16 TPS54495EVM Converter 1 Start-Up Relative to VINThe TPS54495EVM start-up waveform of converter 1 relative to EN1 is shown in Figure 4-17.
Figure 4-17 TPS54495EVM Start-Up Relative to EN1
