SLVU157A March 2006 – October 2021
2.5 Load Transients
The TPS5430EVM-173 and TPS5431EVM-173 response to load transients is shown in Figure 2-7 and Figure 2-8. The current step is from 25% to 75% of maximum rated load. Total peak-to-peak voltage variation is as shown, including ripple and noise on the output.

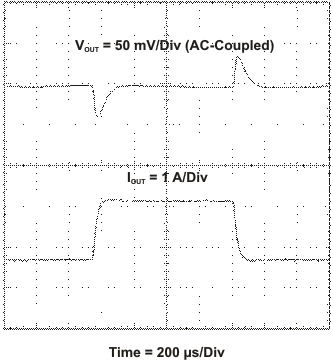

Figure 2-7 PS5430 Transient Response

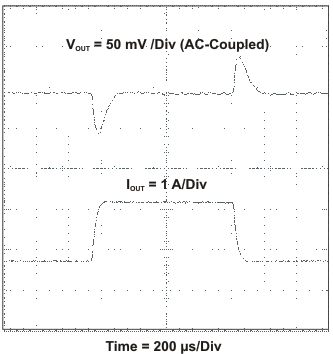

Figure 2-8 TPS5431 Transient Response
