2 Test Procedures
The TPS7H2140-SEP was electrically pre and post-tested using the production automated test equipment program.
General test procedures adhered to MIL-STD-883, Method 1017 for neutron irradiation of TPS7H2140-SEP. Neutron irradiation conditions are listed in Table 2-1.
Table 2-1 Neutron Irradiation Conditions
| Group | Sample Quantity | Neutron Fluence (n / cm2) | Bias |
|---|---|---|---|
| A | 3 | 1.0 × 1012 | Unbiased |
| B | 3 | 5.0 × 1012 | Unbiased |
| C | 3 | 1.0 × 1013 | Unbiased |

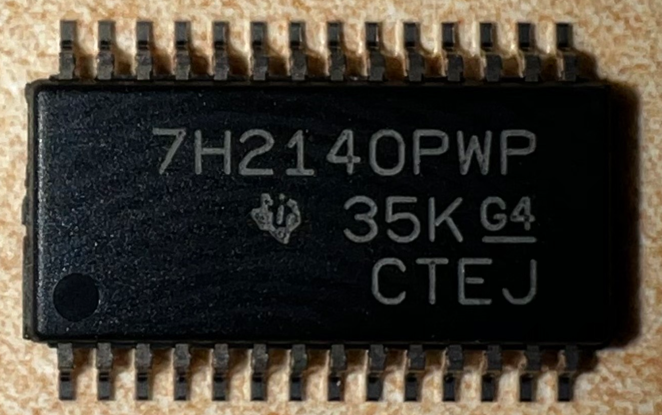

Figure 2-1 TPS7H2140-SEP Device
(Front)

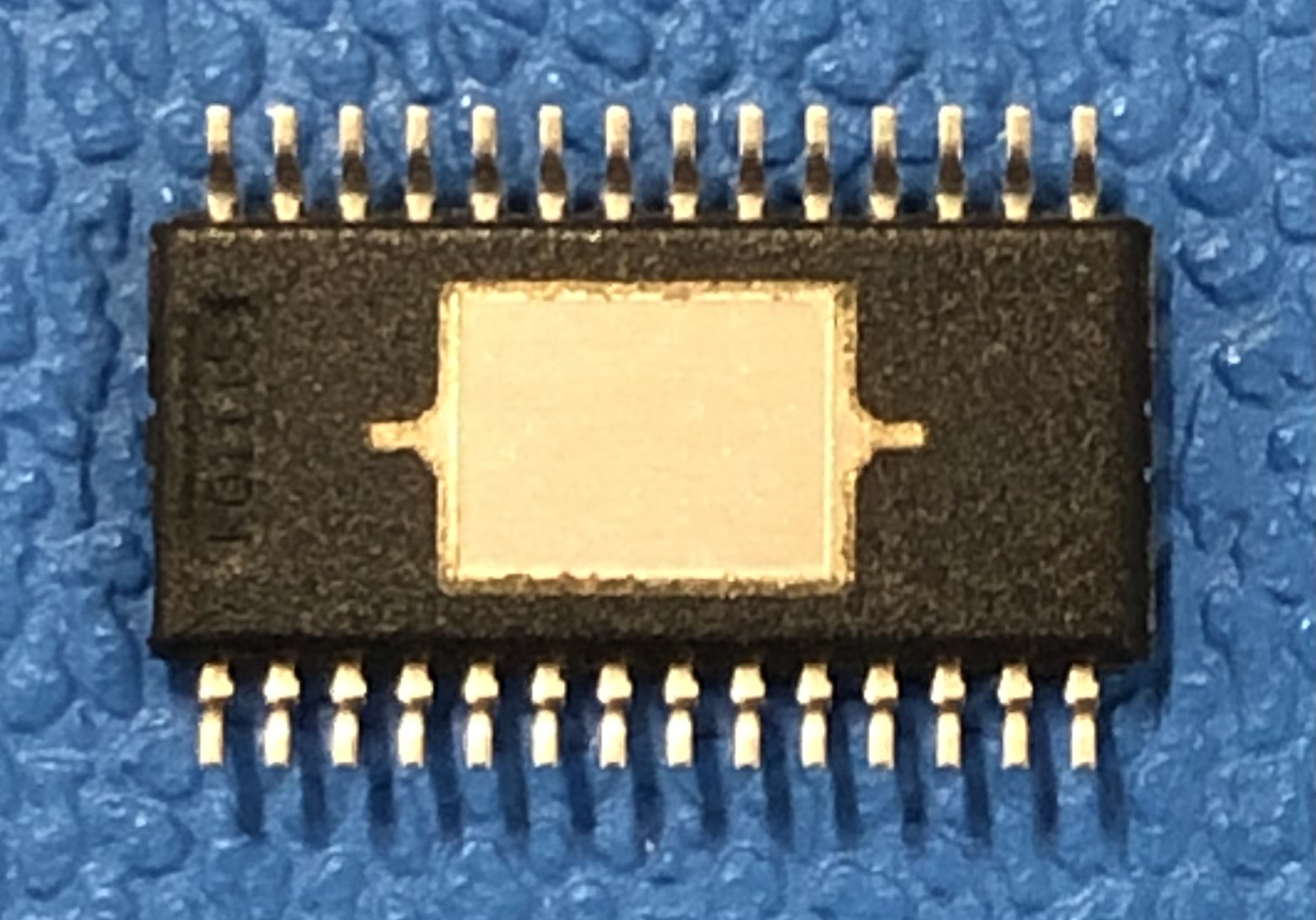

Figure 2-2 TPS7H2140-SEP Device
(Back)
