3 Device and Test Board Information
The TPS7H4003-SEP is packaged in a 44-pin plastic package as shown in Figure 3-1. The TPS7H4003 evaluation module was used to evaluate the performance and characteristics of the TPS7H4003-SEP under heavy-ions. Figure 3-2 shows the top view of the evaluation board used for the radiation testing. Figure 3-3 shows the EVM board schematic used for the heavy-ion testing campaign.
The package was delidded to reveal the die face for all heavy-ion testing.

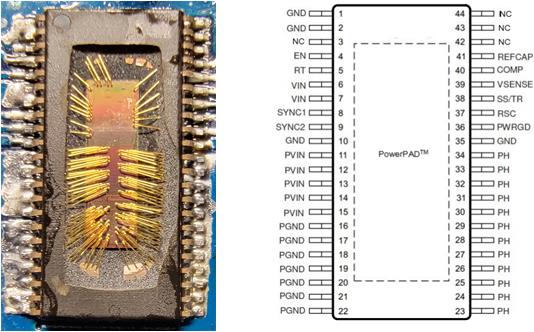

Figure 3-1 Photograph of Delidded TPS7H4003-SEP [Left] and Pinout Diagram [Right]
Figure 3-2 TPS7H4003-SEP Board Top
View
Figure 3-3 TPS7H4003 Daughter Card Schematic
