4 Board Layout
This section provides the TPS62866EVM-051 board layout and illustrations in Figure 4-1 through Figure 4-7. The Gerbers are available on the EVM product page: TPS62866EVM-051

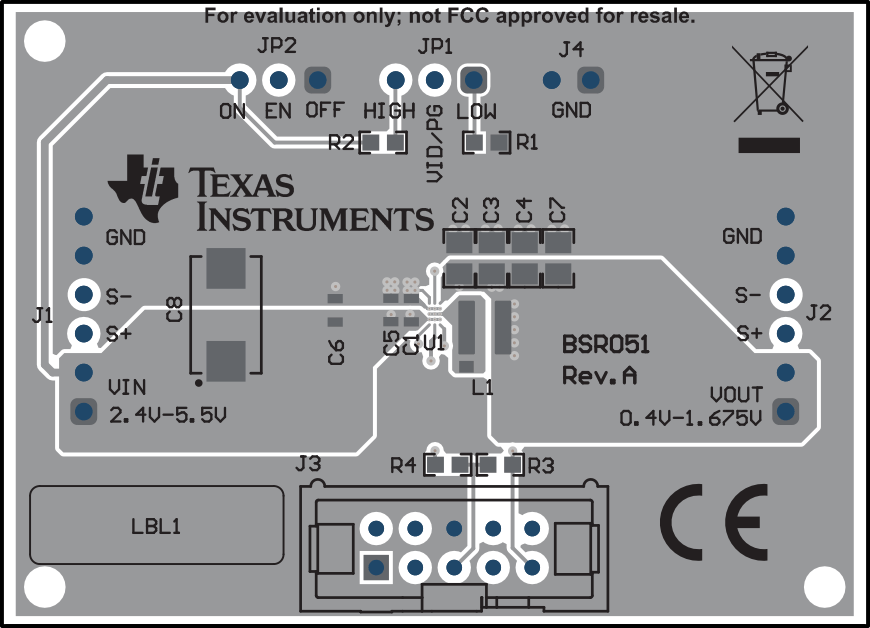

Figure 4-1 Top Assembly

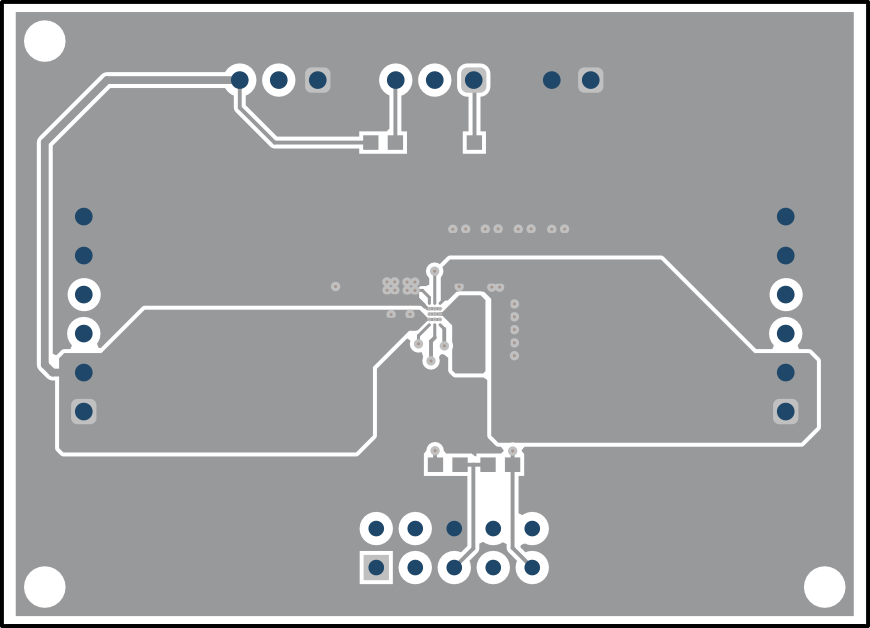

Figure 4-2 Top Layer
Figure 4-3 Signal Layer 1
Figure 4-4 Signal Layer 2
Figure 4-5 Signal Layer 3
Figure 4-6 Signal Layer 4
Figure 4-7 Bottom Layer

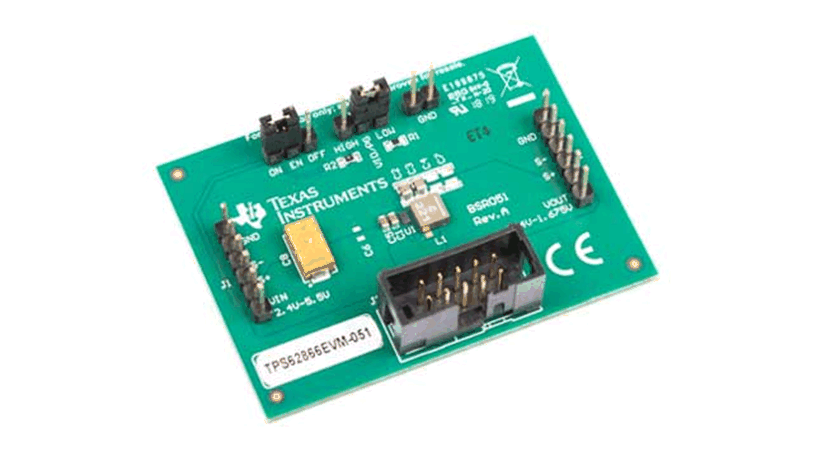

Figure 4-8 TPS62866EVM-051 Angled
View

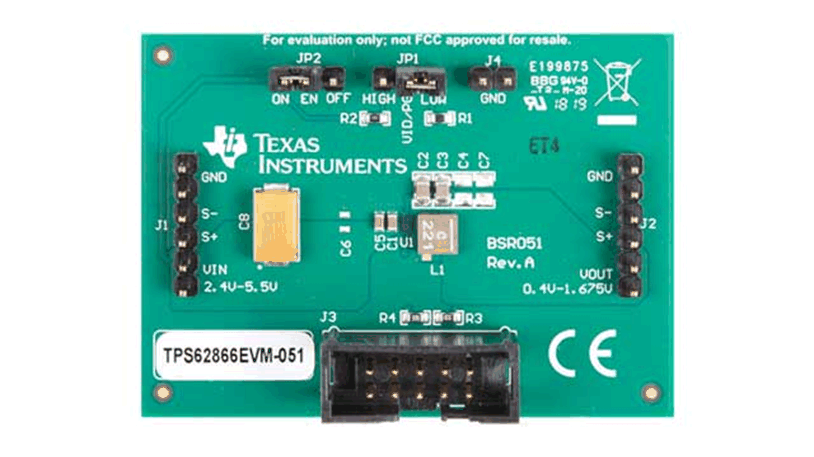

Figure 4-9 TPS62866EVM-051 Overhead
View
