4.7 Output Voltage Ripple
The TPS563231EVM-032 output voltage ripple is shown in Figure 4-6, Figure 4-7, and Figure 4-8. The output currents are as indicated.

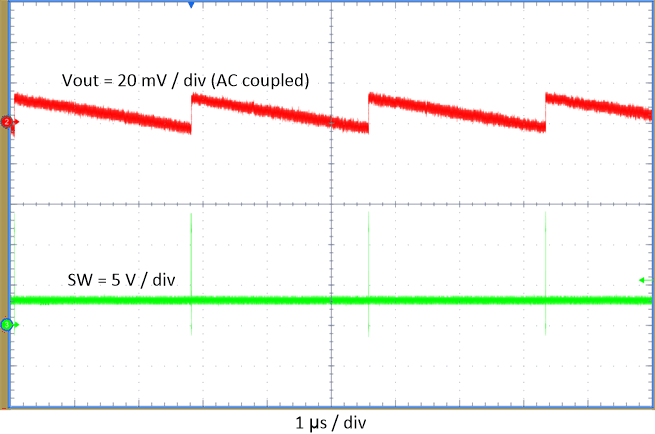

Figure 4-6 TPS563231EVM-032 Output Voltage Ripple, IOUT = 3 A

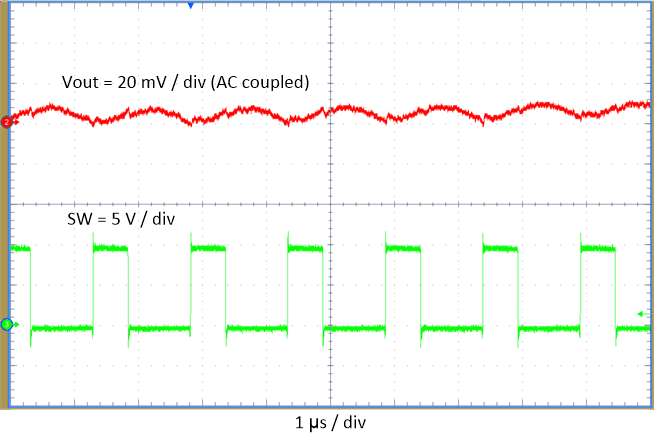

Figure 4-7 TPS563231EVM-032 Output Voltage Ripple, IOUT = 300 mA

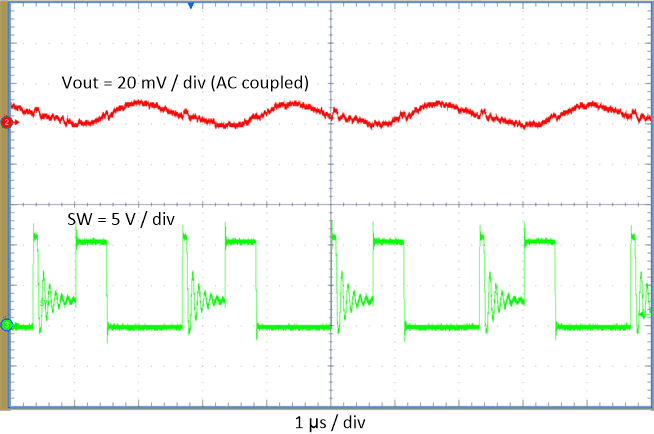

Figure 4-8 TPS563231EVM-032 Output Voltage Ripple, IOUT = 0 mA
