11.2.2 Configure the Inductor Current
The Piezo load requires approximately 1.88 mA of average current based on the following equation:
| Piezo Actuator Current Requirements (Approximate) | |
|---|---|
| Iout_max = 2π × Cactuator × Vboost × ?in_max | Iout_max = 1.884956 mA Maximum required amplifier current (estimate) |
 | Ibat_max = 139.626 mA Maximum VBAT current |
This means that the inductor current limit (REXT) needs to be sufficiently large to support 1.88 mA.

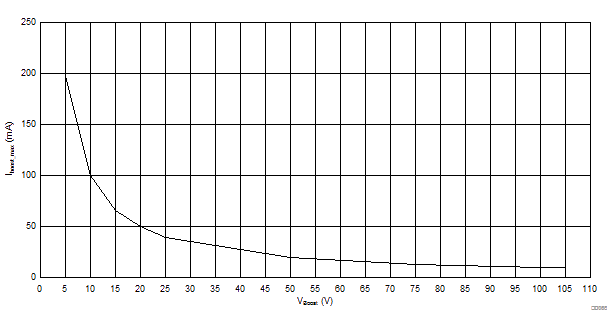

The DRV2667EVM-CT inductor is already fixed, but from here forward you may choose a different inductor that fits your load requirements. The maximum boost current with 80 Vp boost voltage is 12.4 mA, based on the 3.3-μH /1.1-A TDK inductor selected using the following equations:
