2.6.5 Hardware lock Current Limit [HW_LOCK_LIMIT]
This fault gets triggered when there is a spike in the phase current due to short circuit as shown in Figure 2-5. Short circuit can be due to phase to phase, phase to GND or Vm to GND short. Another reason to trigger this fault is incorrect speed loop and current loop PI controller gains.

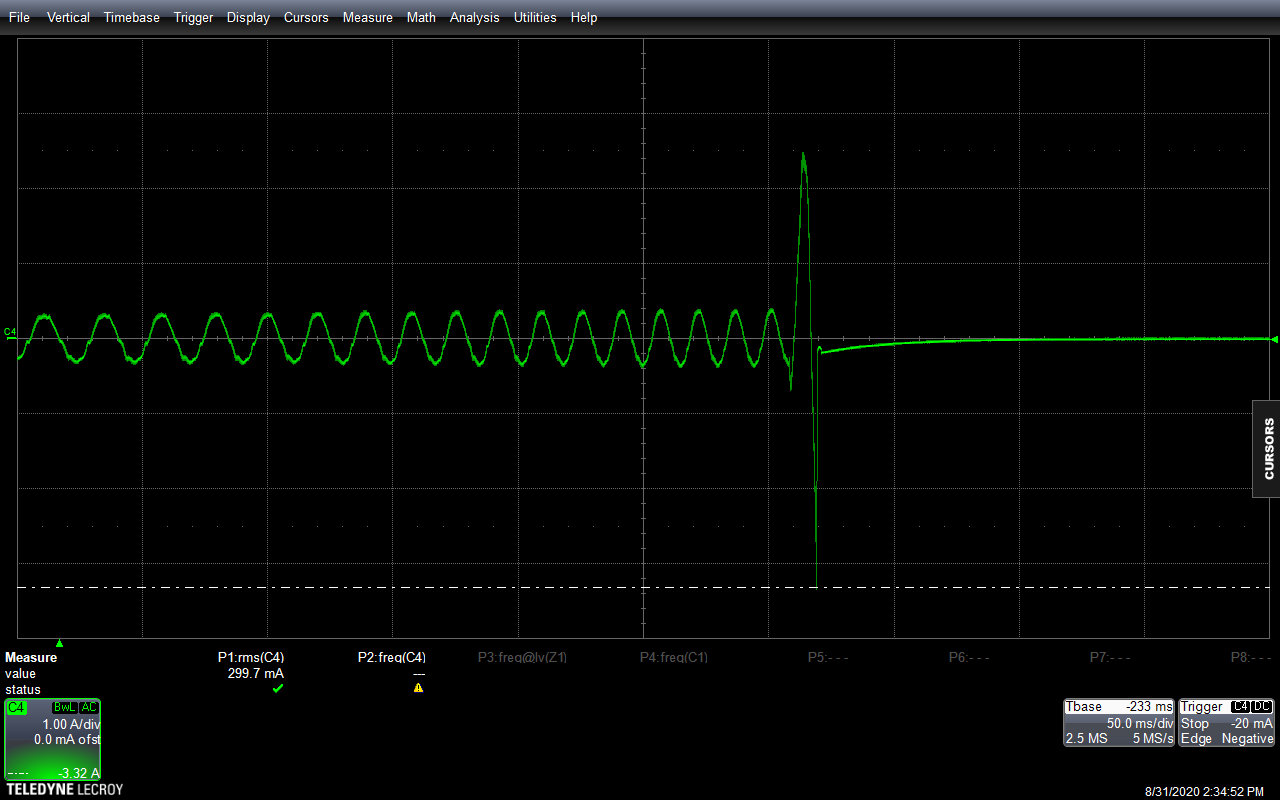

Figure 2-5 Phase Current Waveform Showing
a Spike due to Short CircuitStep 1: Program Speed loop Kp [SPD_LOOP_KP], Speed loop Ki [SPD_LOOP_KI], current loop Kp [CURR_LOOP_KP] and current loop Ki [CURR_LOOP_KI] to zero. This enables auto calculation of speed loop and current loop PI controller gains.
Step 2: If the fault still persists, check the continuity across phase to phase, phase to GND or Vm to GND to make sure there is no short across these terminals.
