SLLU318 April 2020 TUSB1146
3 TUSB1146EVM Schematics
Figure 3 displays the block diagram of the EVM.

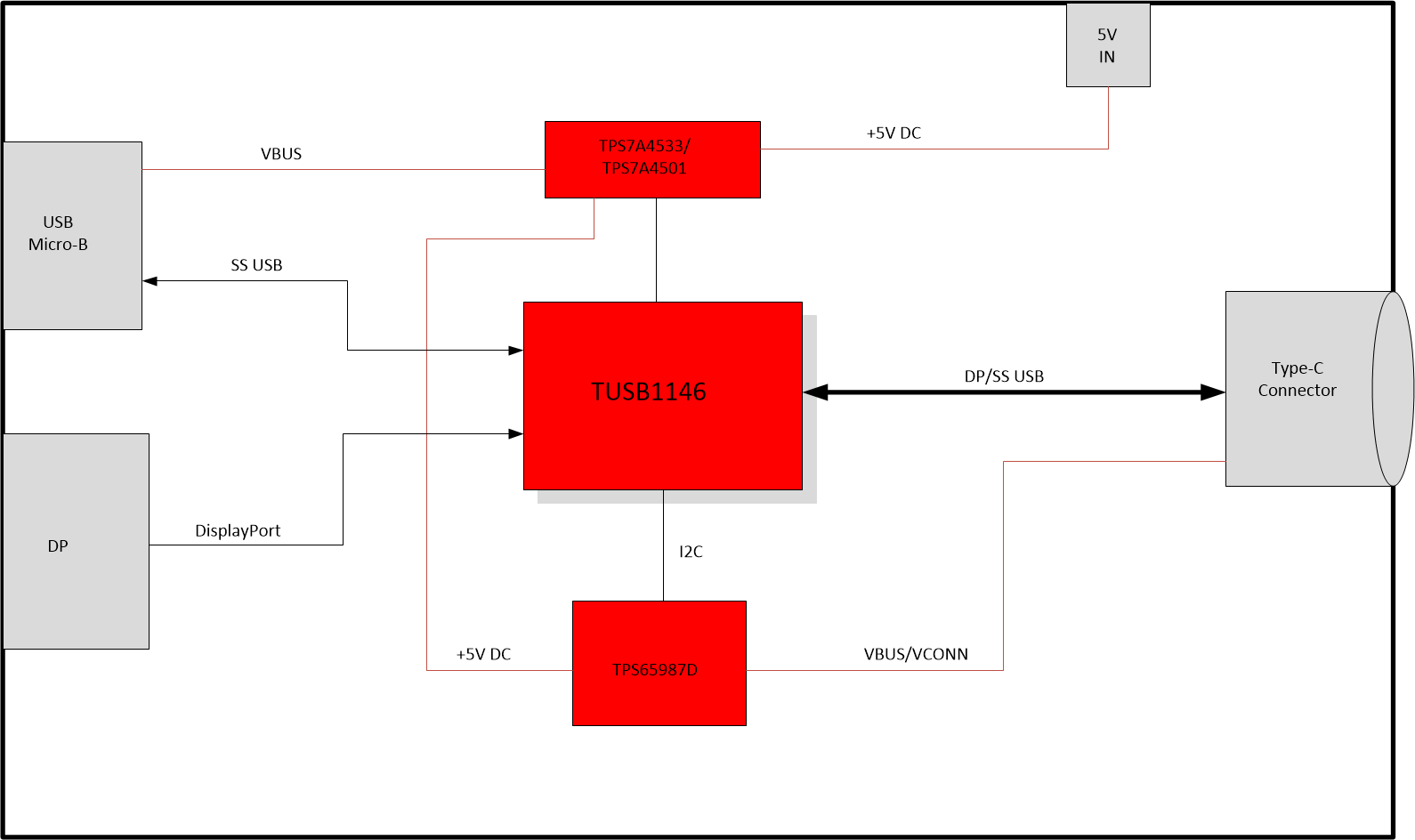

Figure 3. TUSB1146EVM Block Diagram Figure 4 through Figure 7 show the EVM schematics.

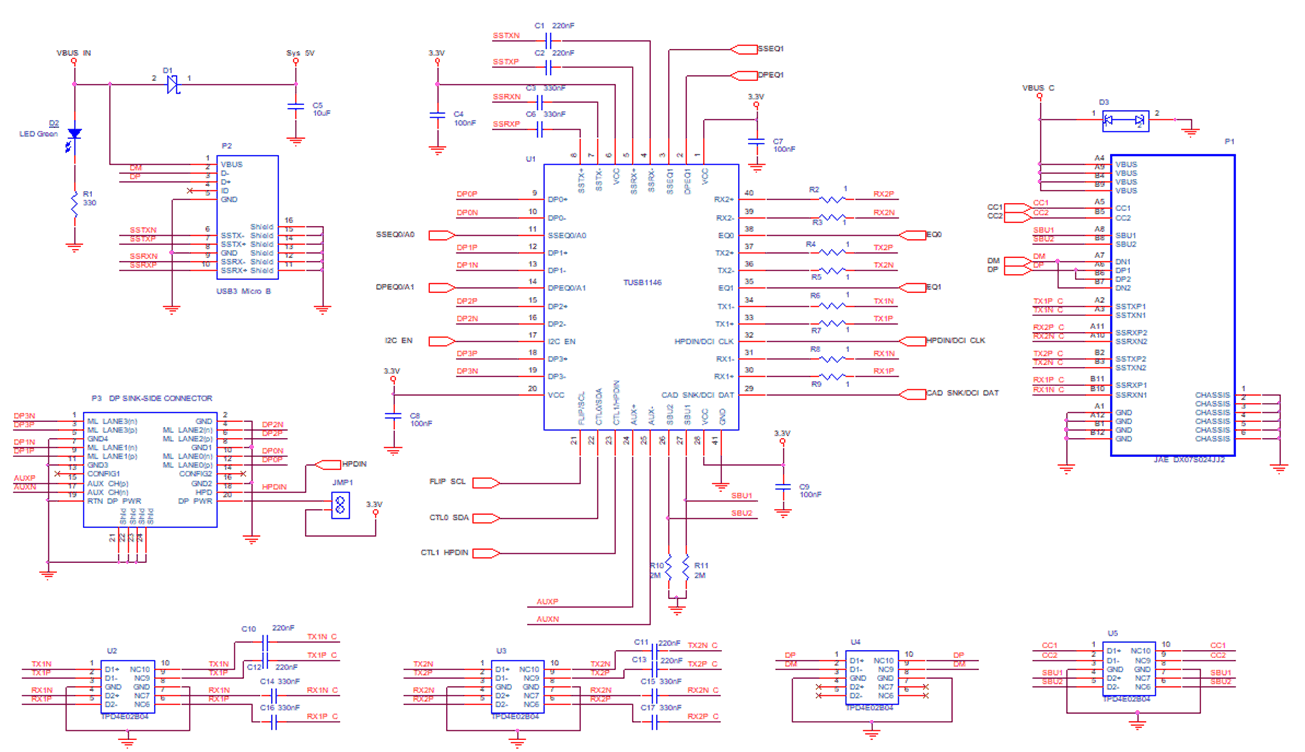

Figure 4. TUSB1146EVM Schematics (1 of 4)

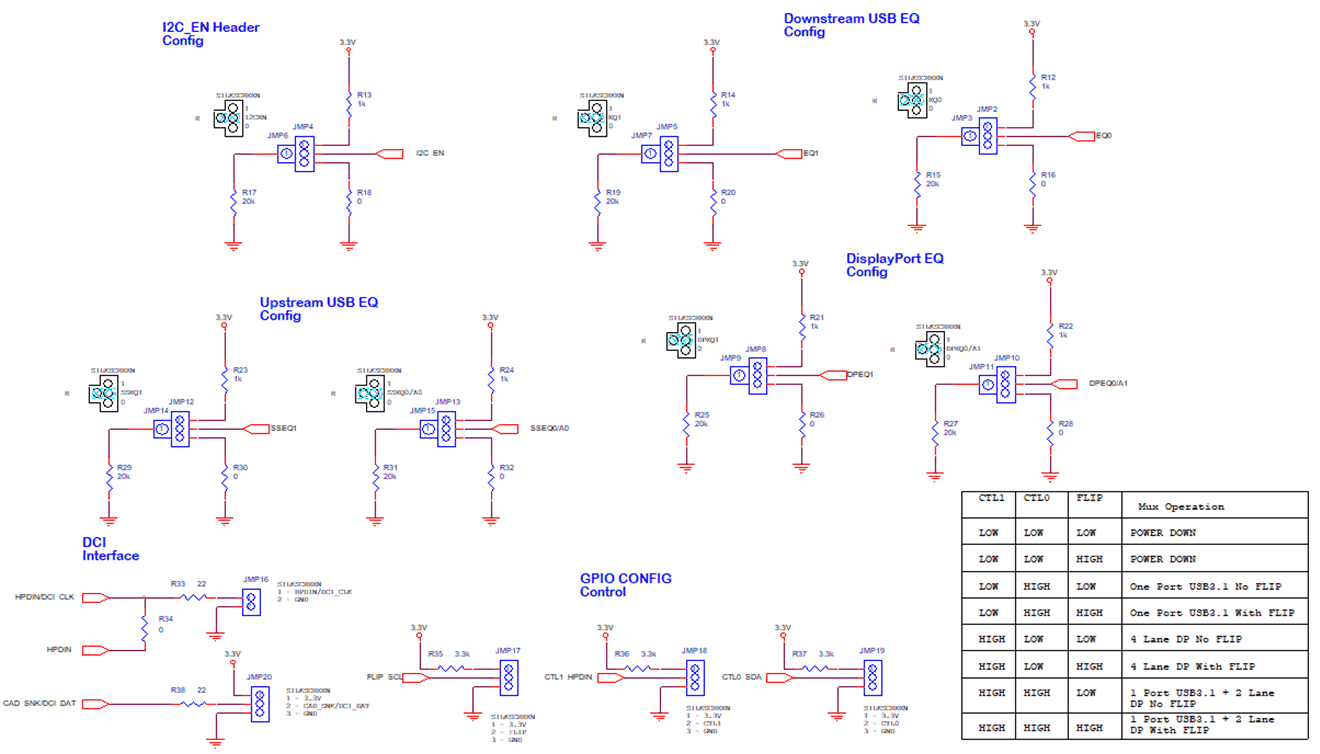

Figure 5. TUSB1146EVM Schematics (2 of 4)

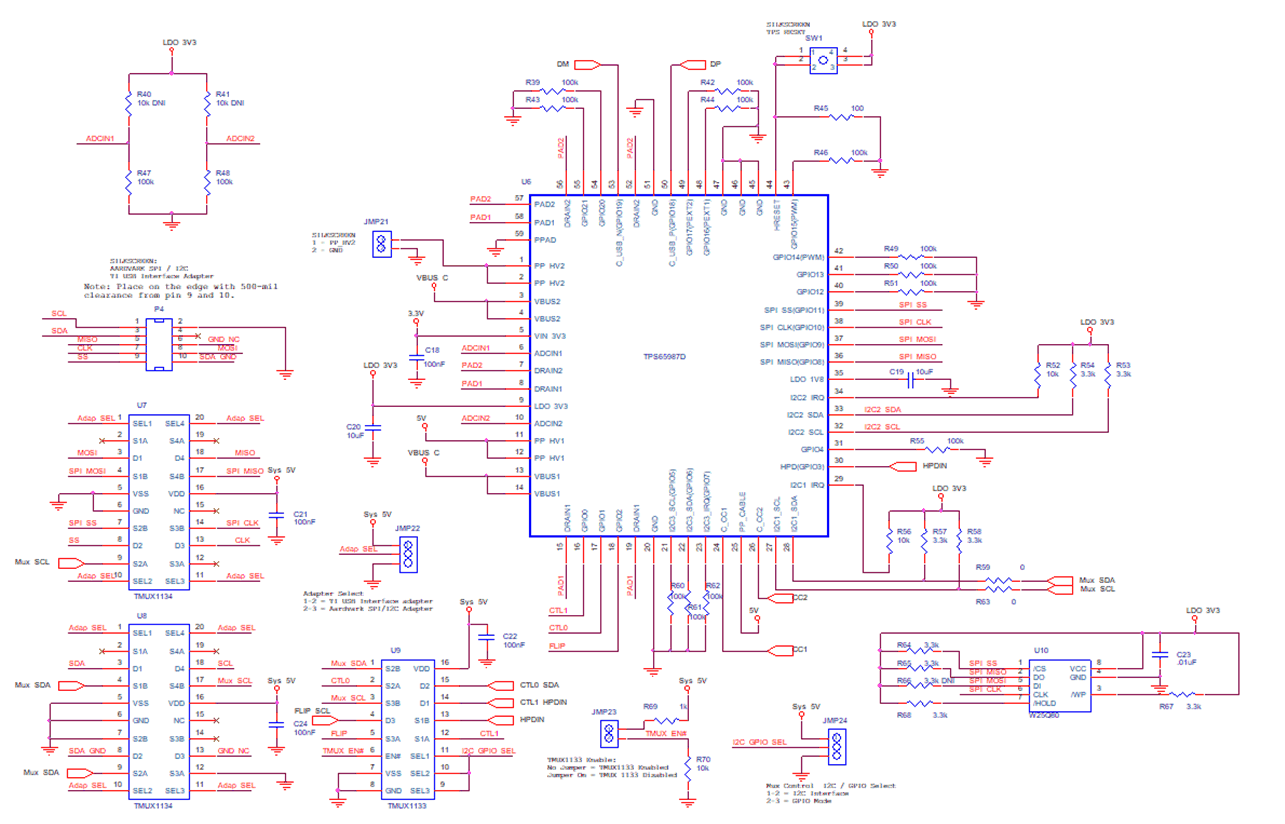

Figure 6. TUSB1146EVM Schematics (3 of 4)

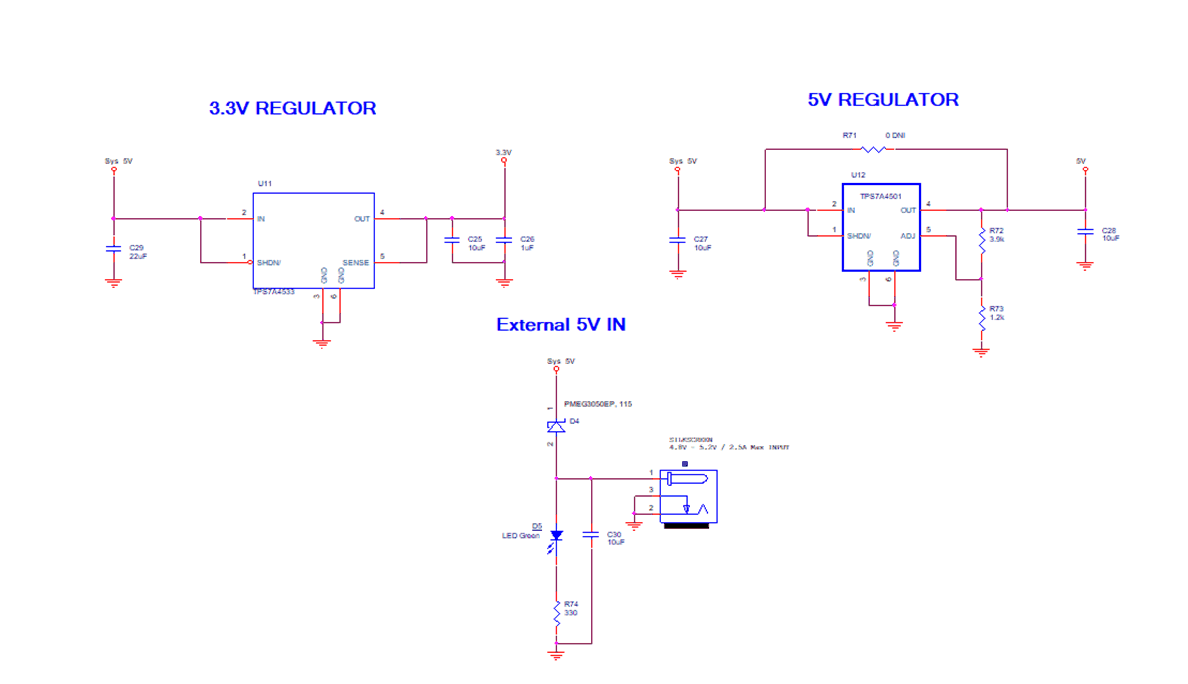

Figure 7. TUSB1146EVM Schematics (4 of 4)
