4 Schematics
Figure 6 through Figure 24 illustrate the EVM schematics.

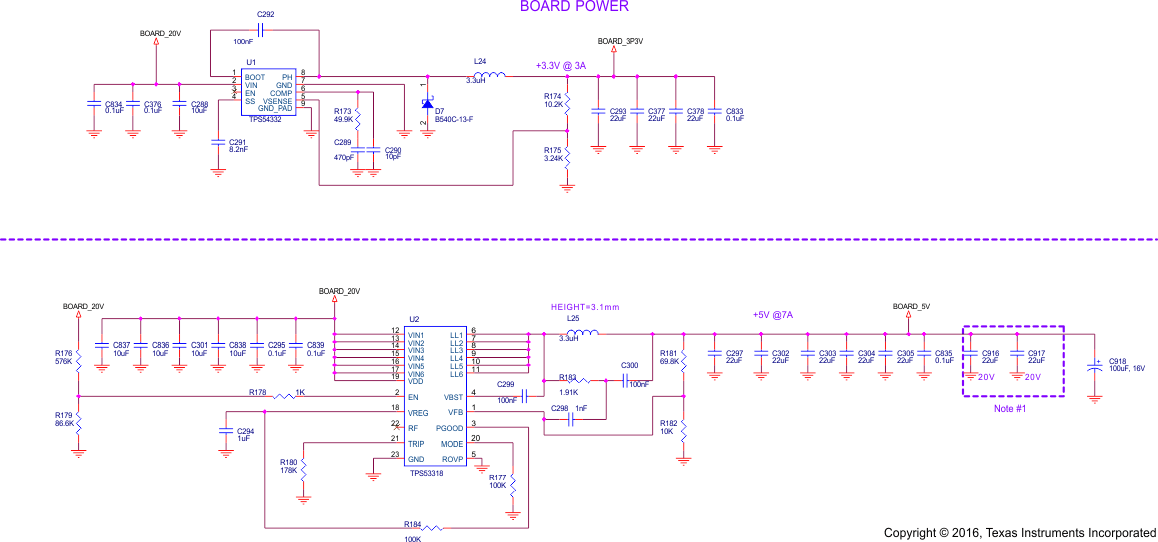

Figure 6. EVM Board Power Schematic

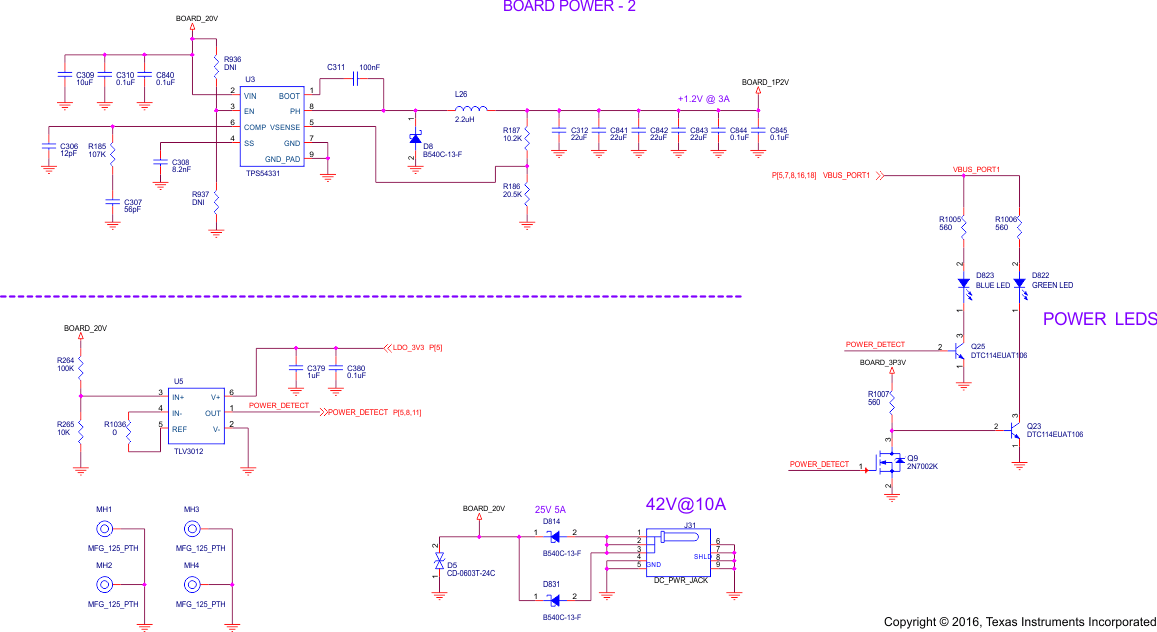

Figure 7. EVM Board Power 2 Schematic

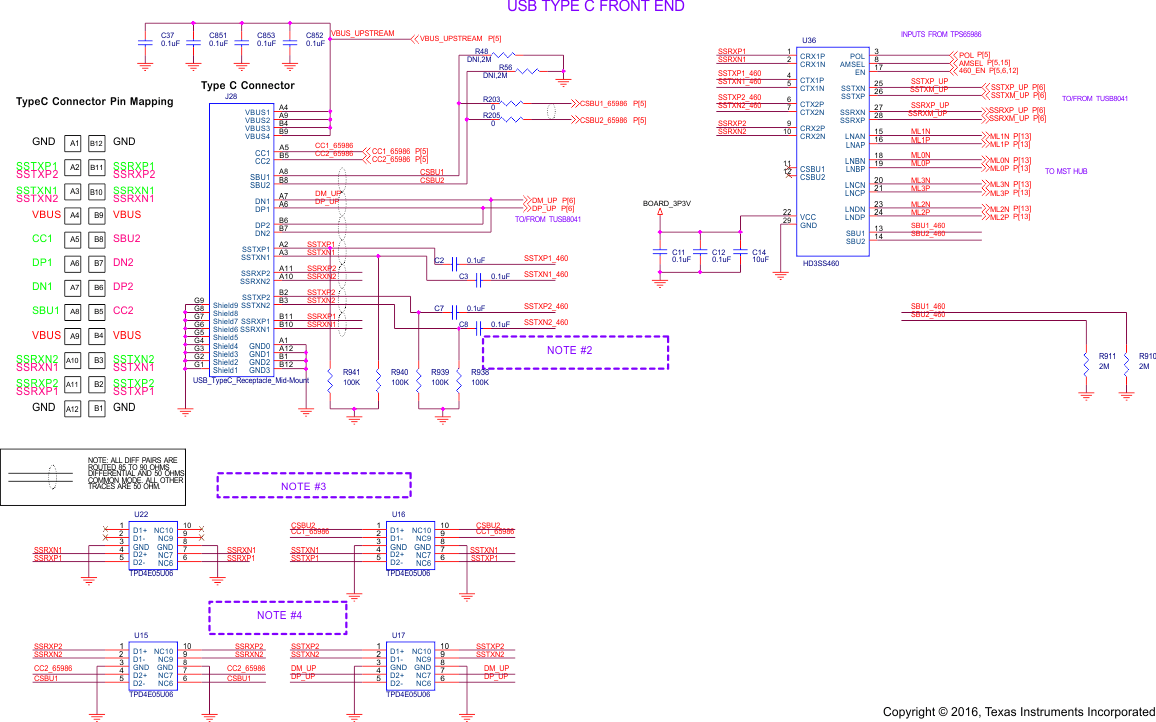

Figure 8. USB Type-C Front End Schematic
Figure 9. TPS65986 Schematic

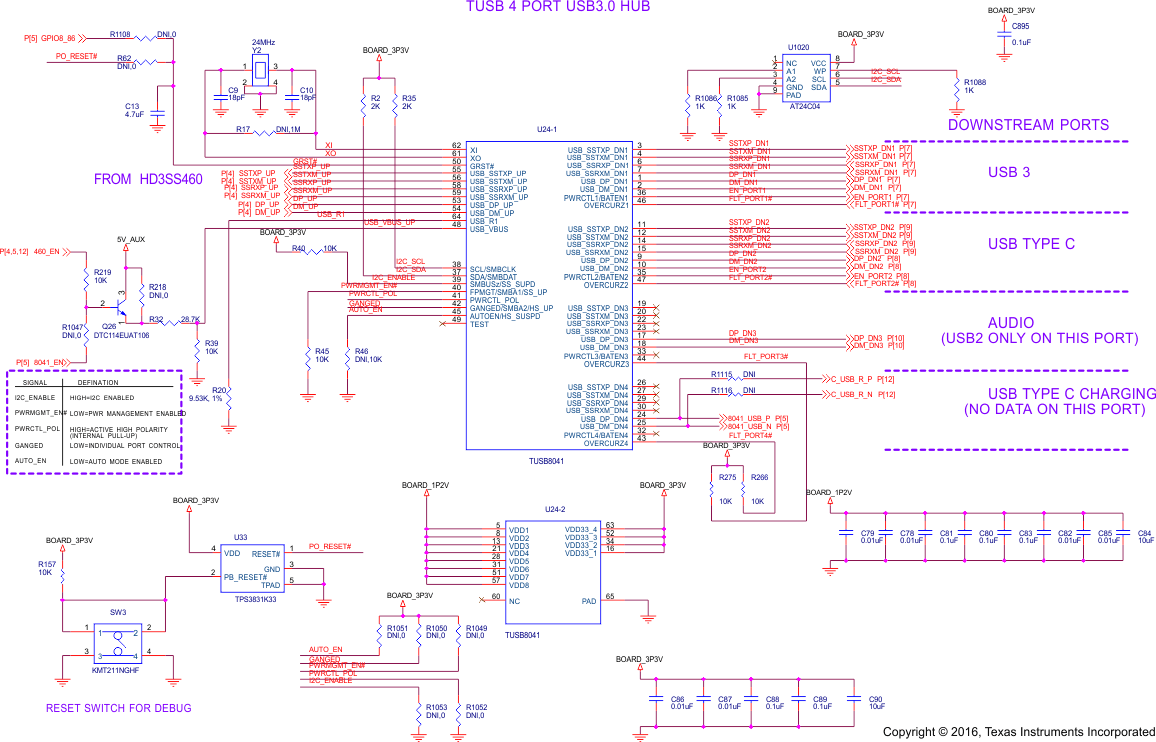

Figure 10. TUSB8041 Schematic

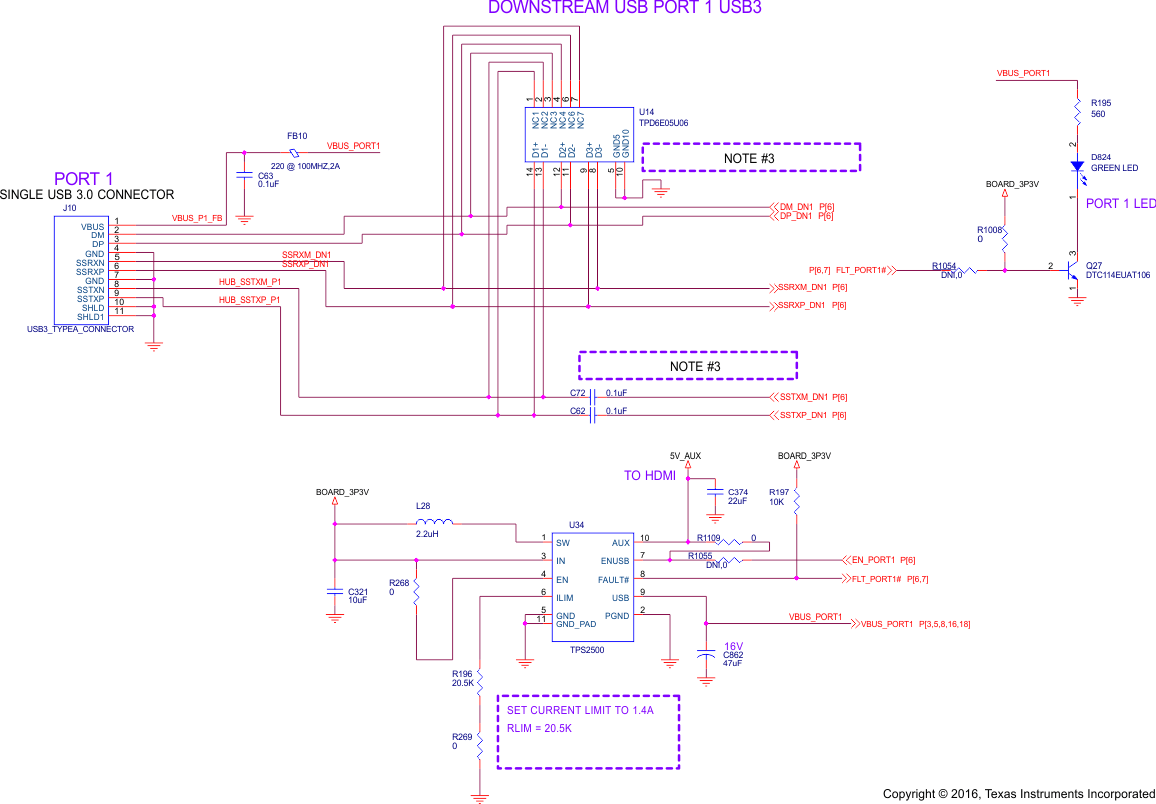

Figure 11. Port 1 Downstream USB Schematic

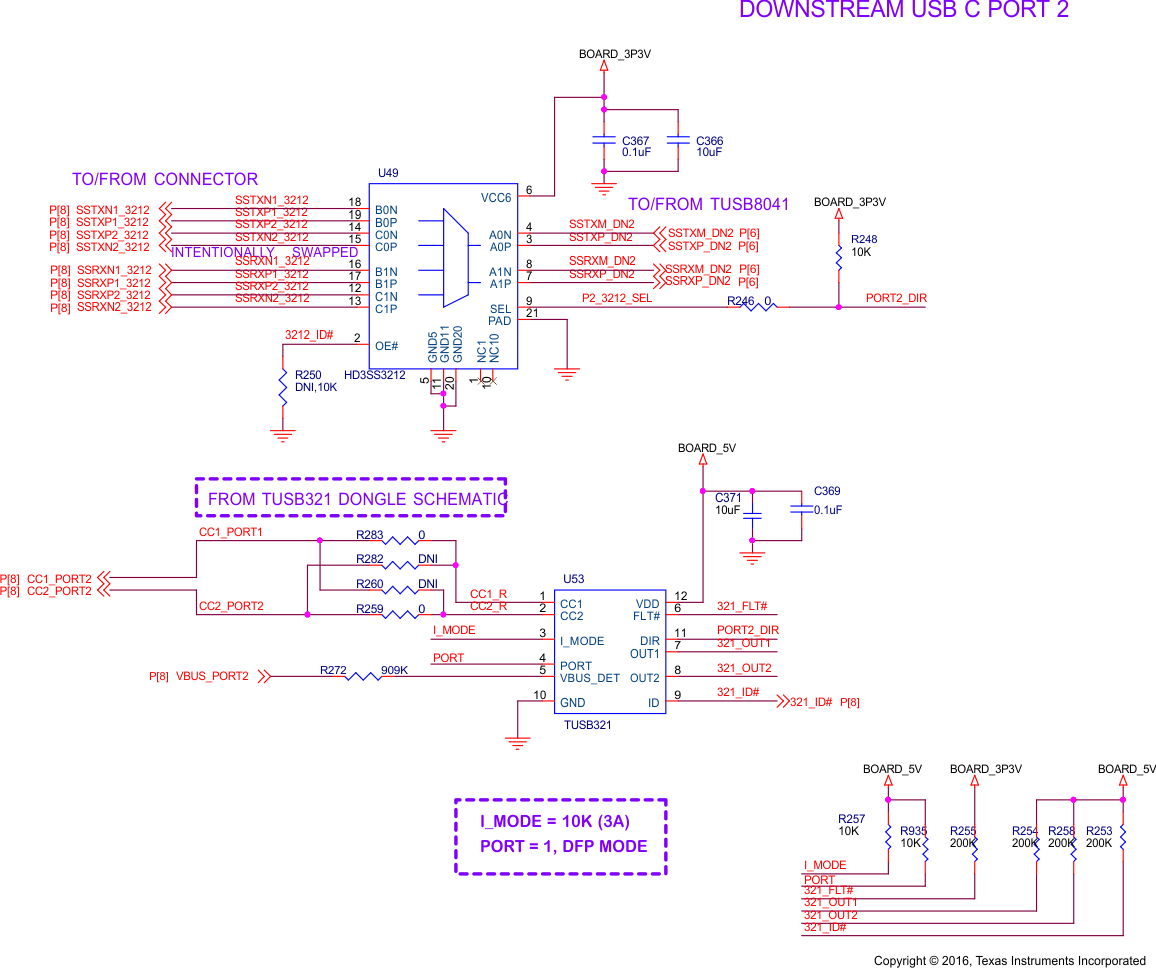

Figure 12. Port 2 Downstream USB Type-C Schematic

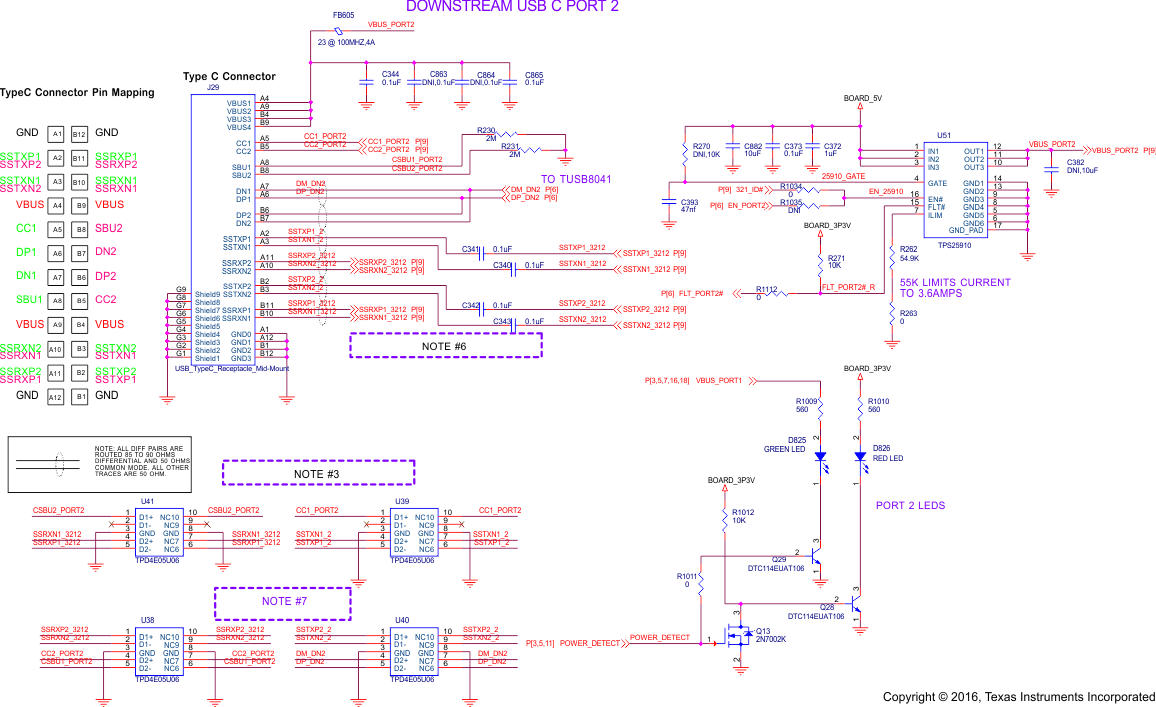

Figure 13. Port 2 USB Type-C Schematic

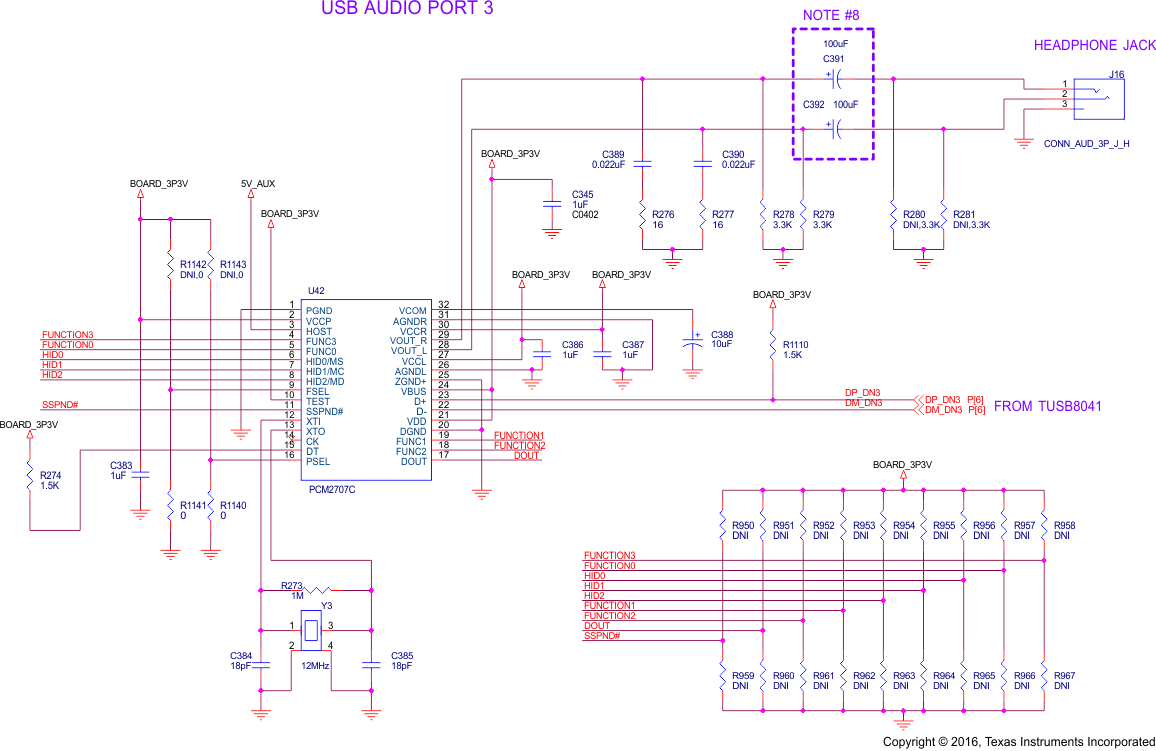

Figure 14. Port 3 USB Audio Schematic

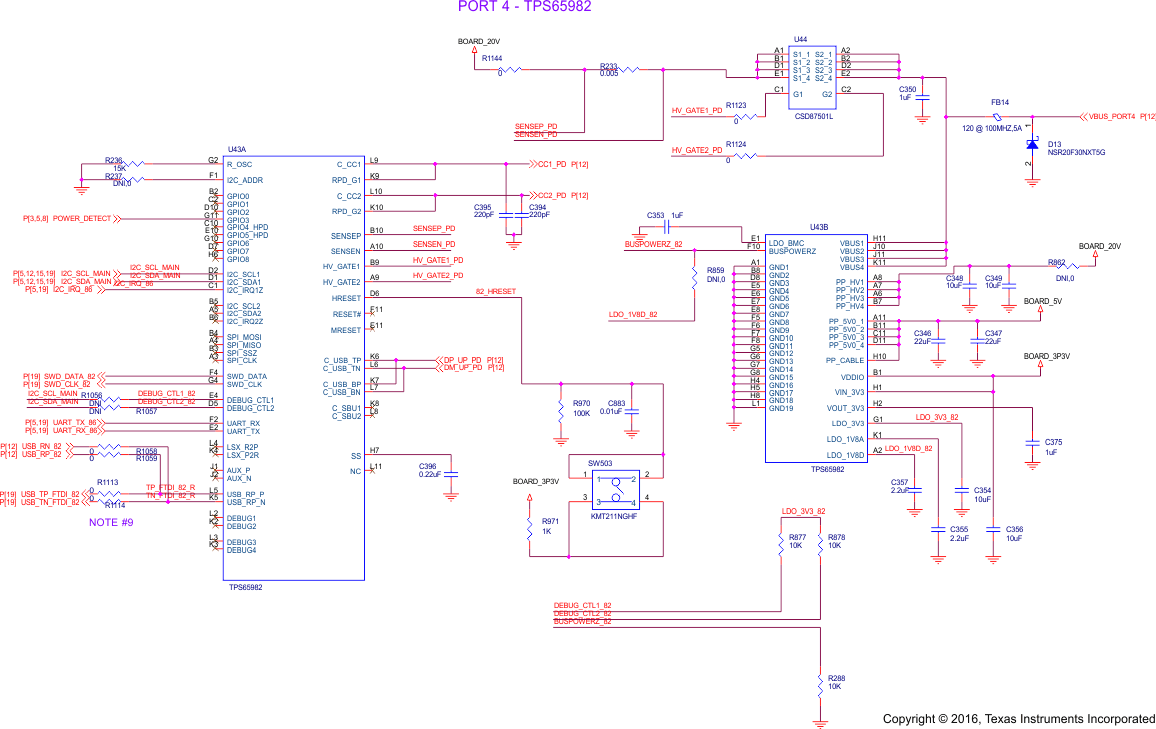

Figure 15. Port 4 USB Type-C Charging Schematic

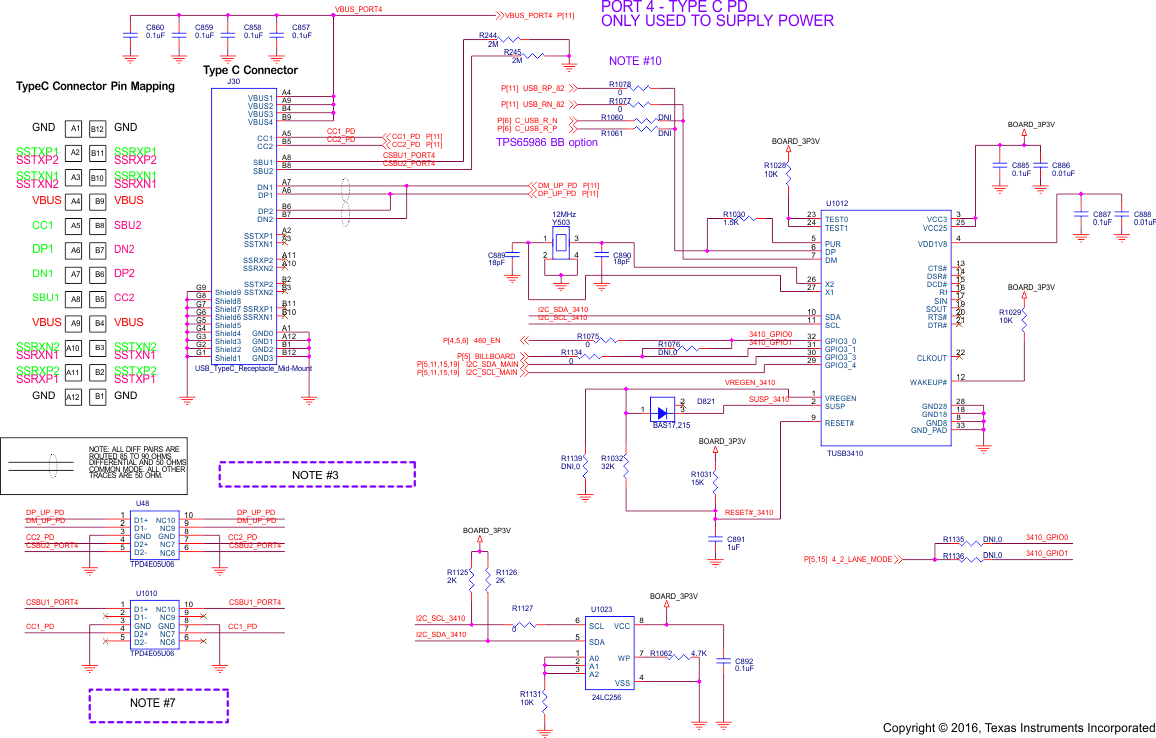

Figure 16. Port 4 USB Type-C Connector Schematic

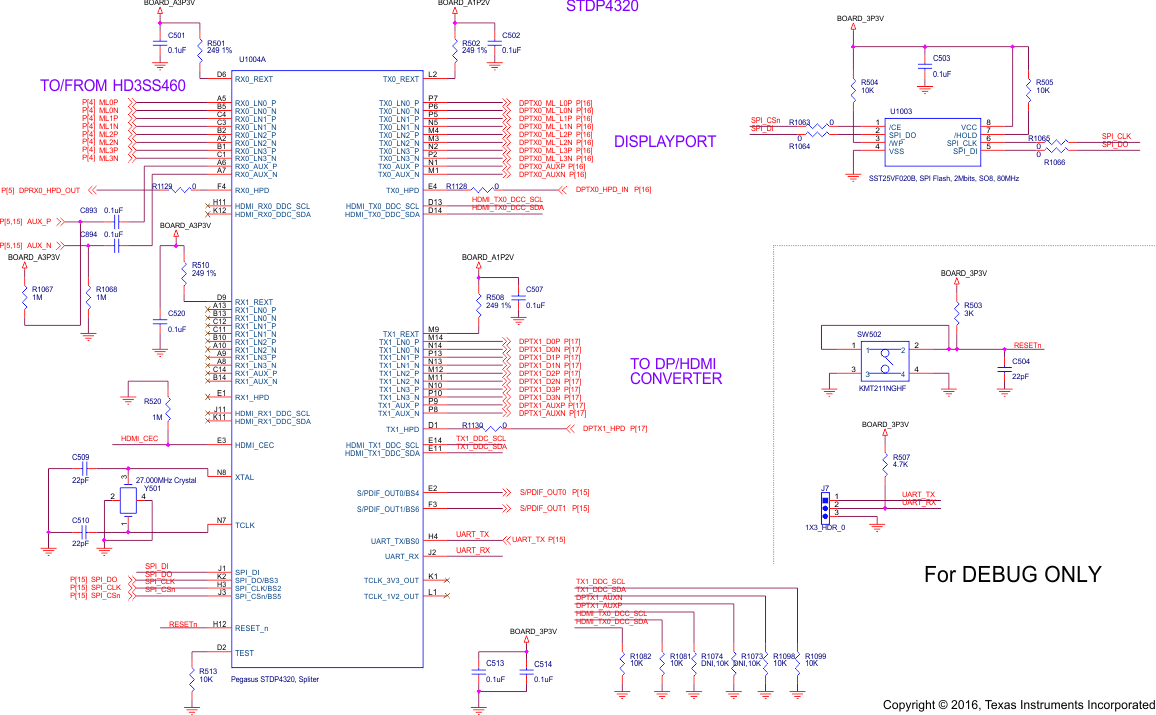

Figure 17. DP4320 Schematic

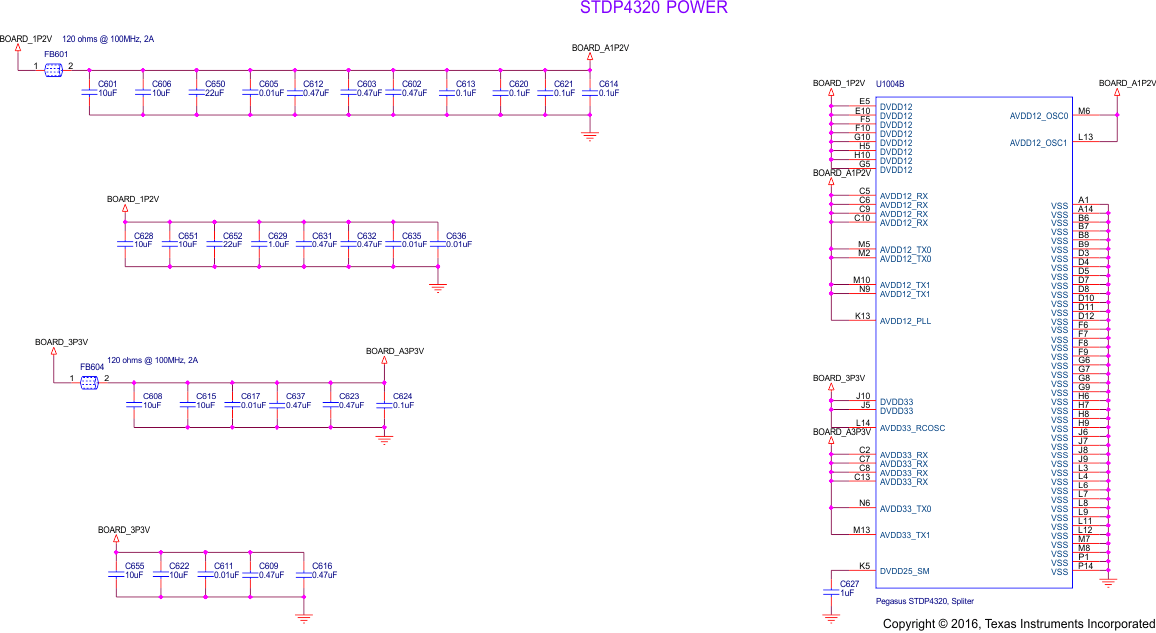

Figure 18. DP4320 Power Schematic

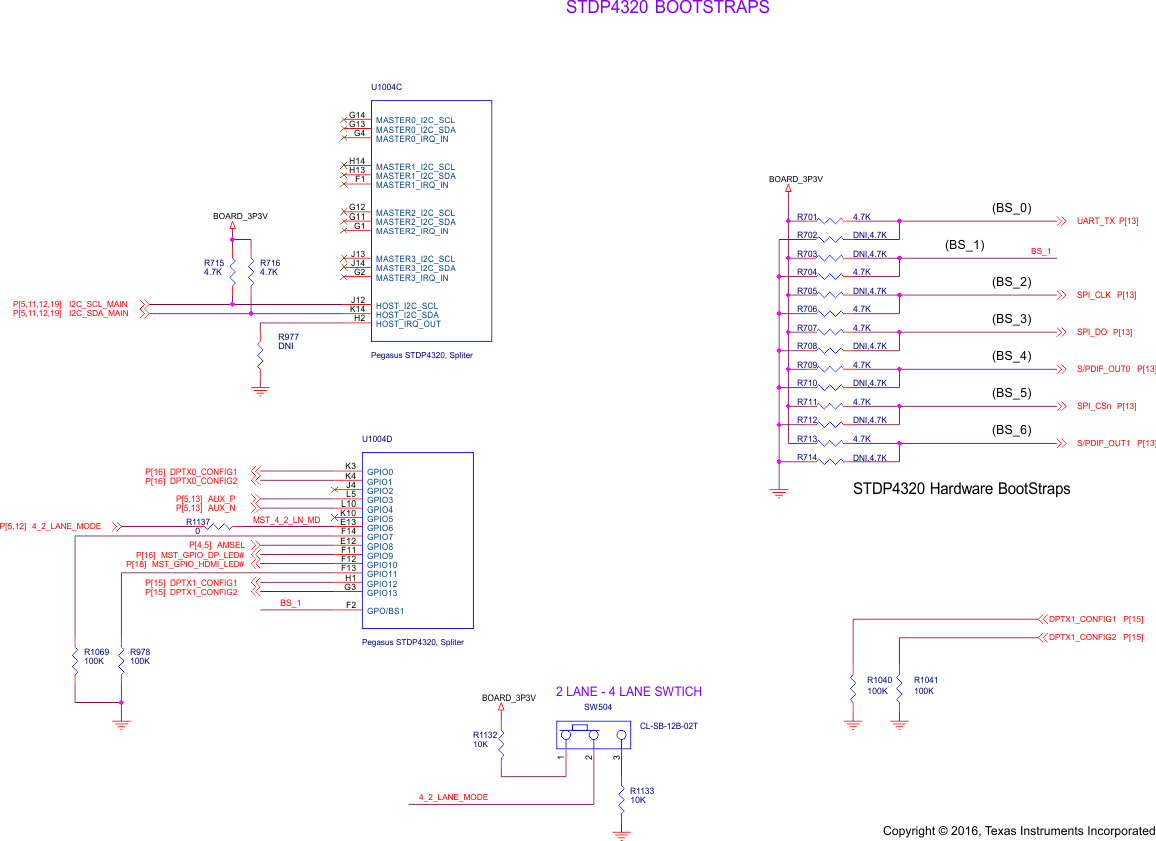

Figure 19. DP4320 Bootstrap Schematic

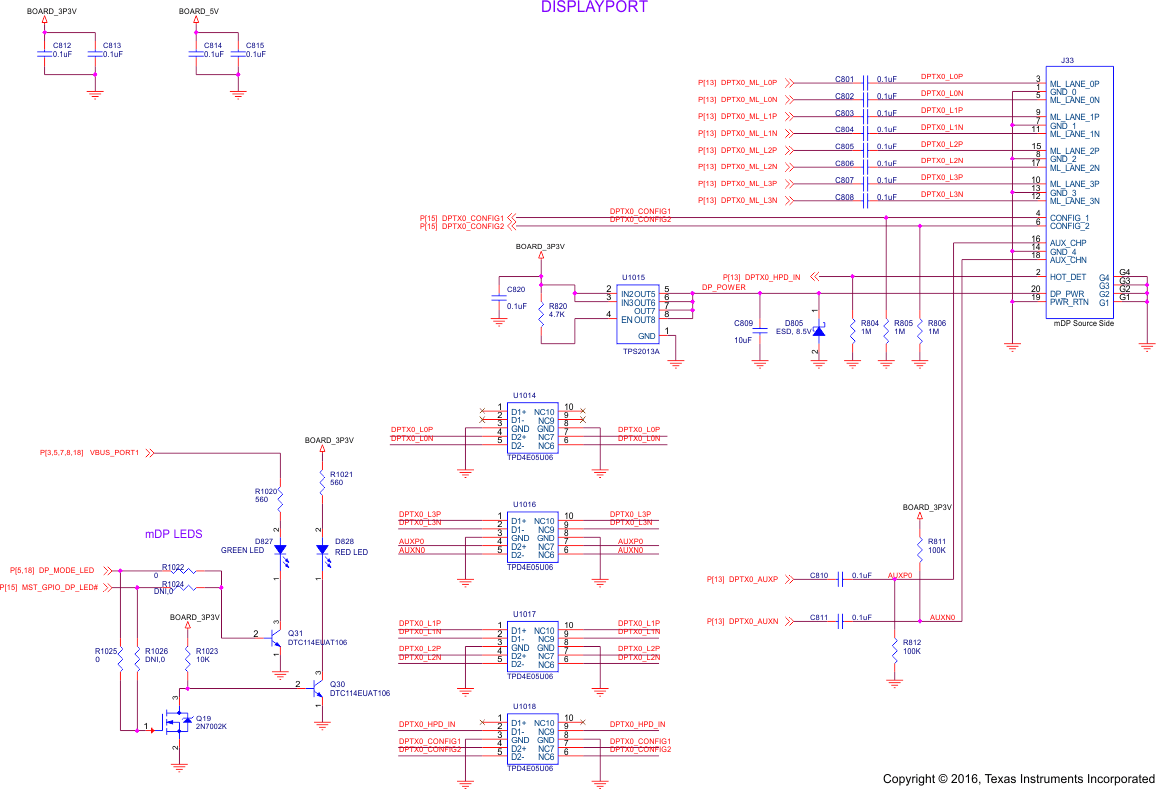

Figure 20. EVM Display Port Schematic

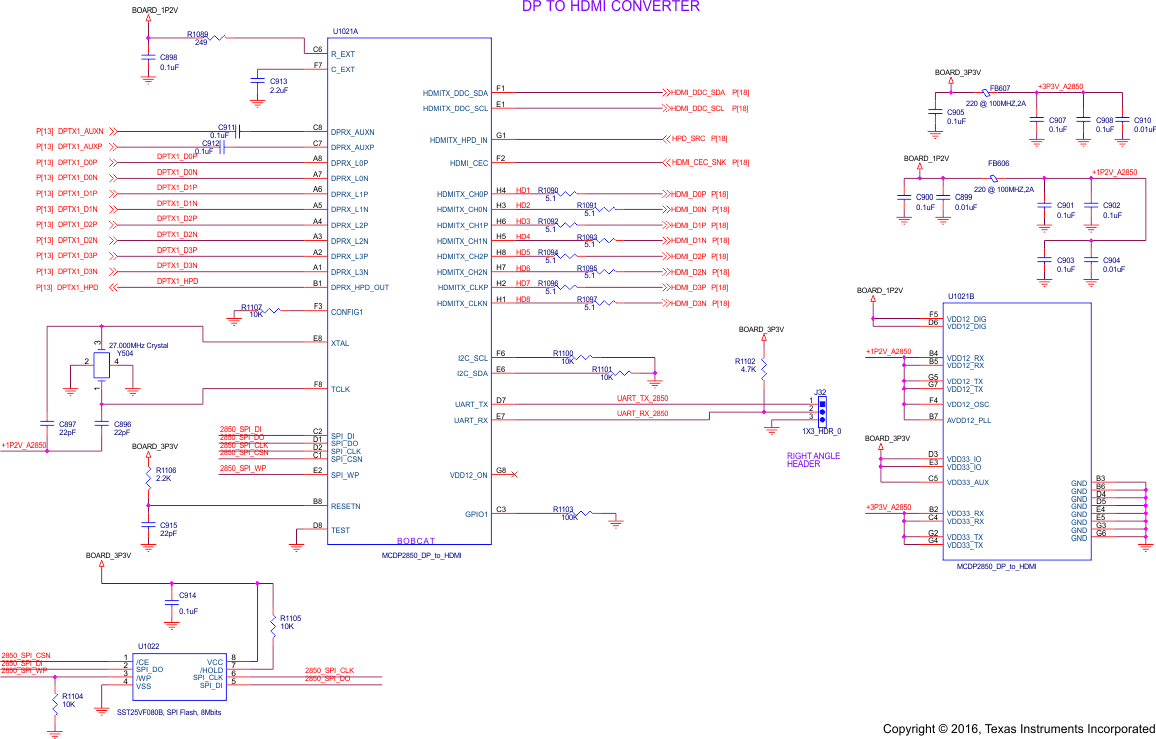

Figure 21. DP to HDMI Schematic

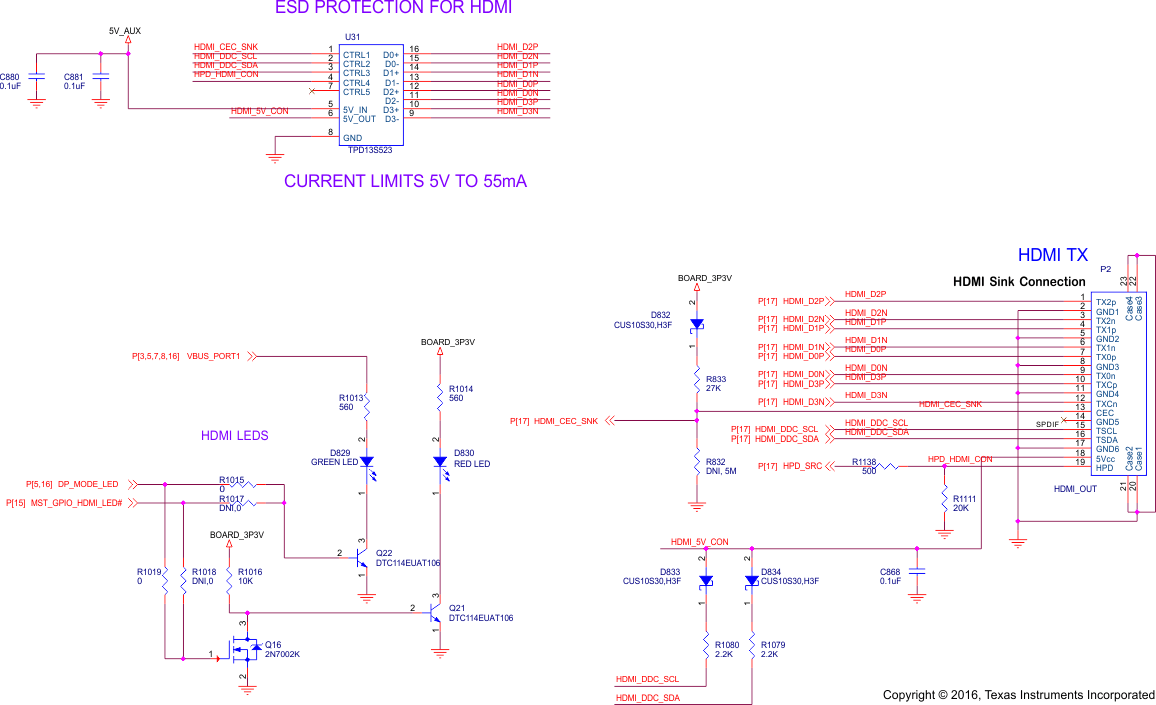

Figure 22. EVM HDMI Connector Schematic

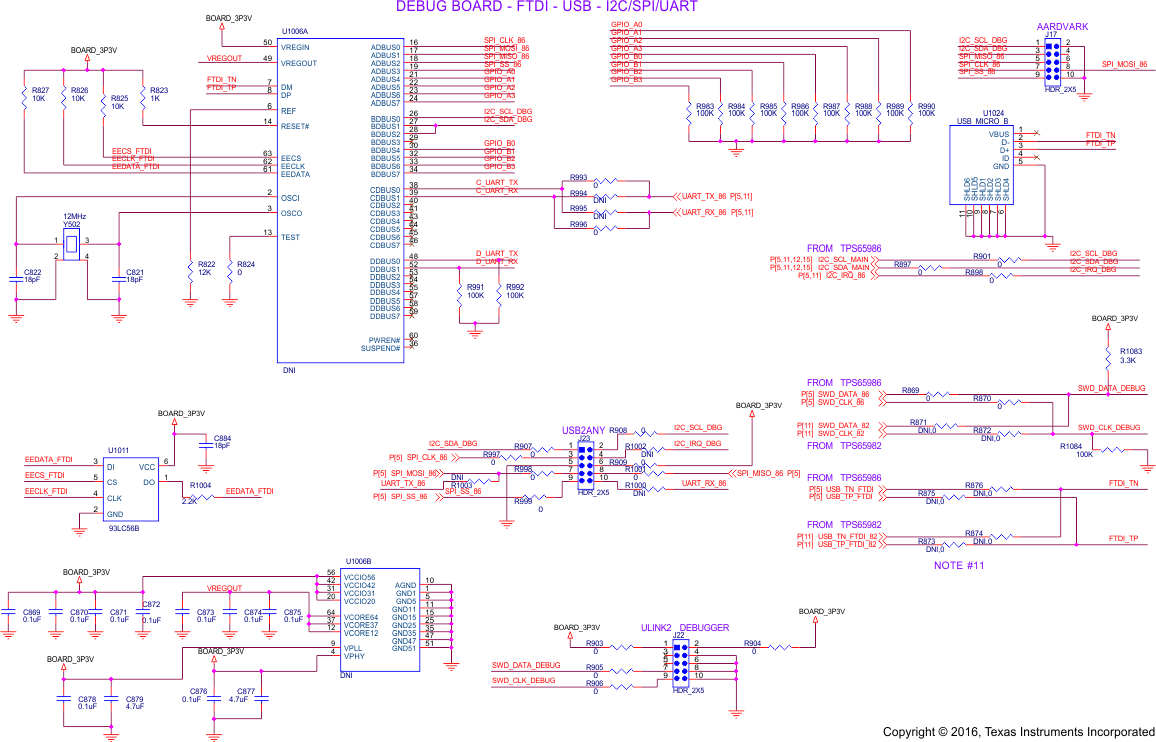

Figure 23. Debug Board Schematic

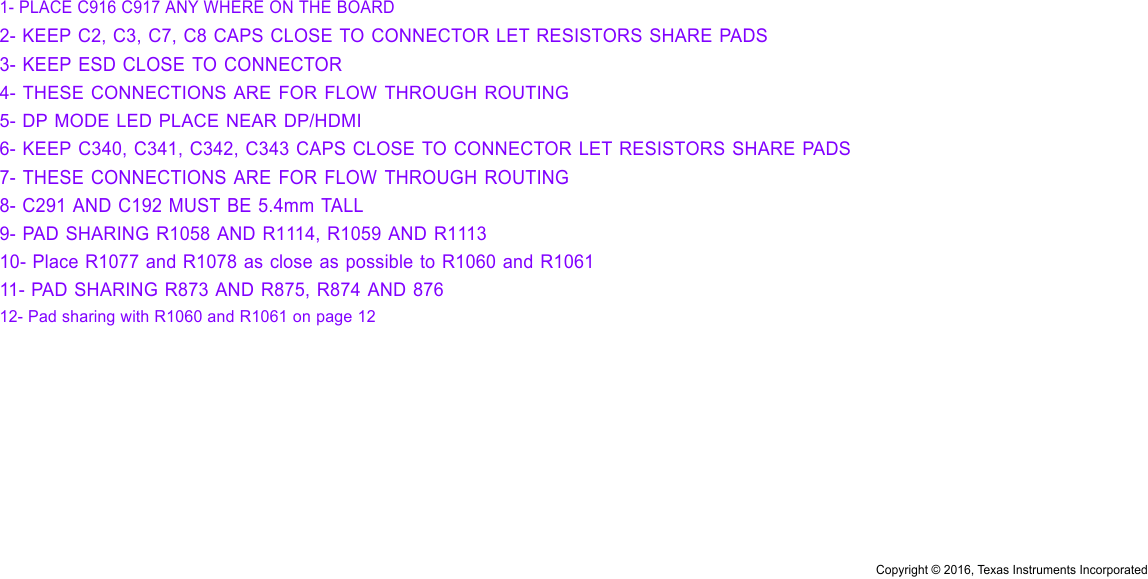

Figure 24. EVM Schematic Fab Notes
