SLLK033 January 2025 THVD9491-SEP
2.3.1 Bias Diagram

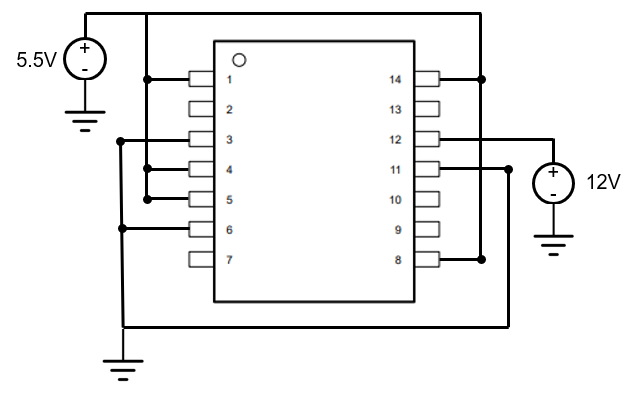

Figure 2-1 shows the bias conditions for each pin during irradiation.
Figure 2-1 THVD9491-SEP Biased DiagramSLLK033 January 2025 THVD9491-SEP
Figure 2-1 shows the bias conditions for each pin during irradiation.
Figure 2-1 THVD9491-SEP Biased Diagram
