SLAAE65 October 2022 DS160PR412 , DS160PR421 , TMUXHS4412
3.4.1 Test Summary
TX presets: BRCM, J16 meets the PCI Express 4.0 requirement.
ISI eye openings:
- BRCM meets all preset requirements
- J16 is able to pass P06, P07, P08, and P09 only. Technically, at least one preset needs to pass to claim compatibility
Figure 3-3 and Figure 3-4 illustrate the test reports for preset and ISI eye opening tests.

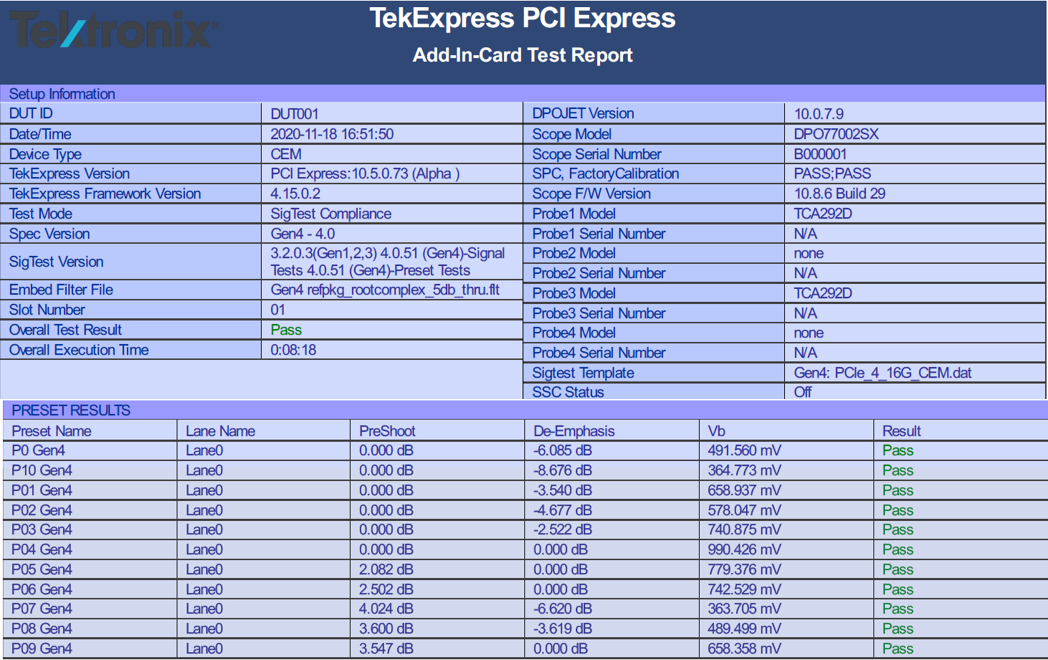

Figure 3-3 Test Report of Presets - 1
Figure 3-4 ISI Test Report
