SLAA899 December 2019 TAS2110 , TAS2555 , TAS2557 , TAS2559 , TAS2560 , TAS2562 , TAS2563 , TAS2564 , TAS2770
6 System Testing
To demonstrate the complete response of the limiter and BOP when in use together the following setup was used.
- VBAT = 5 V - 3.5 V
- Vth MAX = 8 V
- Vth MIN = 4 V
- Inflection point = 4.8 V
- Slope = 4 V/V
- Max Attenuation = -16.5 dB
- BOP threshold = 3.6 V
The supply voltage was ramped up and down repeatedly to produce the following output response.

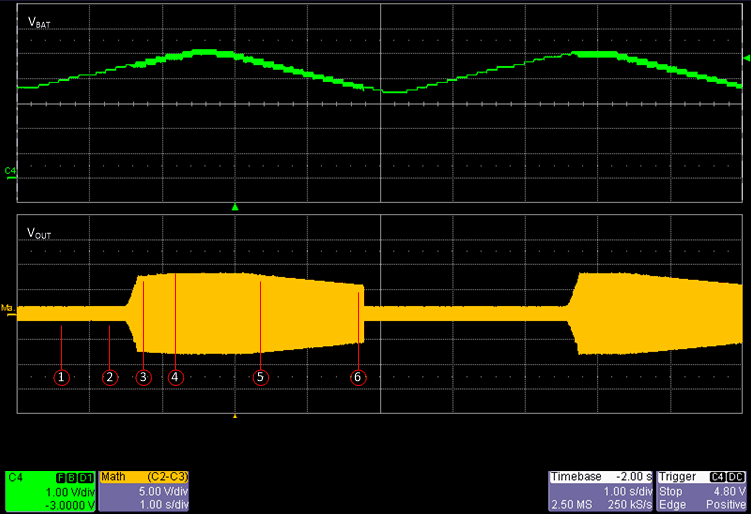

Figure 10. Supply Ramp Test Various operation stages can be observed
