SFFS293 September 2021 TPSM82821 , TPSM82821A , TPSM82822 , TPSM82822A , TPSM82823 , TPSM82823A
1 Overview
This document contains the Pin failure mode analysis (pin FMA) information for the TPSM82821, TPSM82822, TPSM82823, TPSM82821A, TPSM82822A, and TPSM82823A (uSiP package).

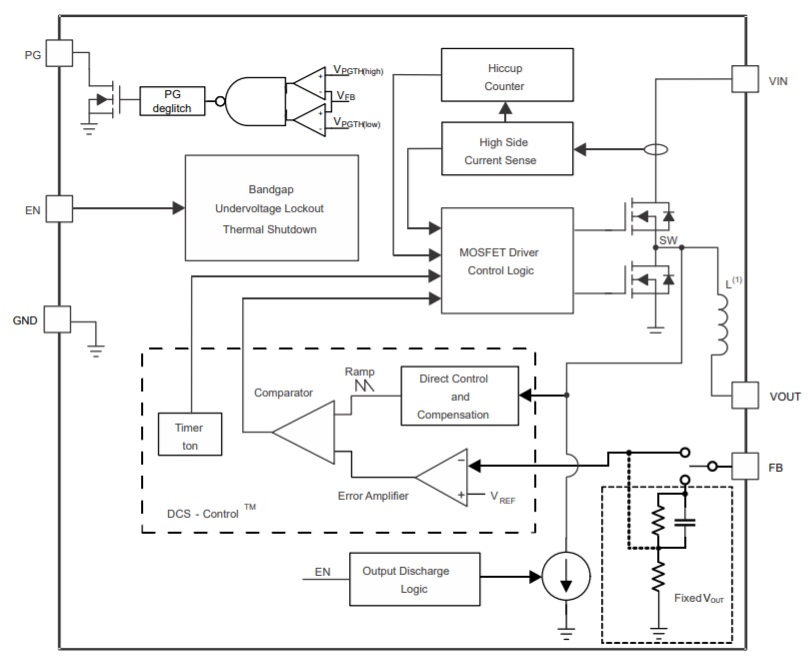

Figure 1-1 shows the device functional block diagram for reference.
Figure 1-1 Functional Block DiagramThe TPSM8282x was developed using a quality-managed development process, but was not developed in accordance with the IEC 61508 or ISO 26262 standards.
