SCLK039 November 2023 SN54SC4T125-SEP
PRODUCTION DATA
2.3.1 Bias Diagram

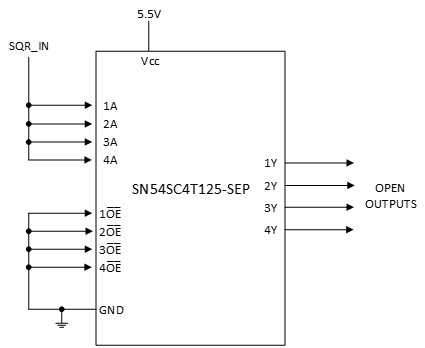

Figure 2-1 shows the bias conditions for each pin during irradiation.
Figure 2-1 SN54SC4T125-SEP Biased DiagramSCLK039 November 2023 SN54SC4T125-SEP
PRODUCTION DATA
Figure 2-1 shows the bias conditions for each pin during irradiation.
Figure 2-1 SN54SC4T125-SEP Biased Diagram
