SCLK035 December 2023 SN54SC3T97-SEP
PRODUCTION DATA
2.3.1 Bias Diagram

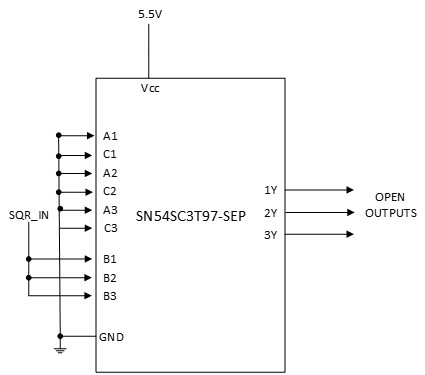

Figure 2-1 shows the bias conditions for each pin during irradiation.
Figure 2-1 SN54SC3T97-SEP Biased DiagramSCLK035 December 2023 SN54SC3T97-SEP
PRODUCTION DATA
Figure 2-1 shows the bias conditions for each pin during irradiation.
Figure 2-1 SN54SC3T97-SEP Biased Diagram
