SCDU027 August 2021
1 Introduction
The TMUXRTJ-RRQEVM evaluation module (EVM) and its intended use is described in this user's guide. This board allows for the quick prototyping and DC characterization of TI’s line of TMUX products that use 20-pin QFN packages (RTJ or RRQ).

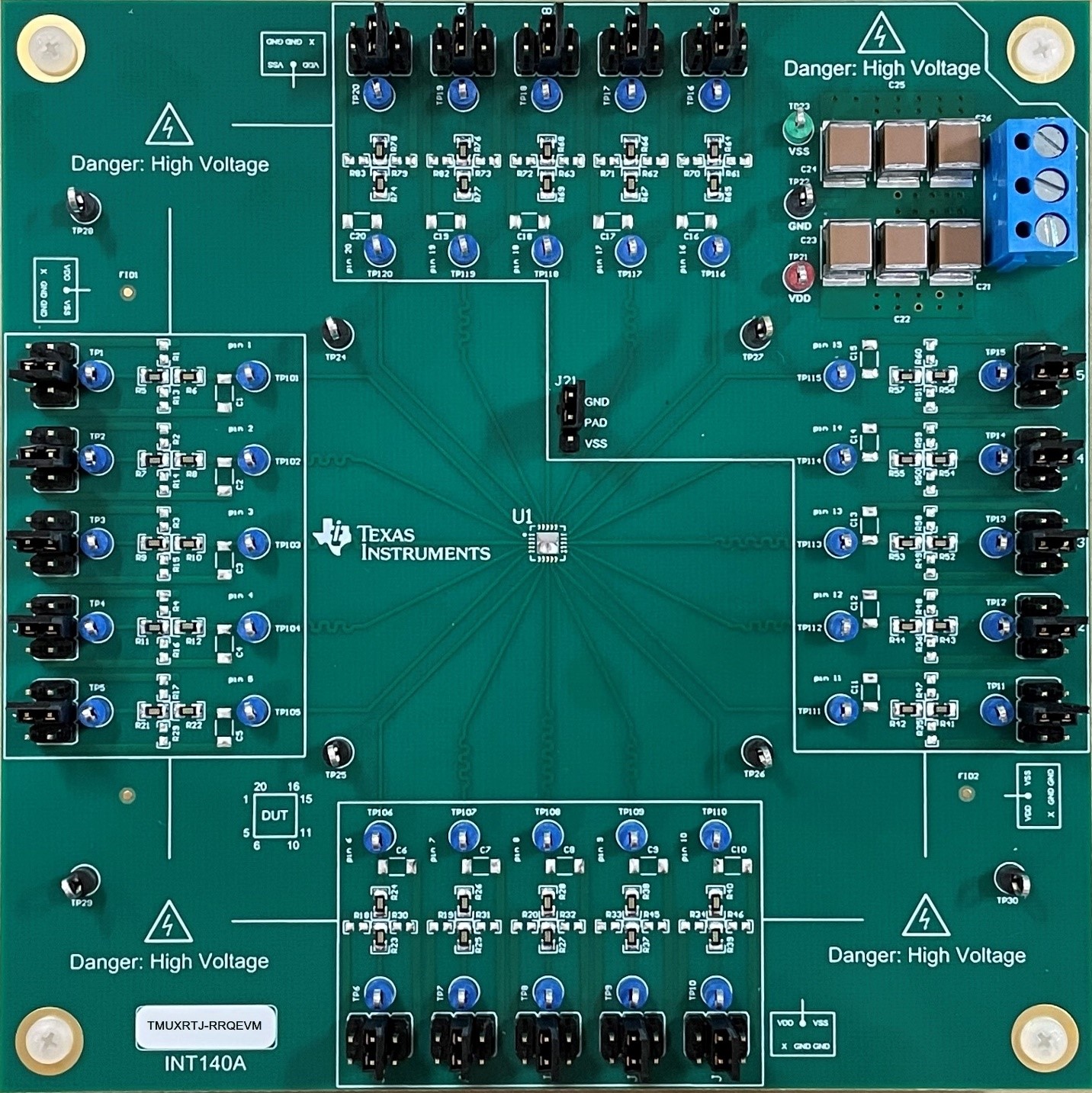

Figure 1-1 TMUXRTJ-RRQEVM Top View

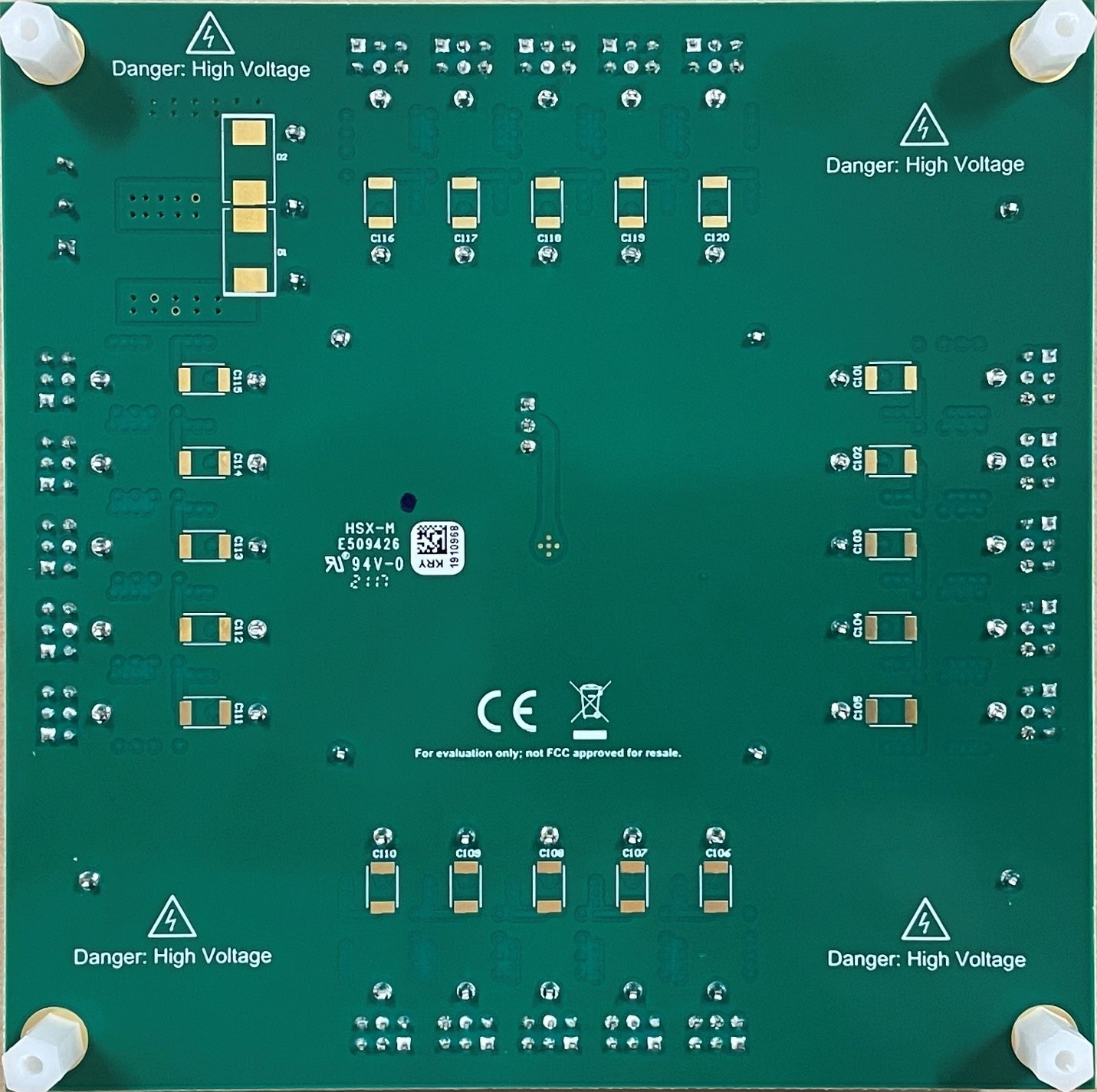

Figure 1-2 TMUXRTJ-RRQEVM Bottom View

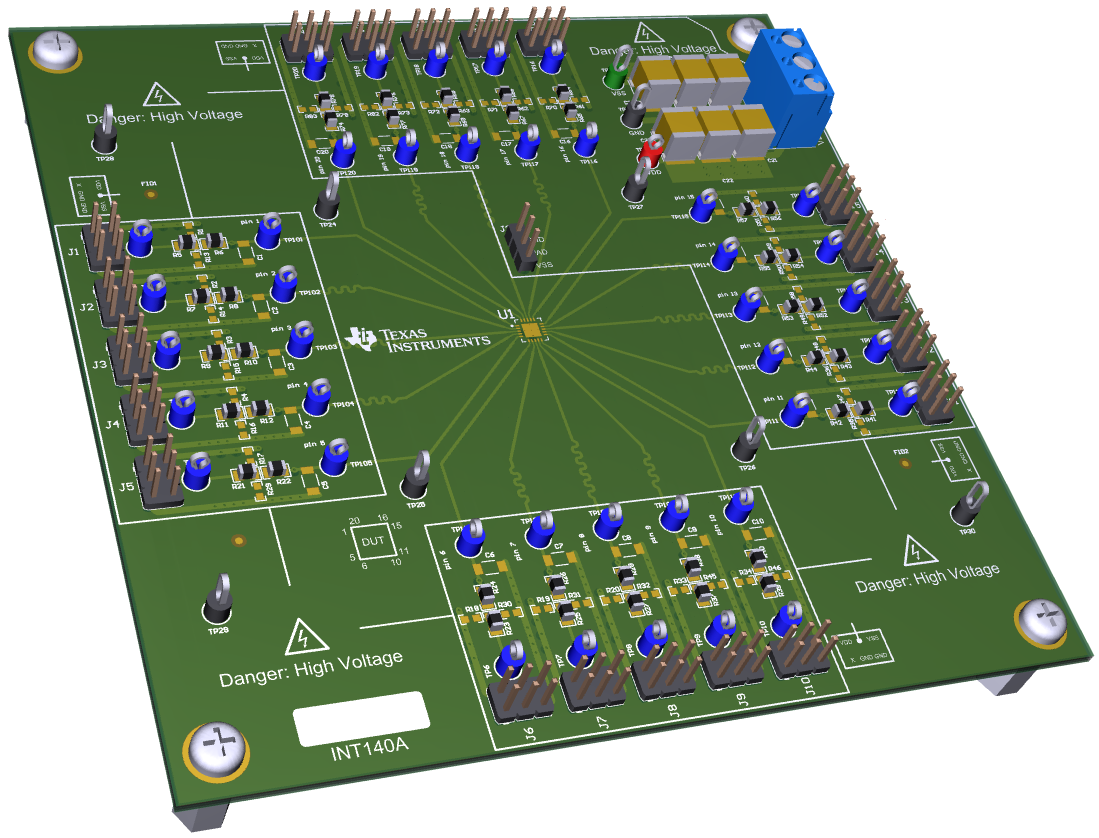

Figure 1-3 TMUXRTJ-RRQEVM 3D View
