SCDU026 July 2021
- Trademarks
- 1 Introduction
- 2 General Texas Instruments High Voltage Evaluation Module (TI HV EVM) User Safety Guidelines
- 3 Information About Cautions and Warnings
- 4 Features
- 5 TMUX-24PW-EVM Header Connections and Test Points
- 6 TMUX-24PW-EVM Setup
- 7 Layout
- 8 Schematics
- 9 Bill of Materials
- 10Revision History
1 Introduction
This user's guide describes the TMUX-24PW-EVM evaluation module (EVM) and its intended use. This board allows for the quick prototyping and DC characterization of TI’s line of TMUX products that use 24-pin TSSOP packages (PW).

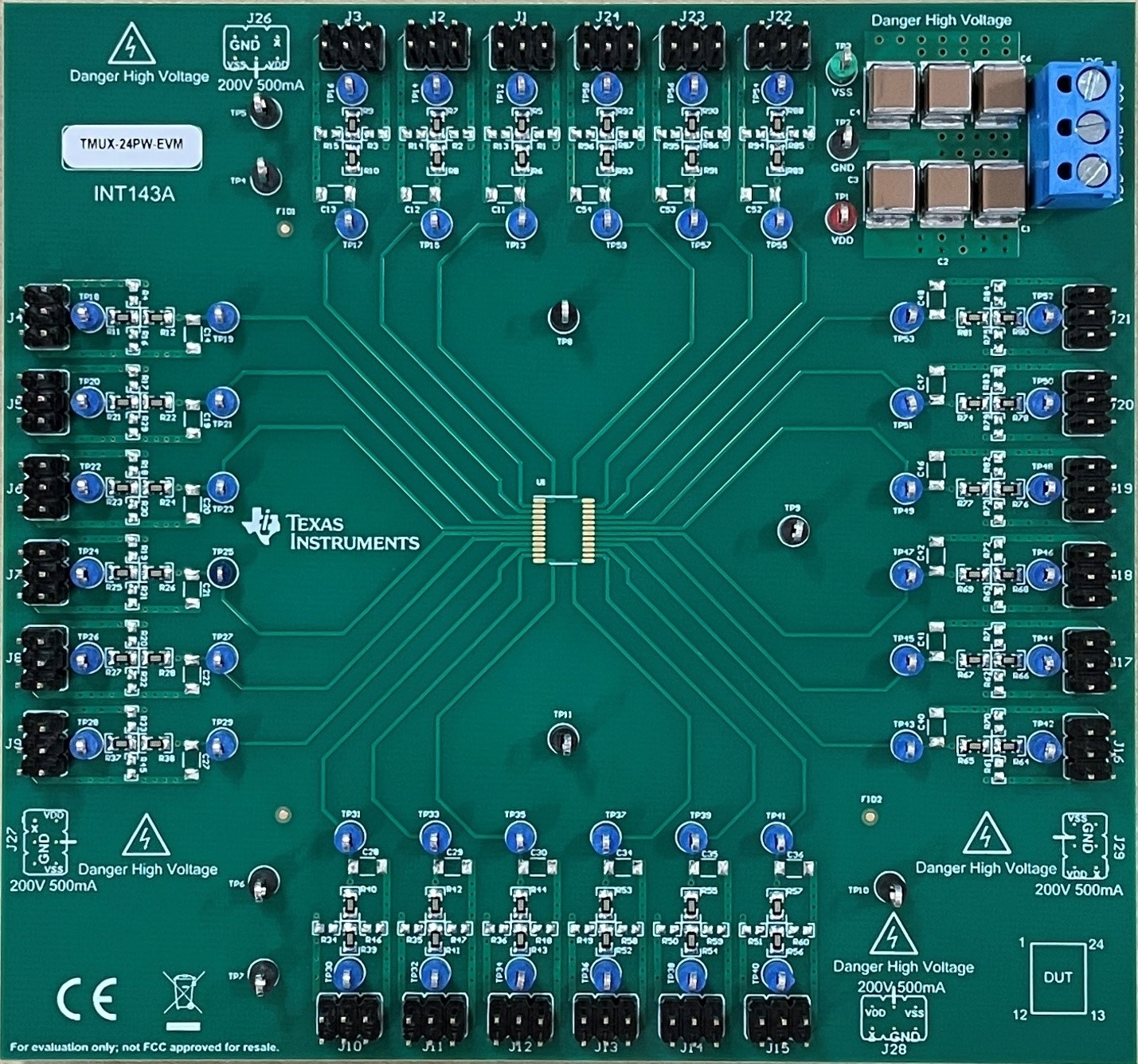

Figure 1-1 TMUX-24PW-EVM Top View

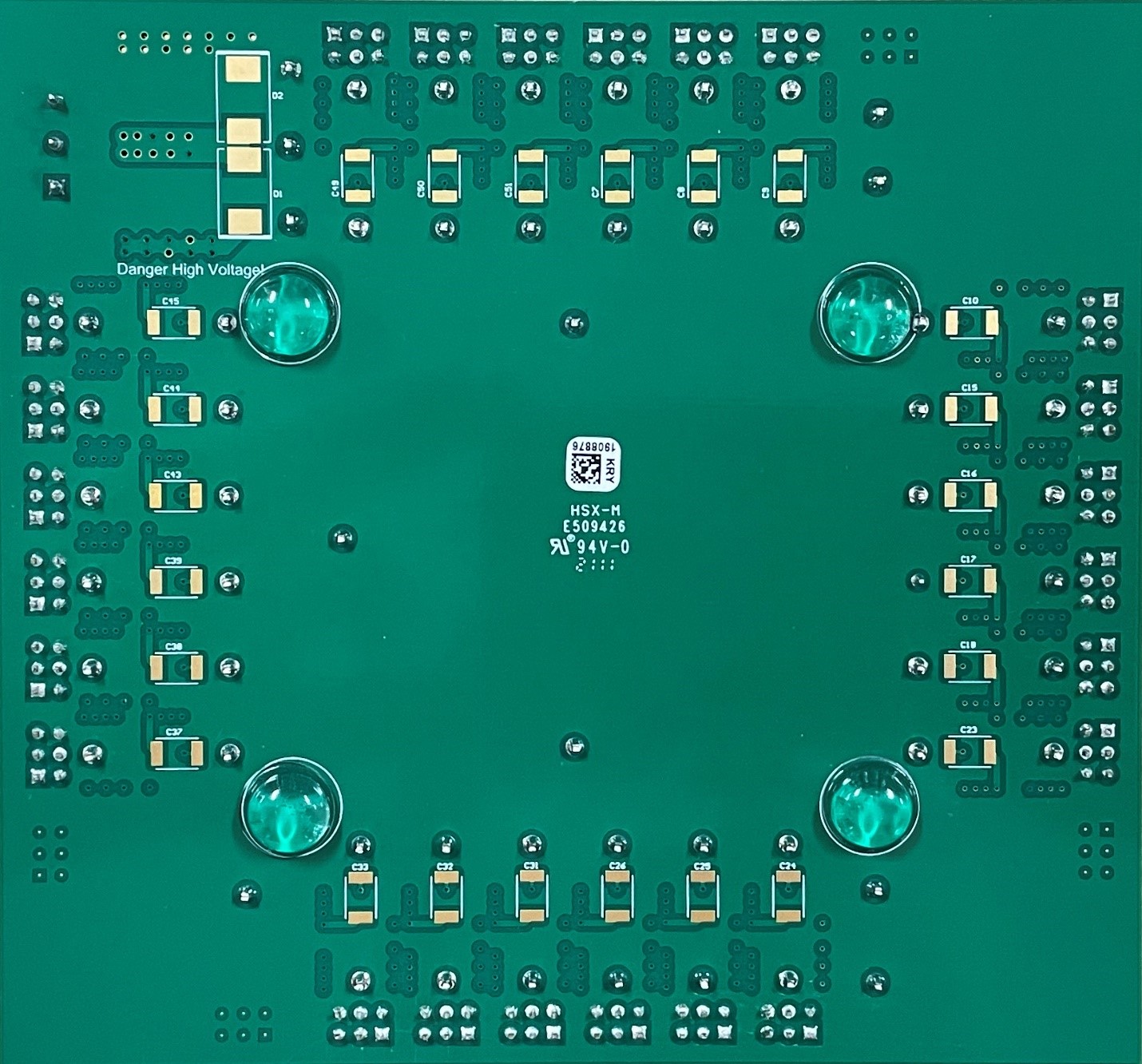

Figure 1-2 TMUX-24PW-EVM Bottom View

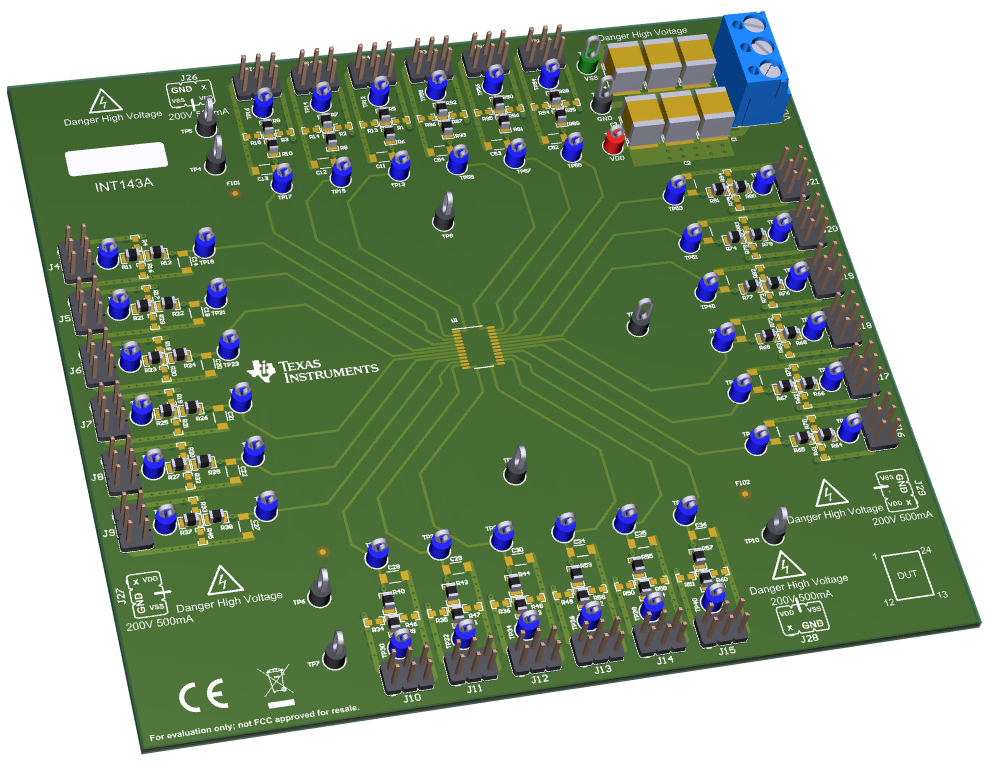

Figure 1-3 TMUX-24PW-EVM 3D View
