5.1.2 PCB Layout
Figure 5-2 and Figure 5-3 show the top and bottom PCB layers, respectively, of the coupon board. Figure 5-4 and Figure 5-5 show the assembly drawings of the top and bottom PCB layers, respectively.

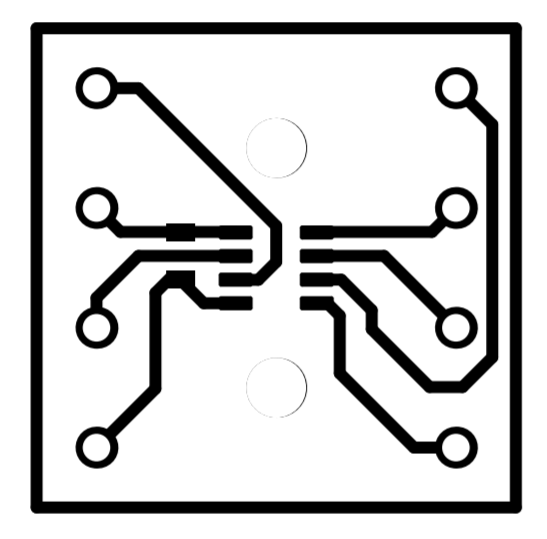

Figure 5-2 PCB Top Layer

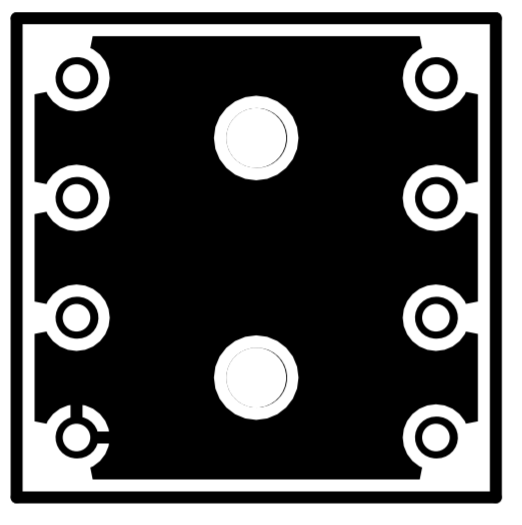

Figure 5-3 PCB Bottom Layer

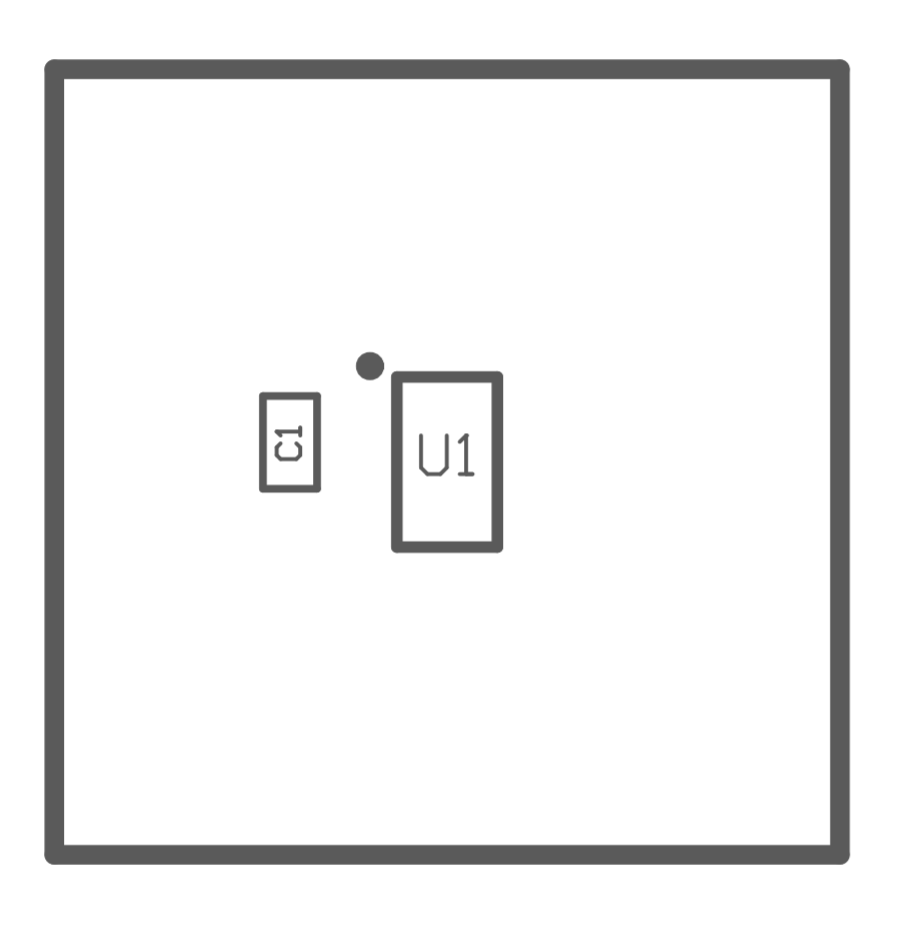

Figure 5-4 PCB Top-Layer Assembly Drawing

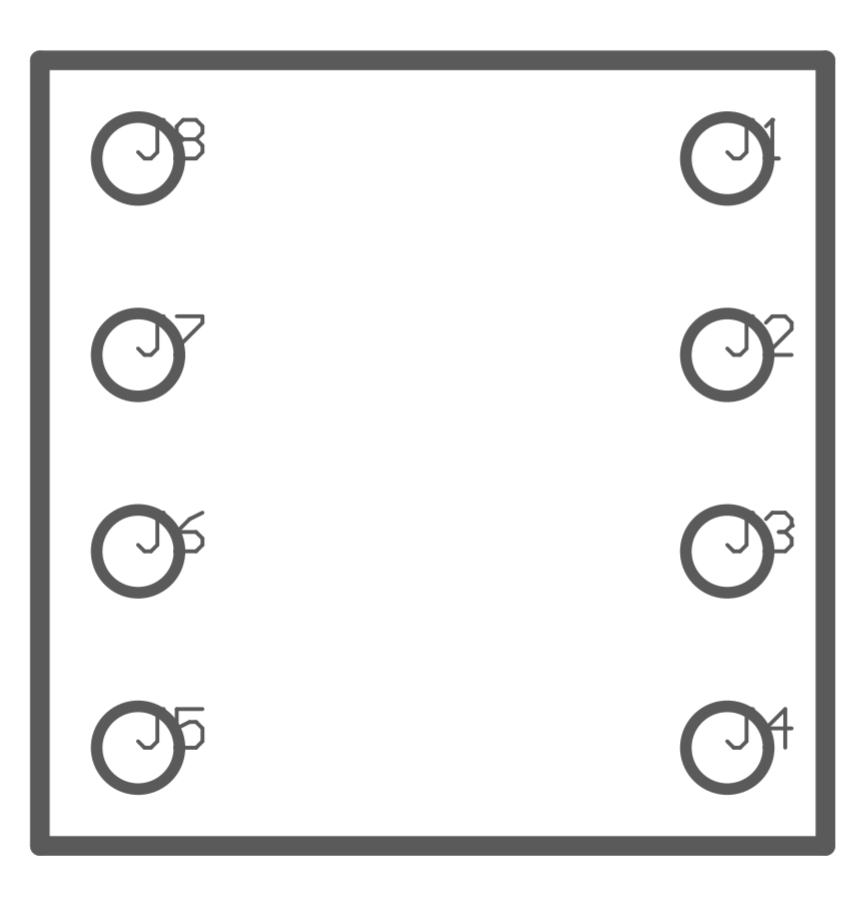

Figure 5-5 PCB Bottom-Layer Assembly Drawing
