SBAU320 July 2018 AMC1035 , AMC1035-Q1
4 Output Reference
The AMC1035EVM provides an output reference voltage of 2.5 V. This is accessible using pin 1 of J1 and can be seen in the figure below. REFOUT is used to provide excitation for RT1 and the maximum output current is +/-5 mA.

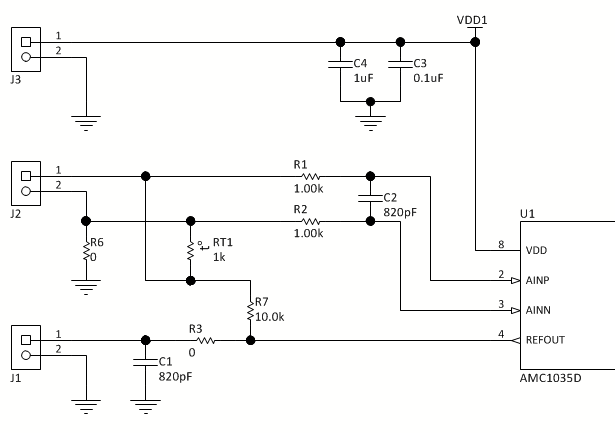

Figure 1. AMC1035EVM Schematic - Analog Interface, Power Supply, Output Reference
