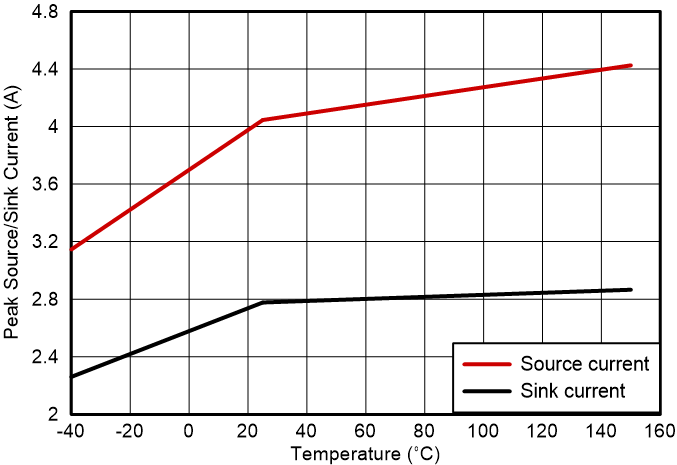

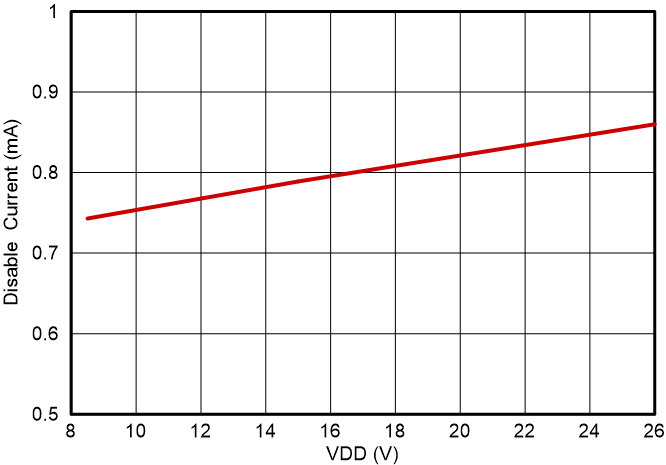

5.8 Typical Characteristics
Unless otherwise specified, VDD=15V, VEE=0V, IN=3.3V, EN=5V, TJ = 25 °C, No load
| VDD = 6.5V |
Figure 5-6 UVLO Threshold
Figure 5-8 Input Pulldown Resistance
Figure 5-10 Enable Pullup
Resistance
Figure 5-12 Output Pulldown Resistance
| CLOAD = 1.8nF |
| CLOAD = 1.8nF |
| CLOAD = 1.8nF |
Figure 5-20 OC
Release Threshold
Figure 5-22 OC to Output Propagation
Delay
| CLOAD = 1μF |
| CLOAD = 1.8nF |
Figure 5-7 Input Threshold
Figure 5-9 Enable Threshold
Figure 5-11 Output Pullup Resistance
| CLOAD = 1.8nF |
| CLOAD = 1.8nF |
| CLOAD = 1.8nF |
| CLOAD = 1.8nF |

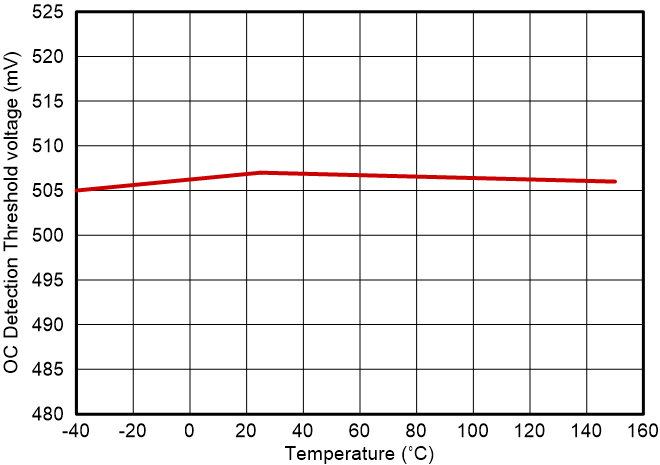

Figure 5-21 OC Detection Threshold
Figure 5-23 OC to
Fault Propagation Delay
