7.1 Propagation Delay, Inverting, and Noninverting Configuration
Figure 7-1 shows the propagation delay OUTH and OUTL for noninverting configurations. Figure 7-2 shows the propagation delay with the inverting configuration. These figures also demonstrate the method used to measure the rise (tr) and fall (tf) times.

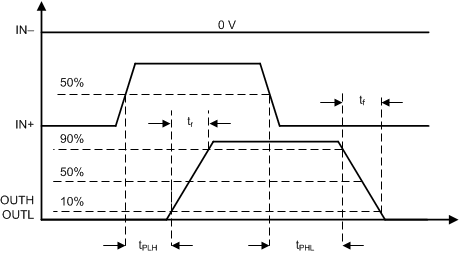

Figure 7-1 OUTH and
OUTL Propagation Delay, Noninverting Configuration

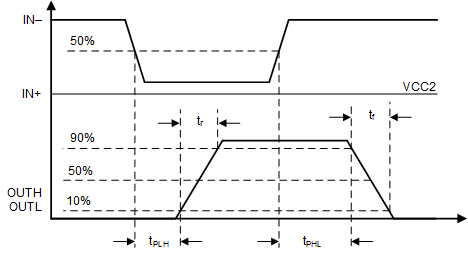

Figure 7-2 OUTH and OUTL Propagation
Delay, Inverting Configuration
