11.3 PCB Material
Use standard FR-4 UL94V-0 printed circuit board. This PCB is preferred over cheaper alternatives because of lower dielectric losses at high frequencies, less moisture absorption, greater strength and stiffness, and the self-extinguishing flammability-characteristics.

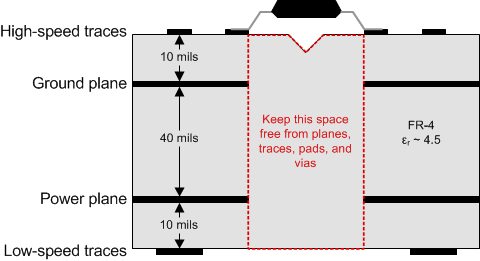

Figure 11-5 shows the recommended layer stack.
Figure 11-5 Recommended Layer Stack
