SLUS515G September 2002 – December 2015 UCC28050 , UCC28051 , UCC38050 , UCC38051

PRODUCTION DATA.

封裝選項

請參考 PDF 數據表獲取器件具體的封裝圖。

機械數據 (封裝 | 引腳)

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)⁽¹⁾

		MIN	MAX	UNIT
Supply voltage, V_CC	(Internally clamped)		20	V
Input current into V_CC clamp	I_DD		30	mA
Input current	ZCD		±10	mA
Gate drive current (peak), I_DRV	DRV		±750	mA
Input voltage, V_CC	VO_SNS, MULTIN, CS		5	V
Maximum negative voltage	VO_SNS, MULTIN, DRV, CS		–0.5	V
Power dissipation at T_A = 50°C	D package		650	mW
Power dissipation at T_A = 50°C	P package		1	W
Operating junction temperature range, T_J		–55	150	°C
Storage temperature, T_stg		–65	150	°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds			300	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

6.2 ESD Ratings

			VALUE	UNIT
SOIC PACKAGE
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	±2000	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾	±500	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

		MIN	NOM	MAX	UNIT
VCC input voltage from a low-impedance source		VCC_OFF + 1 V		18	V
Operating junction temperature, T_J		–40		125	°C

6.4 Thermal Information

THERMAL METRIC⁽¹⁾		UCC2805x, UCC3805x		UNIT
		D (SOIC)	P (PDIP)
		8 PINS	8 PINS
R_θJA	Junction-to-ambient thermal resistance	113.6	55.6	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	60.3	45.5	°C/W
R_θJB	Junction-to-board thermal resistance	54.3	32.7	°C/W
ψ_JT	Junction-to-top characterization parameter	14	23.1	°C/W
ψ_JB	Junction-to-board characterization parameter	53.8	32.6	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

6.5 Electrical Characteristics

T_A = 0°C to 70°C for the UCC3805x, –40°C to +105°C for the UCC2805x, T_A = T_J, V_CC = 12 V.

PARAMETER			TEST CONDITIONS	MIN	TYP	MAX	UNIT
SUPPLY
	V_CC operating voltage					18	V
	Shunt voltage		I_VCC = 25 mA	18	19	20	V

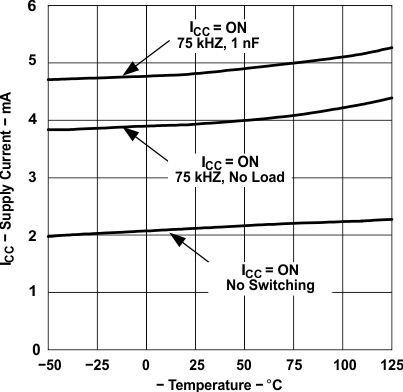

	Supply current, off		V_CC = V_CC turnon threshold –300 mV		75	125	µA
	Supply current, disabled		VO_SNS = 0.5 V		2	4	mA
	Supply current, on		75 kHz, C_L = 0 nF		4	6	mA
	Supply current, dynamic operating		75 kHz, C_L = 1 nF		5	7	mA

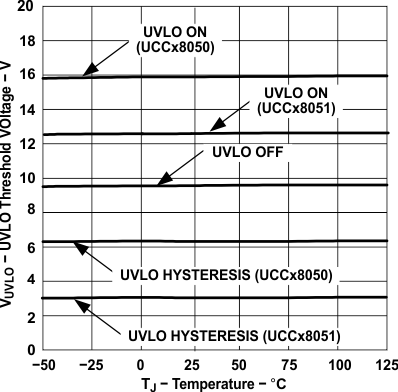

UVLO
	V_CC turnon threshold	UCCx8050		15.4	15.8	16.4	V
	V_CC turnon threshold	UCCx8051		12	12.5	13	V
	V_CC turnoff threshold			9.4	9.7	10	V
	UVLO hysteresis	UCCx8050		5.8	6.3	6.8	V
	UVLO hysteresis	UCCx8051		2.3	2.8	3.3	V
VOLTAGE AMPLIFIER (VO_SNS)
	Input voltage (V_REF)	UCC3805x		2.46	2.5	2.54	V
	Input voltage (V_REF)	UCC2805x		2.45	2.5	2.55	V
	Input bias current					0.5	µA
	V_COMP high		VO_SNS = 2.1 V	4.5		5.5	V
	V_COMP low		VO_SNS = 2.55 V		1.8	2.45	V
	gM		T_J = 25 °C, V_COMP = 3.5 V	60	90	130	µS
	Source current	UCCx8050	VO_SNS = 2.1 V, V_COMP = 3.5 V	–0.2	–0.1		mA
	Source current	UCCx8051	VO_SNS = 2.1 V, V_COMP = 2.5 V	–200	–300	–400	µA
	Sink current		VO_SNS = 2.7 V, V_COMP = 3.5 V	0.2	1		mA
OVER VOLTAGE PROTECTION / ENABLE
	Overvoltage reference	UCCx8050		VREF + 0.165	VREF + 0.19	VREF + 0.21	V
	Overvoltage reference	UCCx8051		VREF + 0.15	VREF + 0.18	VREF + 0.21	V
	Hysteresis	UCCx8050		175	200	225	mV
	Hysteresis	UCCx8051		150	180	210	mV
	Enable threshold	UCCx8050		0.62	0.67	0.72	V
	Enable threshold	UCCx8051		0.18	0.23	0.28	V
	Enable hysteresis			0.05	0.1	0.2	V
MULTIPLIER
	Multiplier gain constant (k)		V_MULTIN = 0.5 V, COMP = 3.5 V	0.43	0.65	0.87	1/V
	Dynamic input range, V_MULTIN INPUT			0 to 2.5	0 to 3.5		V
	Dynamic input range, COMP INPUT			2.5 to 3.8	2.5 to 4		V
	Input bias current, MULTIN				0.1	1	µA
ZERO POWER
	Zero power comparator threshold⁽¹⁾		Measured on V_COMP	2.1	2.3	2.5	V
ZERO CURRENT DETECT
	Input threshold (rising edge)⁽¹⁾			1.5	1.7	2	V
	Hysteresis⁽¹⁾			250	350	450	mV
	Input high clamp		I = 3 mA		5	6	V
	Input low clamp		I = −3 mA	0.3	0.65	0.9	V
	Restart time delay			200	400		µs
CURRENT SENSE COMPARATOR
	Input bias current		CS = 0 V		0.1	1	µA
	Input offset voltage⁽¹⁾			–10		10	mV

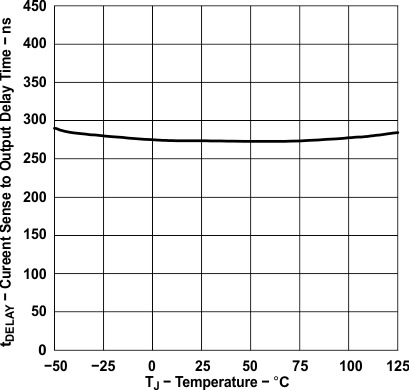

	Delay to output		CS to DRV		300	450	ns
	Maximum current sense threshold voltage			1.55	1.7	1.8	V
PFC GATE DRIVER
	GT1 pull-up resistance		I_OUT = –125 mA		5	12	Ω
	GT1 pull-down resistance		I_OUT = 125 mA		2	10	Ω
	GT1 output rise time		C_LOAD = 1 nF, R_LOAD = 10 Ω		25	75	ns
	GT1 output fall time		C_LOAD = 1 nF, R_LOAD = 10 Ω		10	50	ns
