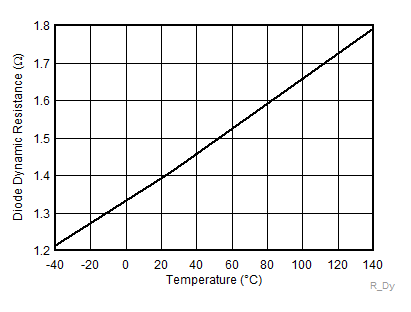

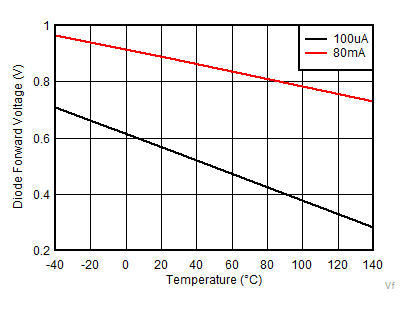

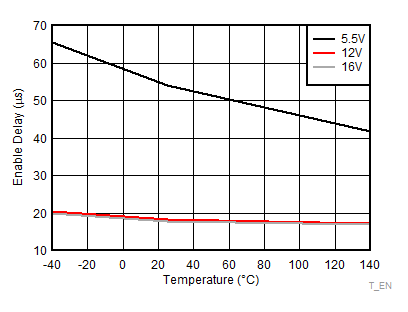

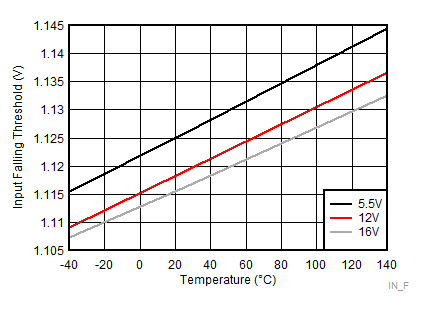

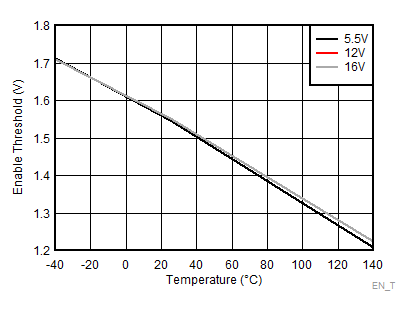

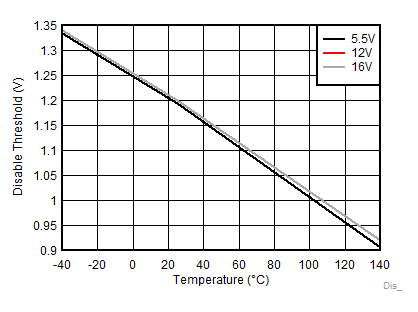

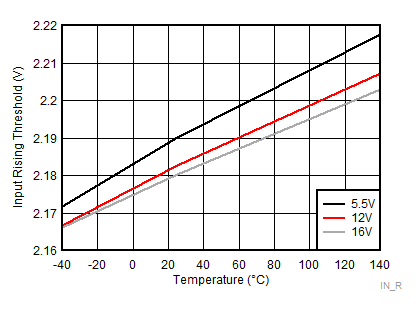

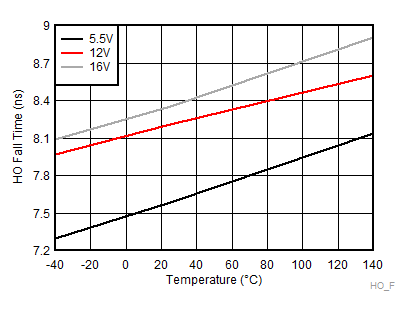

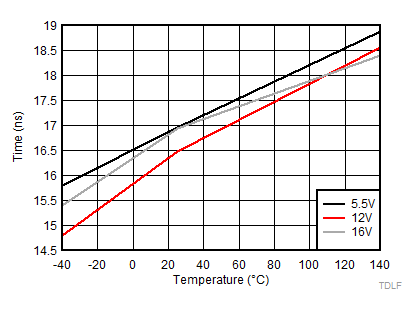

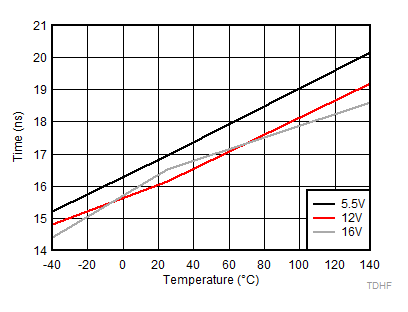

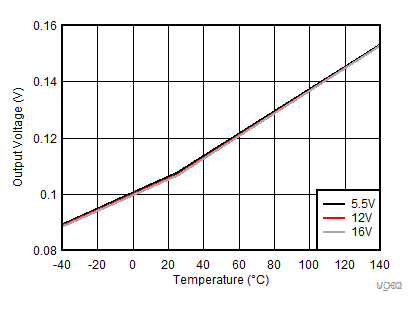

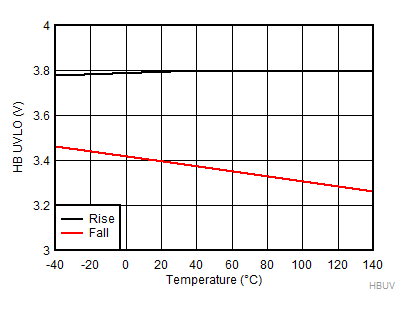

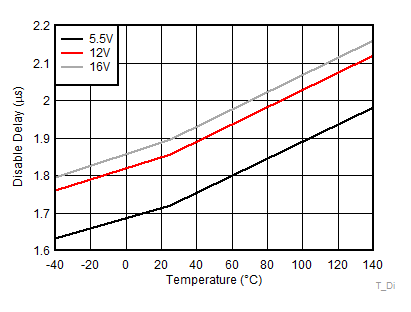

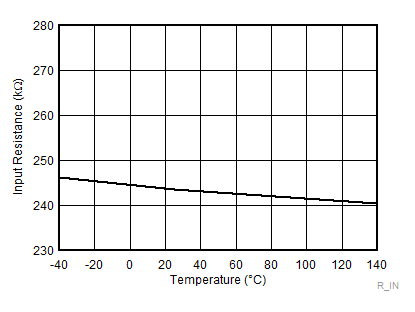

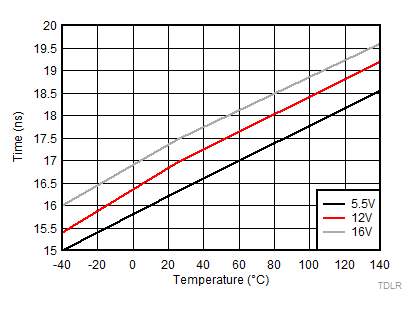

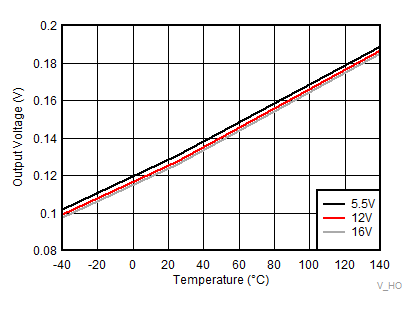

6.8 Typical Characteristics
Unless otherwise specified VVDD=VHB = 12 V, VHS=VVSS = 0 V, No load on outputs
A.

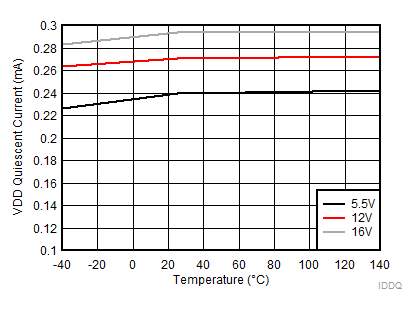

Figure 6-1 VDD Quiescent Current| VHI = VLI = 0 V |
A.

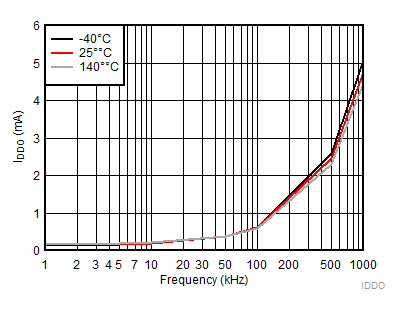

Figure 6-3 VDD Operating Current| CL = 0 F | VDD =VHB= 12V |
A.

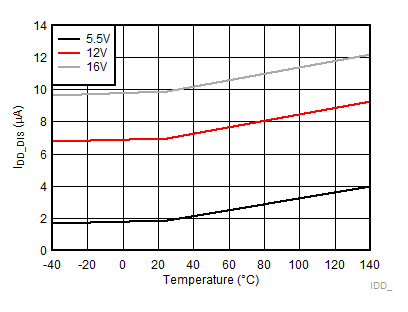

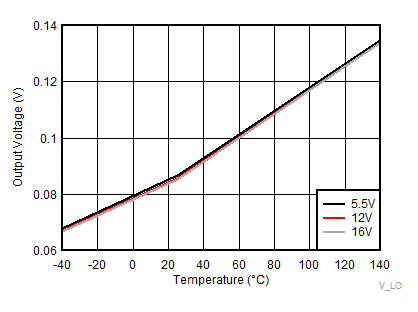

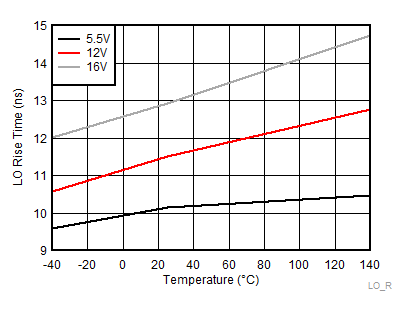

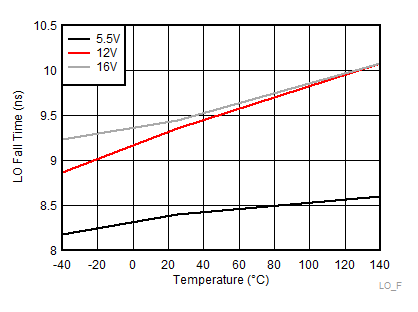

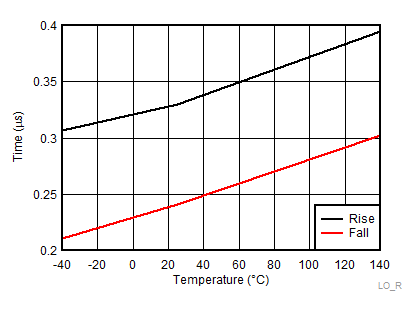

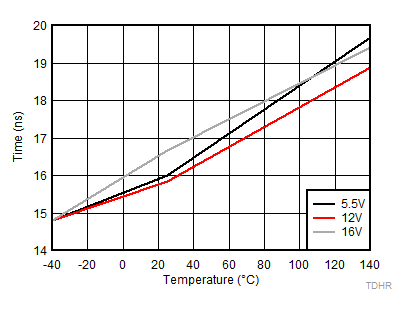

Figure 6-5 VDD Current When Disabled| CL = 0 F | VEN = 0 V |
| IO=-100mA |
| IO=-100mA |
| CL=1800pF |
| CL=1800pF |
| CL=100nF |
| CL= No Load |
| CL= No Load |
A.

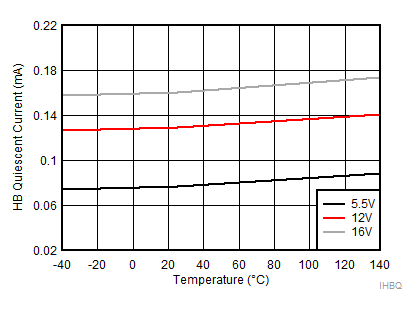

Figure 6-2 HB Quiescent Current| VHI = VLI = 0 V |
A.

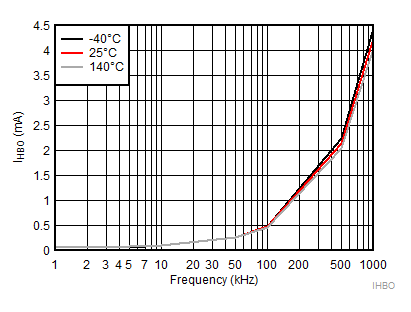

Figure 6-4 HB Operating Current| CL = 0 F | VDD =VHB= 12V |
A.

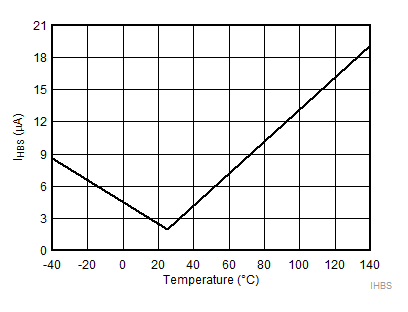

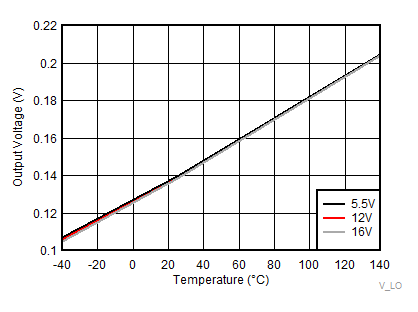

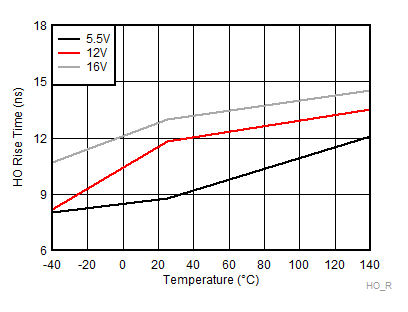

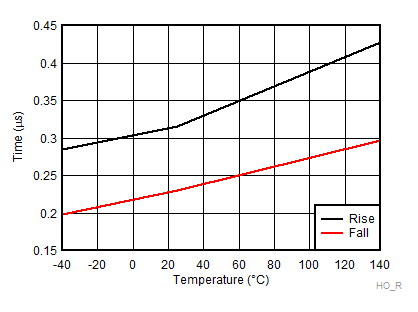

Figure 6-6 HB to VSS Quiescent Current| VHB=VHS=100V |
| IO=100mA |
| IO=100mA |
| CL=1800pF |
| CL=1800pF |
| CL=100nF |
| CL=No Load |
| CL= No Load |
