5.11 Typical Characteristics

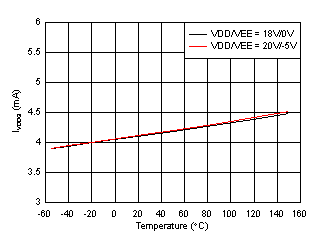

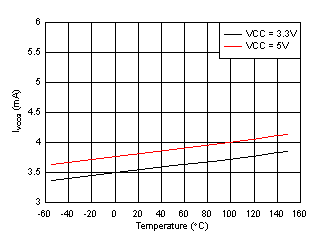

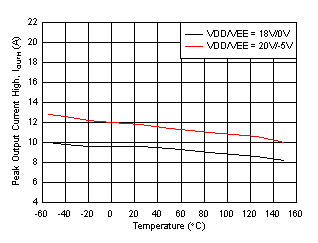

Figure 5-4 Output High
Drive Current vs Temperature

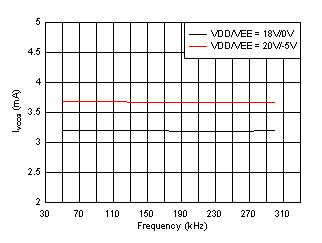

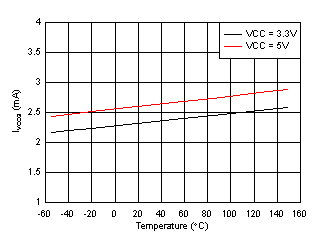

| IN+ = High | IN- = Low |
| IN+ = Low | IN- = Low |

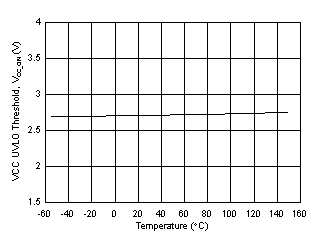

Figure 5-12 VCC UVLO vs
Temperature

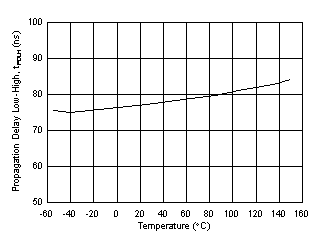

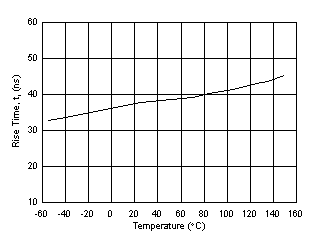

| VCC = 3.3V | VDD=18V | CL = 100pF |
| RON = 0Ω | ROFF = 0Ω |
| VCC = 3.3 V | VDD=18 V | CL = 10 nF |
| RON = 0 Ω | ROFF = 0 Ω |

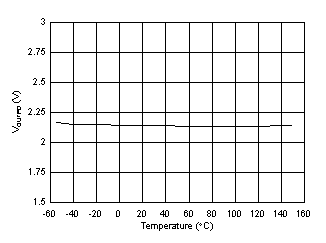

Figure 5-18 VOUTPD Output Active Pulldown Voltage vs Temperature

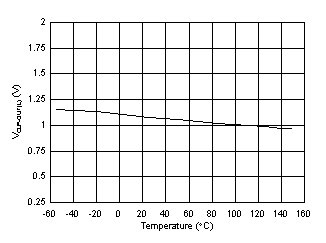

Figure 5-20 VCLP-OUT(L) Short Circuit Clamping Voltage vs Temperature

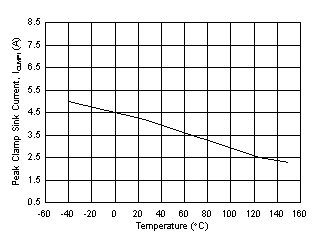

Figure 5-22 ICLMPI Miller Clamp Sink Current vs Temperature

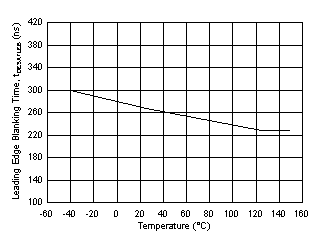

Figure 5-24 tDESATLEB DESAT Leading Edge Blanking Time vs Temperature

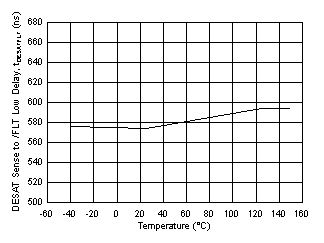

Figure 5-26 tDESATFLT DESAT Sense to /FLT Low Delay Time vs Temperature

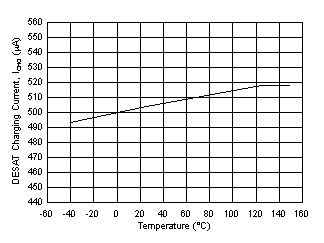

Figure 5-28 ICHG
DESAT Charging Current vs Temperature
Figure 5-5 Output Low
Driver Current vs Temperature

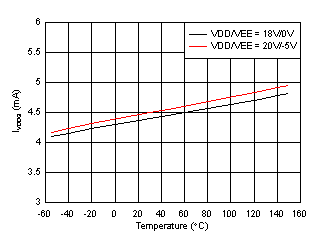

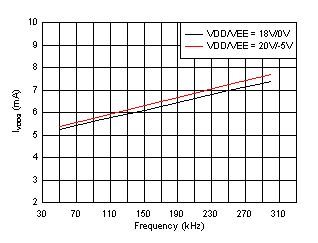

| IN+ = Low | IN- = Low |
| IN+ = High | IN- = Low |

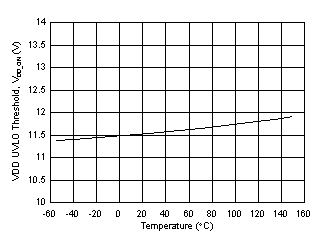

Figure 5-13 VDD UVLO vs
Temperature

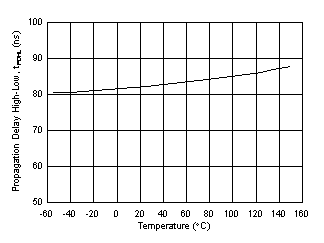

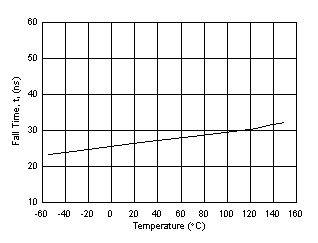

| VCC = 3.3 V | VDD=18 V | CL = 100 pF |
| RON = 0 Ω | ROFF = 0 Ω |
| VCC = 3.3 V | VDD=18 V | CL = 10 nF |
| RON = 0 Ω | ROFF = 0 Ω |

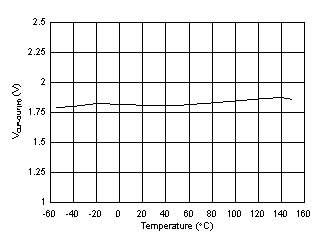

Figure 5-19 VCLP-OUT(H) Short Circuit Clamping Voltage vs Temperature

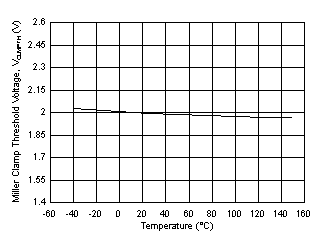

Figure 5-21 VCLMPTH Miller Clamp Threshold Voltage vs Temperature

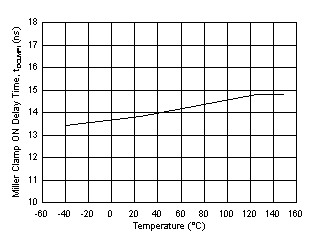

Figure 5-23 tDCLMPI Miller Clamp ON Delay Time vs Temperature

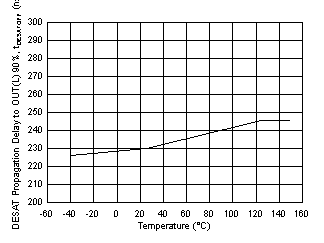

Figure 5-25 tDESATOFF DESAT Propagation Delay to OUT(L) 90% vs Temperature

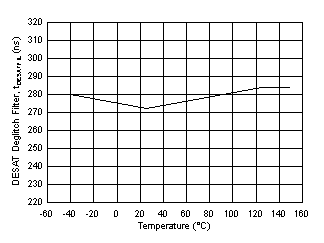

Figure 5-27 tDESATFIL DESAT Deglitch Filter vs Temperature

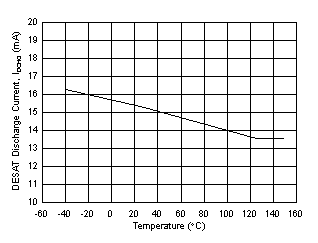

Figure 5-29 IDCHG DESAT Discharge Current vs Temperature
