6.12 Typical Characteristics
VDDA = VDDB = 12 V, VCCI = 3.3 V, TA = 25°C, No load unless otherwise noted.

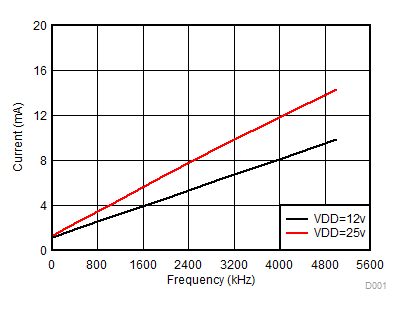

Figure 4. Per Channel Current Consumption vs. Frequency (No Load, VDD = 12 V or 25 V)

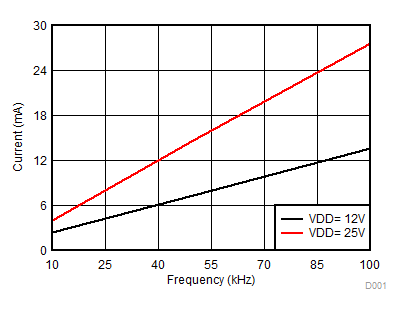

Figure 6. Per Channel Current Consumption (IVDDA/B) vs. Frequency (10-nF Load, VDD = 12 V or 25 V)
Figure 8. Per Channel (IVDDA/B) Quiescent Supply Current vs Temperature (No Load, Input Low, No Switching)
A.

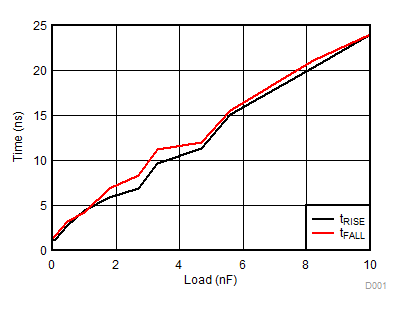

Figure 10. Rising and Falling Times vs. Load (VDD = 12 V)

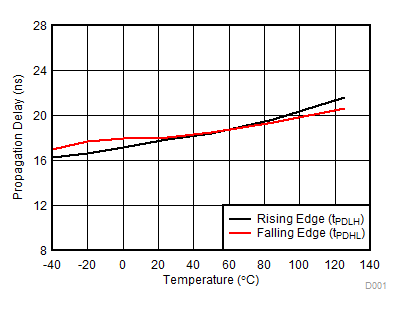

Figure 12. Propagation Delay vs. Temperature
A.

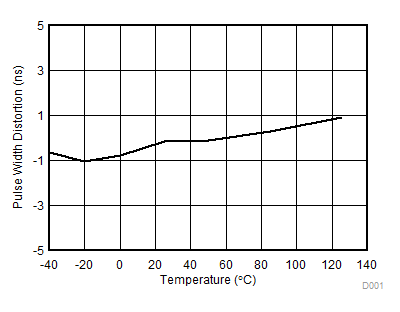

Figure 14. Pulse Width Distortion vs. Temperature

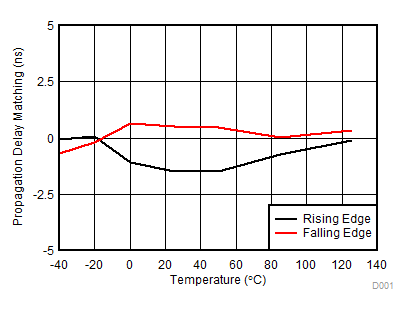

Figure 16. Propagation Delay Matching (tDM) vs. Temperature

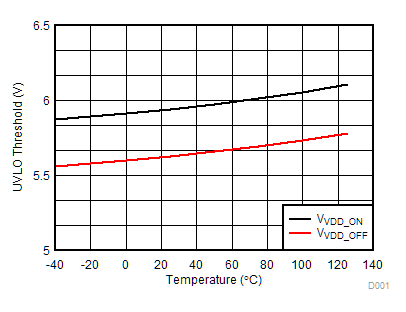

Figure 18. VDD UVLO Threshold vs. Temperature

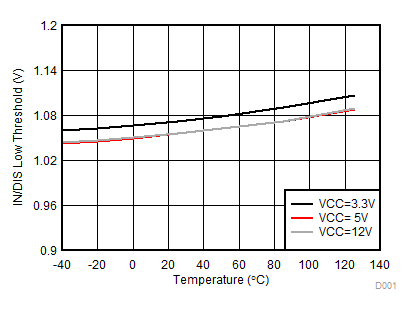

Figure 20. IN/DIS Low Threshold

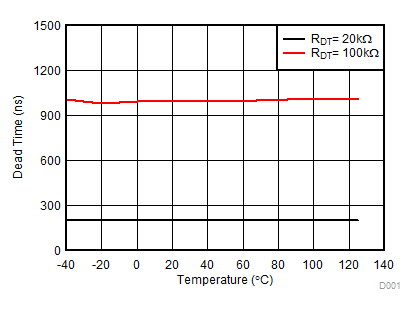

Figure 22. Dead Time vs. Temperature (with RDT = 20 kΩ and 100 kΩ)

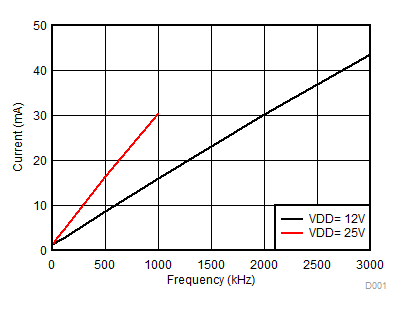

Figure 5. Per Channel Current Consumption (IVDDA/B) vs. Frequency (1-nF Load, VDD = 12 V or 25 V)
Figure 7. Per Channel (IVDDA/B) Supply Current Vs. Temperature (No Load, Different Switching Frequencies)
A.

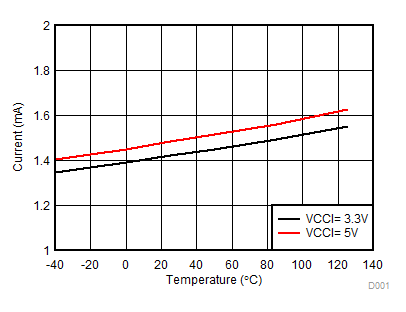

Figure 9. IVCCI Quiescent Supply Current vs Temperature (No Load, Input Low, No Switching)

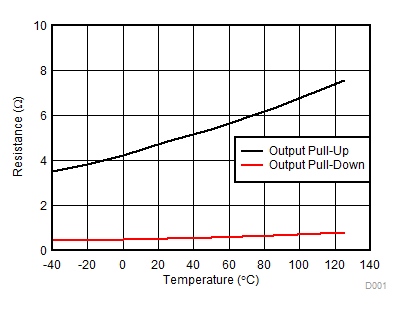

Figure 11. Output Resistance vs. Temperature

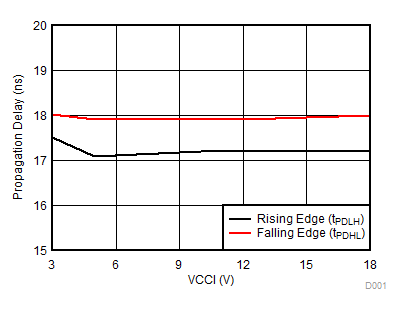

Figure 13. Propagation Delay vs. VCCI

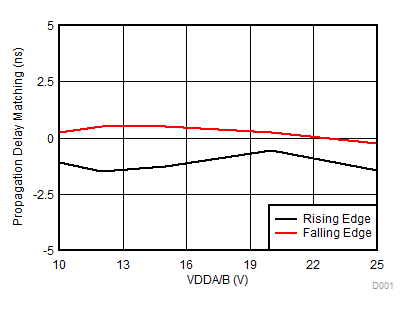

Figure 15. Propagation Delay Matching (tDM) vs. VDD
Figure 17. VDD UVLO Hysteresis vs. Temperature

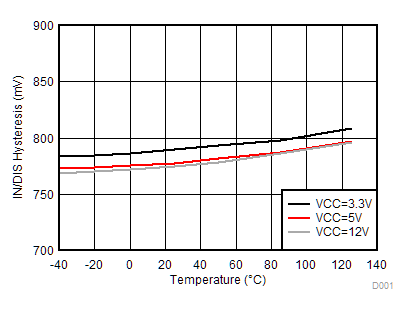

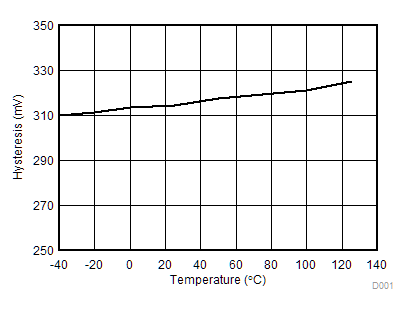

Figure 19. IN/DIS Hysteresis vs. Temperature

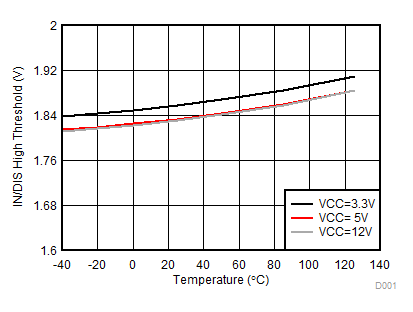

Figure 21. IN/DIS High Threshold

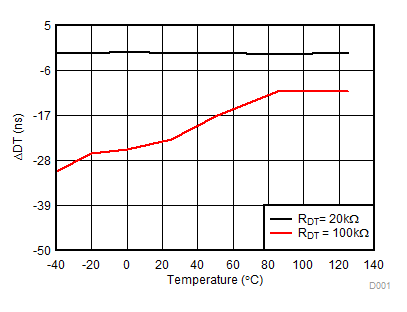

Figure 23. Dead Time Matching vs. Temperature (with RDT = 20 kΩ and 100 kΩ)
