3 說明
TXU0204 是一款 4 位雙電源同相定向電壓電平轉換器件。Ax 引腳以 VCCA 邏輯電平為基準，OE 引腳可以 VCCA 或 VCCB 邏輯電平為基準，Bx 引腳以 VCCB 邏輯電平為基準。A 端口能夠接受 1.1V 至 5.5V 的輸入電壓，而 B 端口也可接受 1.1V 至 5.5V 的輸入電壓。如果 OE 相對于任一電源設為高電平，可能會發生從 A 到 B 或從 B 到 A 的定向數據傳輸。OE 設為低電平時，所有輸出引腳均處于高阻抗狀態。請參閱器件功能模式，簡要了解控制邏輯運行。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TXU0204BQA | VQFN (14) | 3.00mm × 2.50mm |
| TXU0204PW | TSSOP (14) | 5.00mm × 4.40mm |
| TXU0204RUT | UQFN (12) | 2.00mm × 1.70mm |
| TXU0204DTR | X2SON (12) | 1.70 mm × 1.00 mm |
(1) 如需了解所有在售封裝，請參閱數據表末尾的可訂購產品附錄。

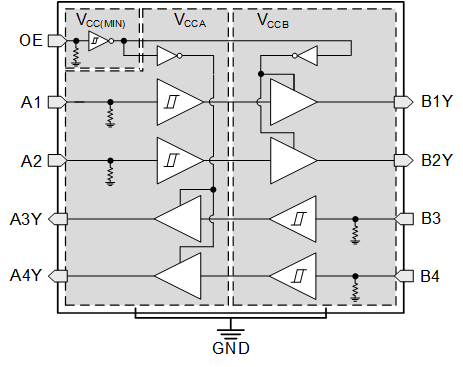

TXU0204 功能方框圖
