7 Parameter Measurement Information
Channel ON, RON = V/ISINK
Figure 2. ON-State Resistance (RON)

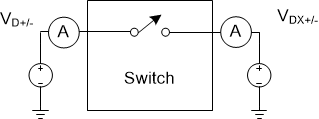

Figure 3. Off Leakage
Figure 4. On Leakage
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.
Figure 5. tSWITCH Timing
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.

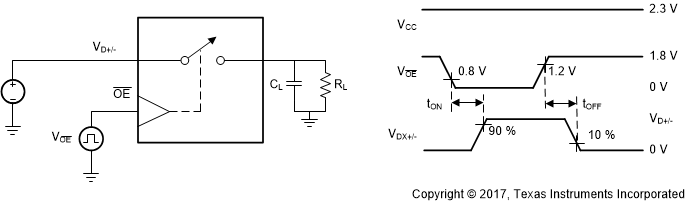

Figure 6. tON, tOFF for OE

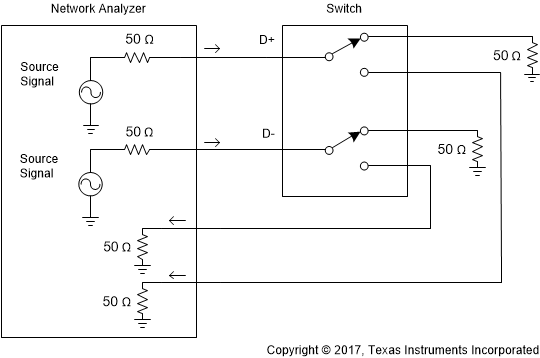

Figure 7. Off Isolation

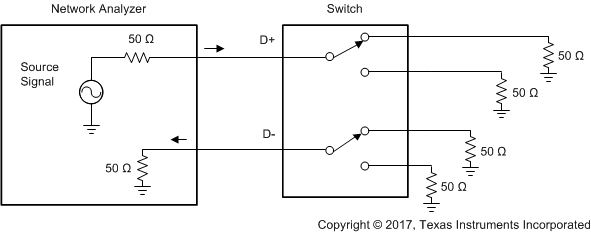

Figure 8. Cross Talk

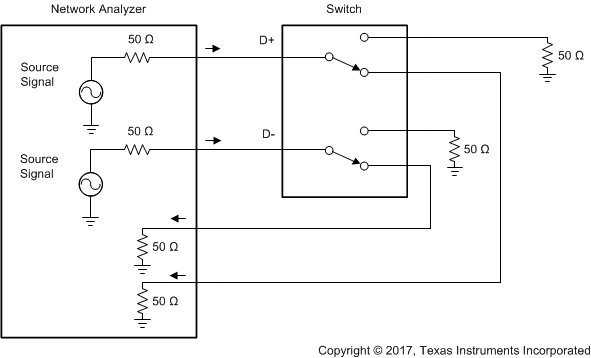

Figure 9. BW and Insertion Loss

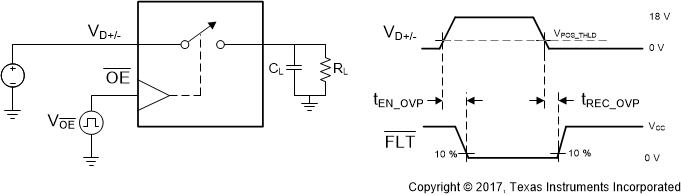

Figure 10. tEN_OVP and tDIS_OVP Timing Diagram
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.

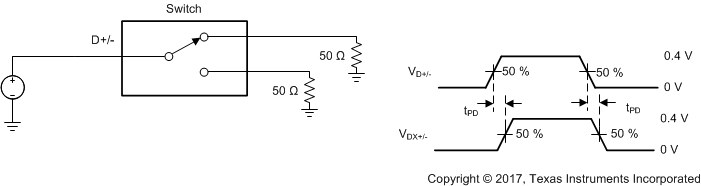

Figure 11. tPD
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.

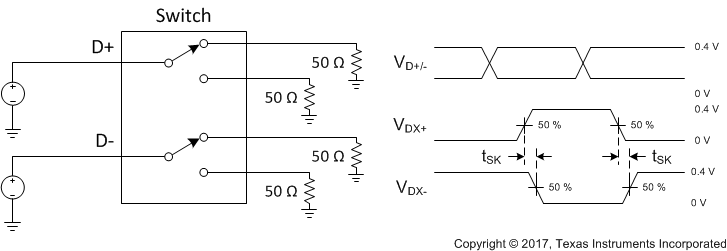

Figure 12. tSK
