7 Parameter Measurement Information

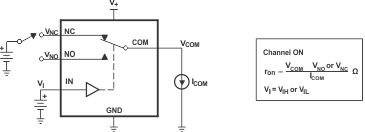

Figure 13. ON-State Resistance (ron)

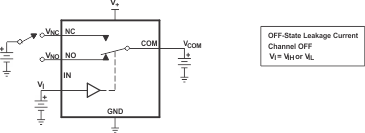

Figure 14. OFF-State Leakage Current (INC(OFF), INO(OFF), ICOM(OFF), INC(PWROFF), INO(PWROFF), ICOM(PWROFF))

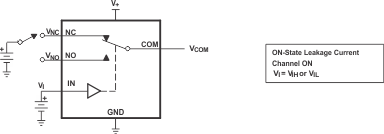

Figure 15. ON-State Leakage Current (ICOM(ON), INC(ON), INO(ON))
Figure 16. Capacitance (CI, CCOM(ON), CNC(OFF), CNO(OFF), CNC(ON), CNO(ON))
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.

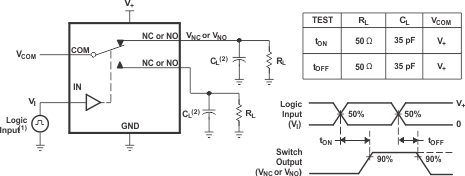

Figure 17. Turnon (tON) and Turnoff Time (tOFF)
A. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.

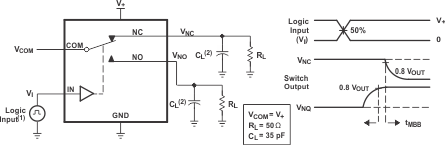

Figure 18. Make-Before-Break Time (tMBB)

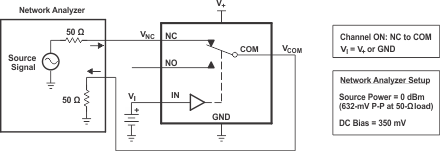

Figure 19. Bandwidth (BW)

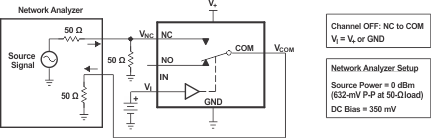

Figure 20. OFF Isolation (OISO)

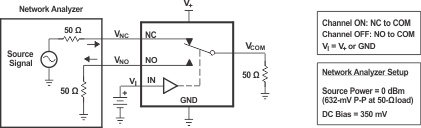

Figure 21. Crosstalk (XTALK)
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
B. CL includes probe and jig capacitance.

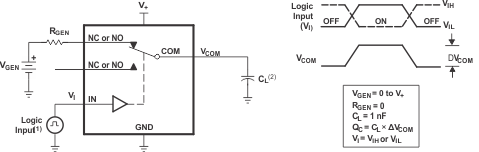

Figure 22. Charge Injection (QC)

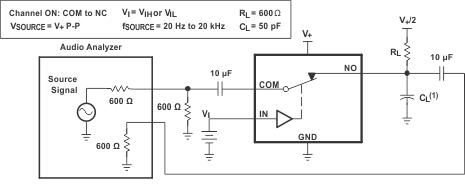

Figure 23. Total Harmonic Distortion (THD)
