SCDS247B October 2008 – February 2016 TS12A44513 , TS12A44514 , TS12A44515
PRODUCTION DATA.

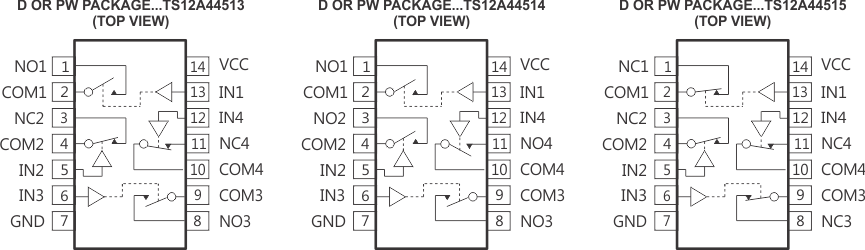

5 Pin Configuration and Functions
Pin Functions
| PIN | I/O | DESCRIPTION | |||
|---|---|---|---|---|---|
| NAME | TS12A44513 | TS12A44514 | TS12A44515 | ||
| COM | 2, 4, 9, 10 | 2, 4, 9, 10 | 2, 4, 9, 10 | I/O | Common |
| VCC | 14 | 14 | 14 | I | Power supply |
| IN | 5, 6, 12, 13 | 5, 6, 12, 13 | 5, 6, 12, 13 | I | Digital control to connect COM to NO or NC |
| GND | 7 | 7 | 7 | GND | Ground |
| NO | 1, 8 | 1, 3, 8, 11 | – | I/O | Normally open |
| NC | 3, 11 | – | 1, 3, 8, 11 | I/O | Normally closed |
