9.1.1.3 Human-Body Model (HBM)
The HBM of ESD testing is shown in Figure 9-2, while Figure 9-3 shows the current waveform that is generated during a discharge into a low impedance. The model consists of a 100-pF capacitor, charged to the ESD voltage of concern, and subsequently discharged into the DUT through a 1.5-kΩ resistor.

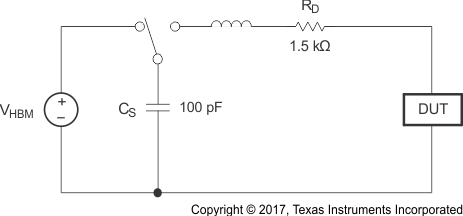

Figure 9-2 HBM ESD Test Circuit

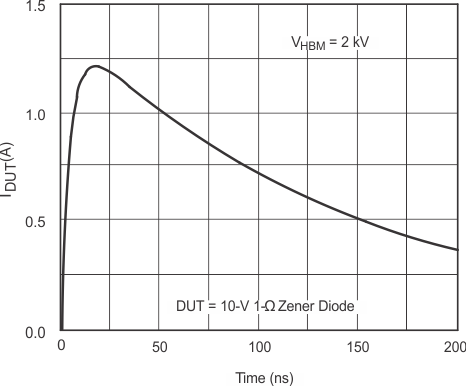

Figure 9-3 Typical
HBM Current Waveform
