7.4 Device Functional Modes
Table 7-1 and Table 7-2 list the functional modes of the drivers and receivers of TRS3232E.
Table 7-1 Each Driver(1)
| INPUT DIN | OUTPUT DOUT |
|---|---|
| L | H |
| H | L |
(1) H = high level, L = low level
Table 7-2 Each Receiver(1)
| INPUT RIN | OUTPUT ROUT |
|---|---|
| L | H |
| H | L |
| Open | H |
(1) H = high level, L = low level,
Open = input disconnected or connected driver off
Open = input disconnected or connected driver off

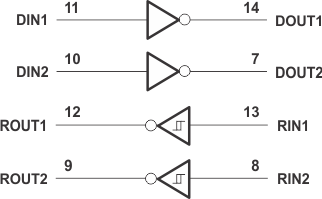

Figure 7-1 Logic Diagram
