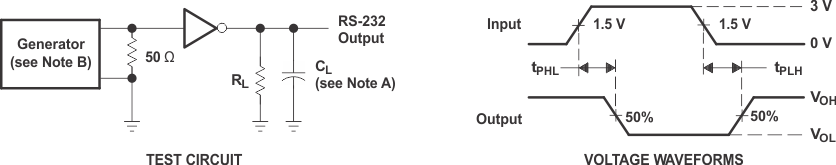

6 Parameter Measurement Information
| A. CL includes probe and jig capacitance | ||
| B. The pulse generator has the following characteristics: PRR = 250 kbps, ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns |
| A. CL includes probe and jig capacitance | ||
| B. The pulse generator has the following characteristics: PRR = 250 kbps, ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns |
| A. CL includes probe and jig capacitance | ||
| B. The pulse generator has the following characteristics: ZO = 50 Ω, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns |
