11.2.1 Theta JA Versus PCB Area
The amount of PCB copper as well as airflow effects the thermal performance of the device. Figure 11-5 shows the effects of copper area and airflow on the junction-to-ambient thermal resistance (RθJA) of the TPSM5601R5. The junction-to-ambient thermal resistance versus PCB area is plotted for a 4-layer PCB.
To determine the required copper area for an application:
- Determine the maximum power dissipation of the device in the application by referencing the power dissipation graphs in the Typical Characteristics.
- Calculate the maximum θJA using Equation 3 and the maximum ambient temperature of the application.
Equation 3.
- Reference Figure 11-5 to determine the minimum required PCB area for the application conditions.

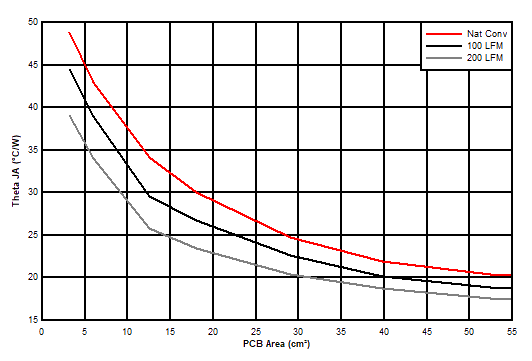

Figure 11-5 θJA vs PCB
Area
