6.4 Device Functional Modes

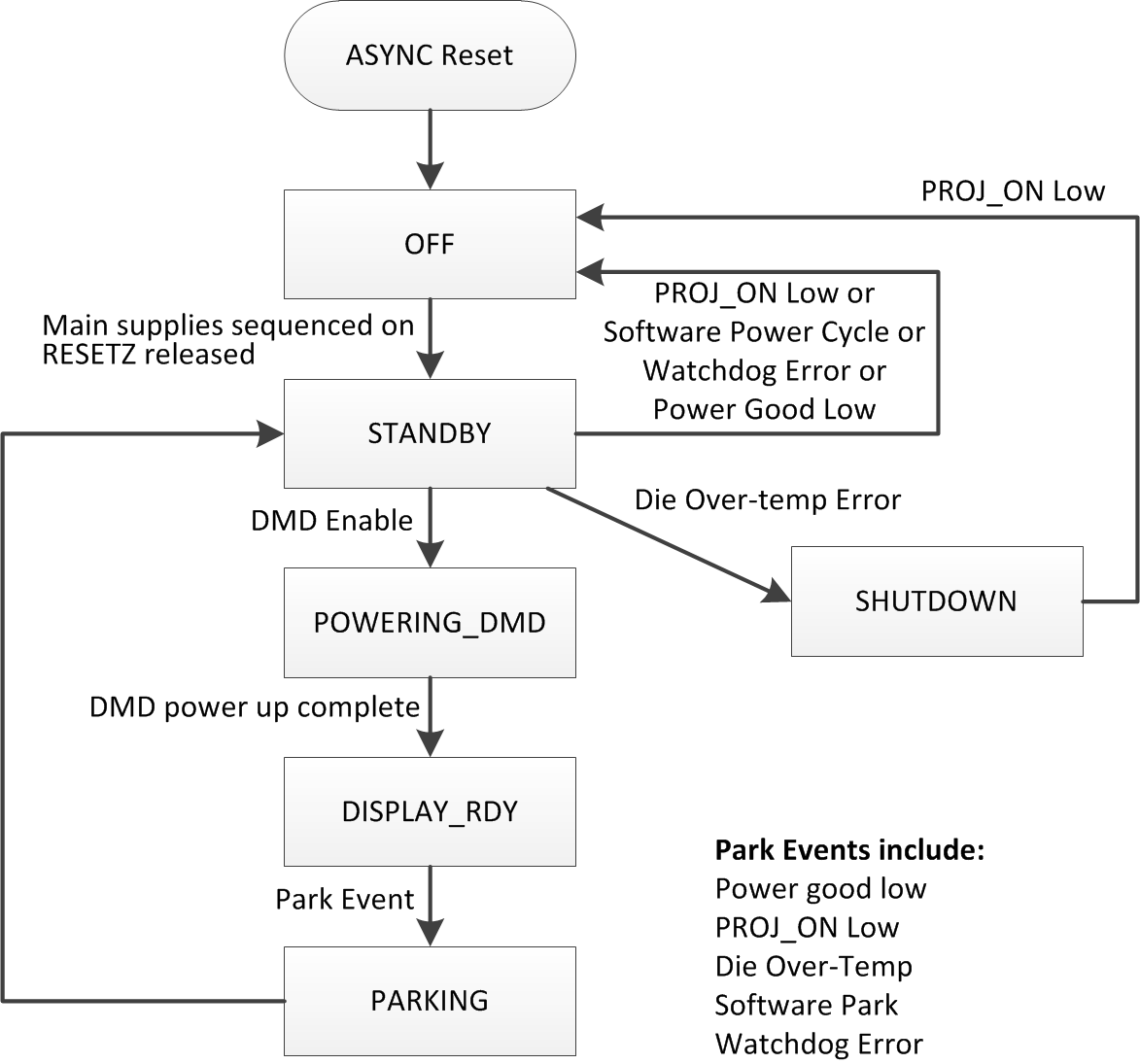

The following diagram in Figure 6-8 illustrates the functional operating modes of the TPS99001-Q1.
Figure 6-8 Top Level System States
