7.6 Timing Requirements
| MIN | NOM | MAX | UNIT | ||
|---|---|---|---|---|---|
| t(OPEN_deg) | LED open-circuit deglitch time, described in LED open-circuit diagnostics section | 100 | 125 | 150 | µs |
| t(SG_deg) | LED short-to-GND detection deglitch time, described in the LED short-to-GND diagnostics section | 100 | 125 | 150 | µs |
| t(SG_retry_ON) | Channel output SENSEx short-to-ground retry on-time, described in the LED short-to-GND auto retry section | 100 | 125 | 150 | µs |
| t(SG_retry_OFF) | Channel output SENSEx short-to-ground retry off-time, described in LED short-to-GND auto retry section | 10.8 | ms | ||
| tOPEN_retry_ON) | Channel output SENSEx open-circuit retry on-time | 100 | 125 | 150 | µs |
| t(OPEN_retry_OFF) | Channel output SENSEx open-circuit retry off-time | 10.8 | ms | ||
| D(PWM_10) | PWM duty cycle generated internally, nominal 10% duty cycle, as measured on output channel; see Figure 1， T(J) = 25ºC | 9.8% | 10% | 10.2% | |
| PWM duty cycle generated internally, nominal 10% duty cycle, as measured on output channel; see Figure 1， T(J) = -40ºC to 150ºC | 9.75% | 10% | 10.25% | ||
| td(DERATE) | Derate current-response delay time when DERATE steps from 1.8 V to 2.4 V | 25 | µs | ||
| t(CP_STARTUP) | V(IN) = 14 V, Cs = 150 nF, CPOUT voltage reaches 18 V as shown in Device Start-Up Delay diagram | 25 | µs | ||
| f(DRV_PWM) | Recommended PWM driving-frequency range | 2000 | Hz | ||

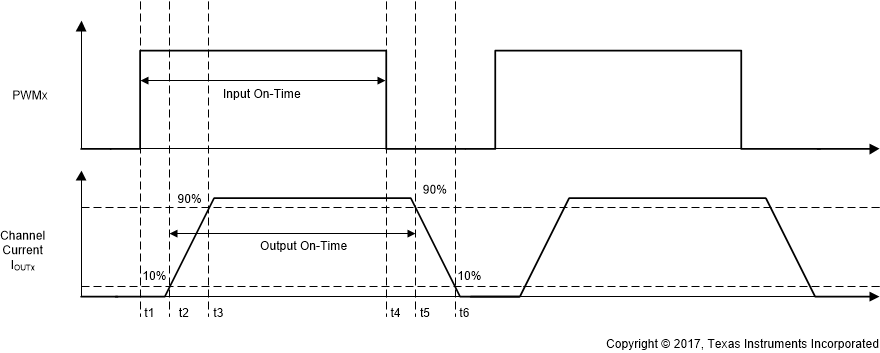

Figure 1. Channel-Current Output Timing Diagram
