8.4.1 Command Frame
There is only one defined format for frames coming in on MOSI from the master. These are called Command frames. A Command frame can be either a read command or a write command.
A Command frame consists of a CMD bit, five bits of ADDRESS, a PARITY bit (odd parity), and nine bits of DATA. The format of the Command frame is shown in Figure 34. The bit sequence is as follows:
- The COMMAND bit (CMD). CMD = 1 means the transfer is a write command; CMD = 0 means it is a read command.
- The five-bit read or write ADDRESS (A4..A0).
- The PARITY bit (PAR). This bit is set by the following equation: PARITY = XNOR(CMD, A4..A0, D8..D0).
- Nine bits of read or write DATA (D8..D0). For a read, all data bits must be 0.
Both the Read Command and the Write Command follow the Command frame format as shown in Figure 34.

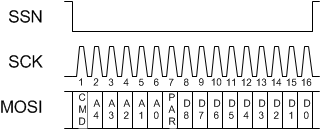

Figure 34. Command Frame Format
