1 特性
- 輻射性能：
- 耐輻射水平高達
TID 100krad(Si) - SEL、SEB 和 SEGR 抗擾度
LET = 75MeV-cm2/mg - SET 和 SEFI 的
LET 特征值高達 75MeV-cm2/mg
- 耐輻射水平高達
- 峰值效率：95.5%（100kHz 時，VO = 1V）
- 電源軌：3V 至 7V（輸入電壓）
- 靈活的開關頻率選項：
- 100kHz 至 1MHz 可調內部振蕩器
- 外部同步功能：100kHz 至 1MHz
- 可將 SYNC 引腳配置為 500kHz 時鐘頻率、90° 相位差以并聯多達 4 個器件
- 在 CDFP、KGD（已知合格芯片）和 HTSSOP (QMLP) 選項的溫度、輻射以及線路和負載調節范圍內提供 0.6V ±1.5% 的基準電壓
- 在 HTSSOP (SHP) 選項的溫度、輻射以及線路和負載調節范圍內提供 0.6V ±1.7% 的基準電壓
- 單調啟動至預偏置輸出
- 可調斜坡補償和軟啟動
- 可實現電源定序的可調輸入使能和電源正常輸出

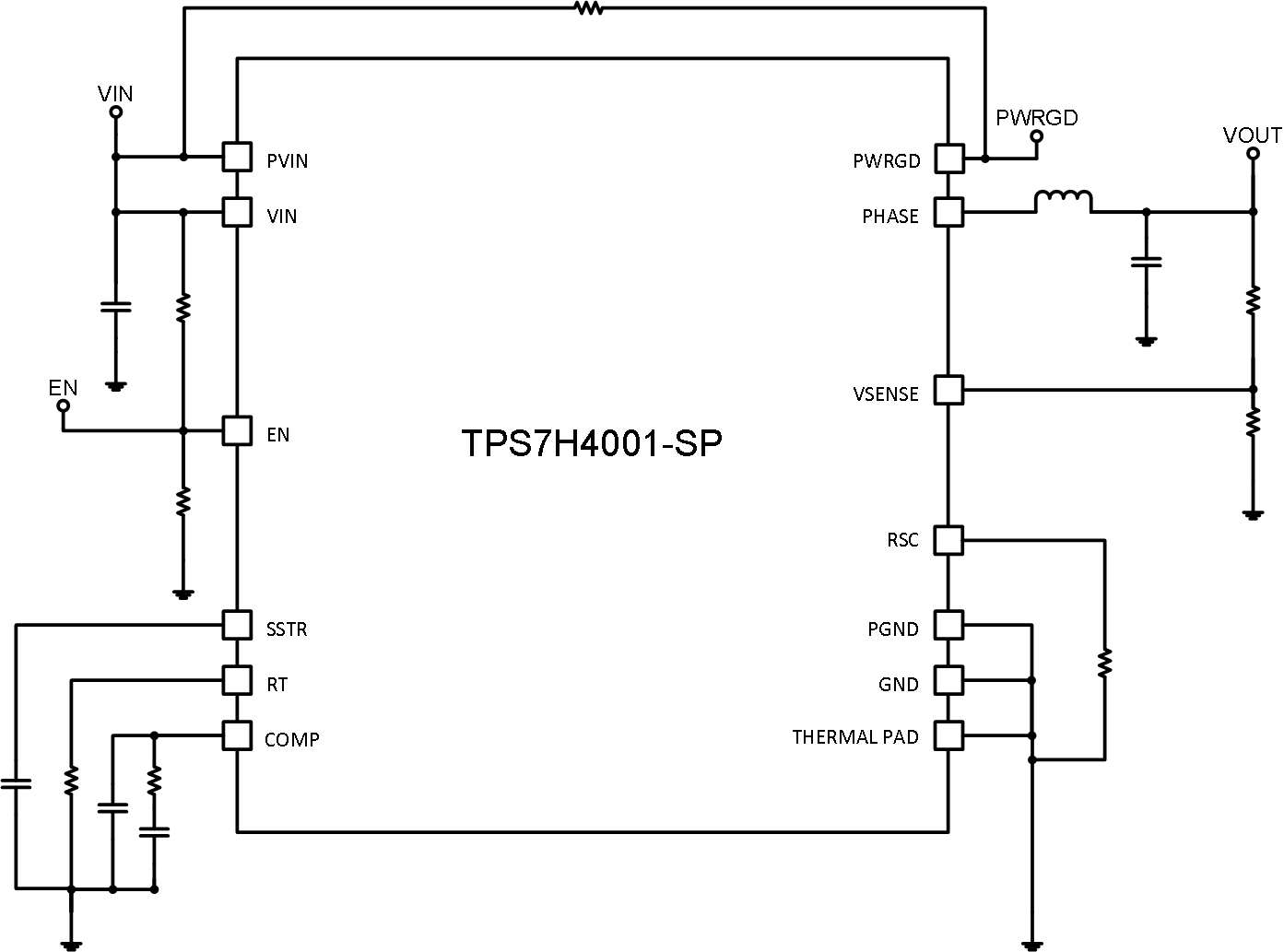

功能圖
