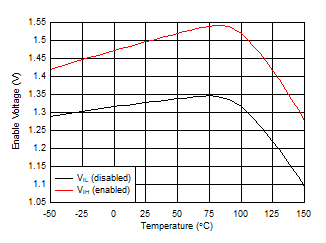

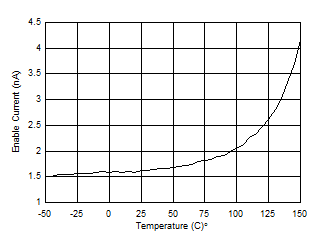

6.6 Typical Characteristics
at TJ = –40°C to +150°C, VIN = 14 V, and VEN ≥ 2 V (unless otherwise noted)
| VEN = 0 V |
| VOUT = 3.3 V |
| VOUT = 3.3 V, DRV package |
| VOUT = 3.3 V |
| VOUT = 3.3 V, IOUT = 1 mA |
| 3.3-V and 5-V options, IOUT = 1 mA |
| VOUT = 3.3 V, IOUT = 1 mA |

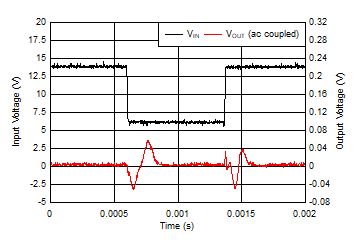

| VOUT = 3.3 V, CIN = 0 µF, COUT = 1 µF,
IOUT = 100 mA, slew rate = 1 V/µs |
| VOUT = 5 V, CIN = 0 µF, COUT = 10 µF |
| CIN = 0.1 µF, COUT = 10 µF |
| VOUT = 5 V |
| VOUT = 5 V, DRV package |
| VOUT = 5 V |
| VOUT = 5 V |
| 3.3-V and 5-V options, IOUT = 1 mA |
| VOUT = 5 V, IOUT = 1 mA |
| VOUT is shorted to 90% × VOUT(NOM) |
| VOUT = 5 V, CIN = 1 µF, COUT = 1 µF |
| VOUT = 5 V, CIN = 1 µF, COUT = 1 µF,
IOUT = 1 mA → 100 mA → 1 mA, slew rate = 1 mA/µs |
| VOUT = 3.3 V, CIN = 0 µF, COUT = 10 µF |
