ZHCSI97F May 2010 – March 2020 TPS7A65-Q1
PRODUCTION DATA.
8.2 Typical Application
A typical application circuit for TPS7A65-Q1 is Figure 20. Depending on the end application, one may use different values of external components. An application may require a larger output capacitor during fast load steps to prevent the output from temporarily dropping down. TI recommends a low-ESR ceramic capacitor with dielectric of type X5R or X7R. The user can additionally connect a bypass capacitor at the output to decouple high-frequency noise as per the end application.

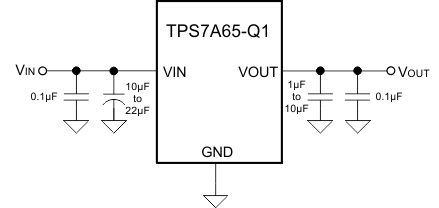

Figure 20. Typical Application Schematic
