8.2 Typical Application
This section discusses the implementation of the fixed 1.0-V TPS7A53A-Q1 to regulate a 3-A load requiring good PSRR at high frequency with low noise. Figure 8-3 provides a schematic for this typical application circuit.

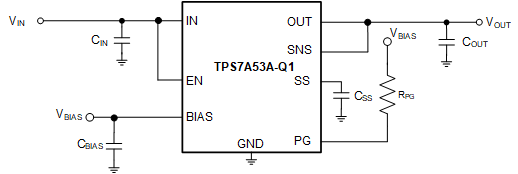

Figure 8-3 Typical
Fixed Voltage Application
