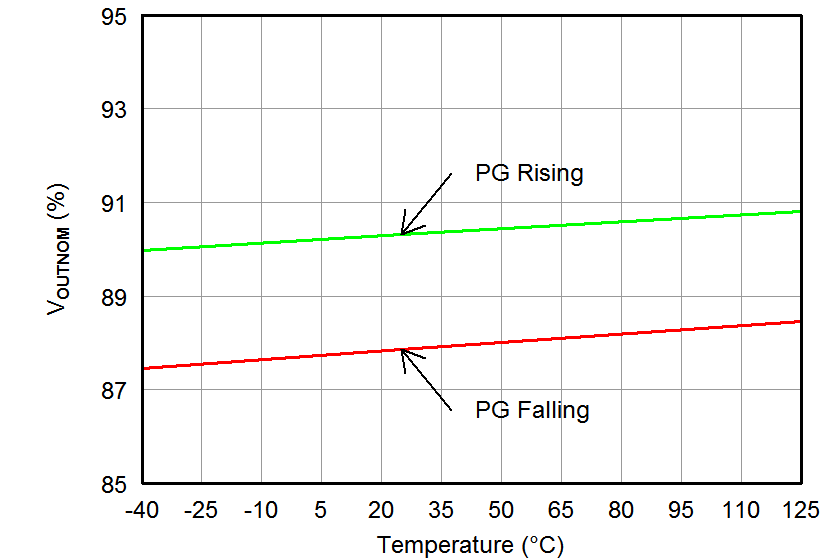

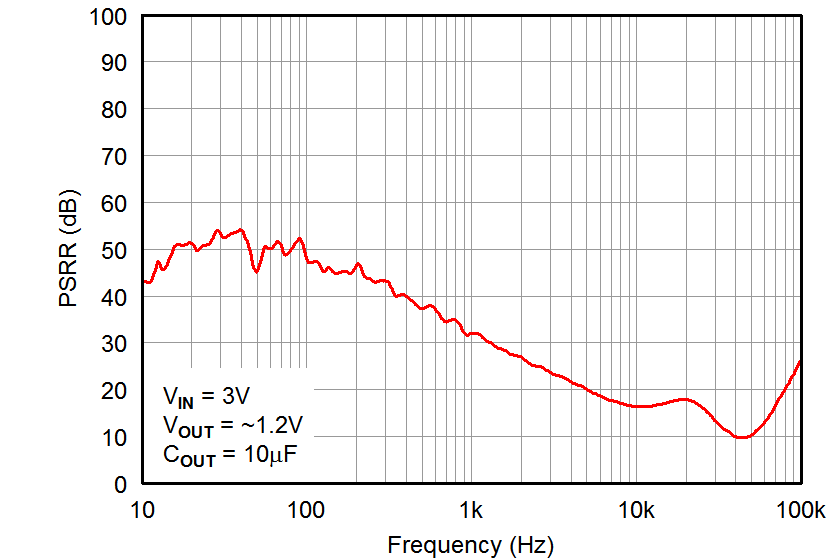

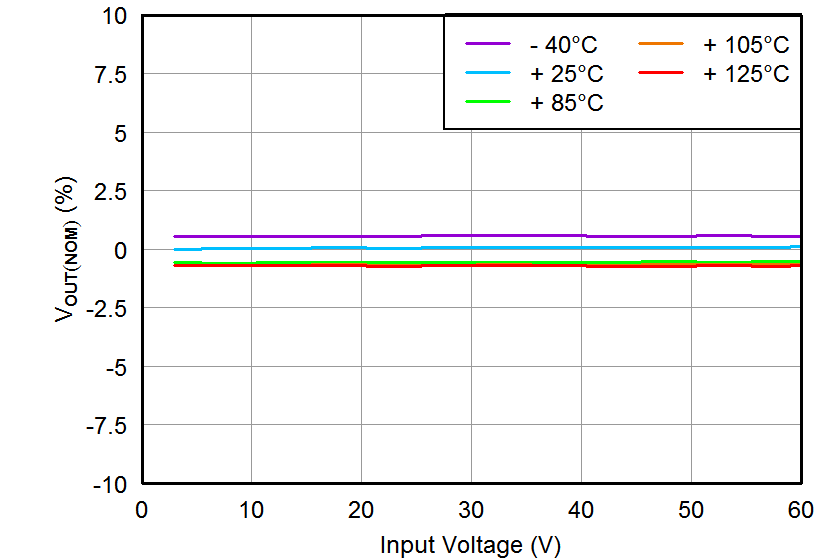

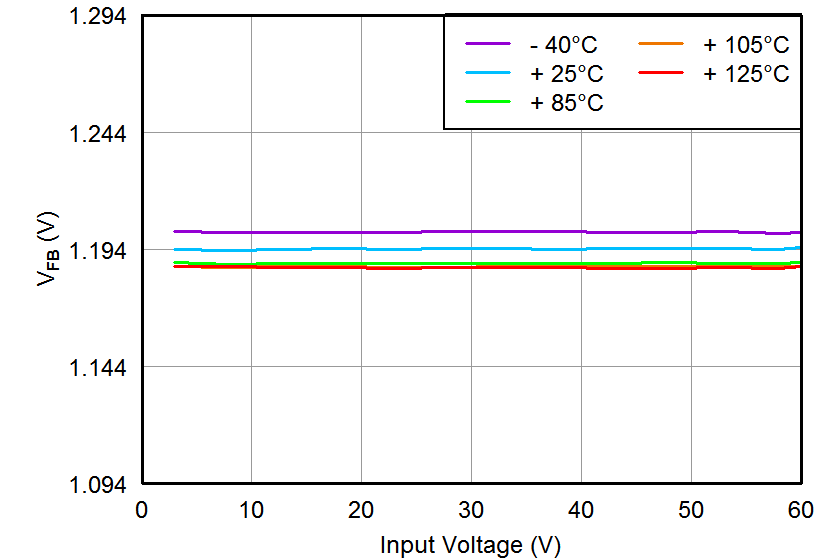

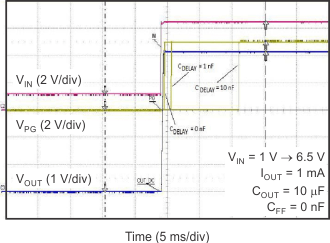

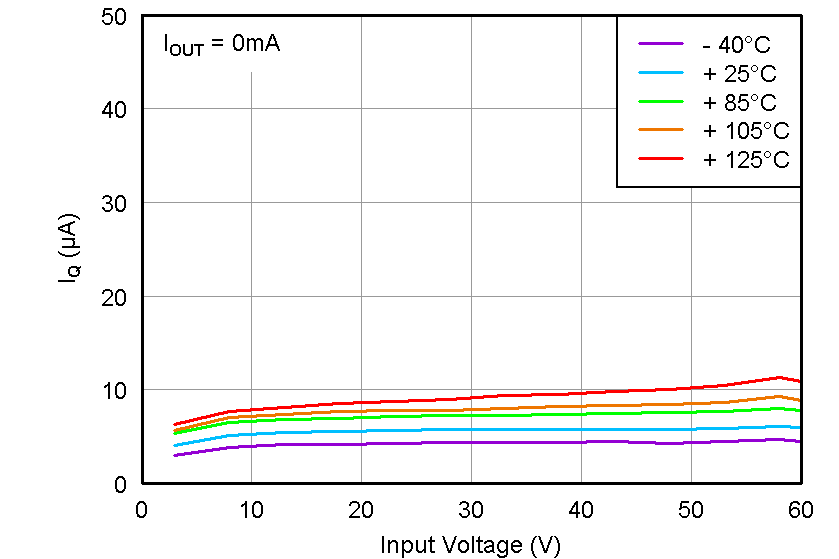

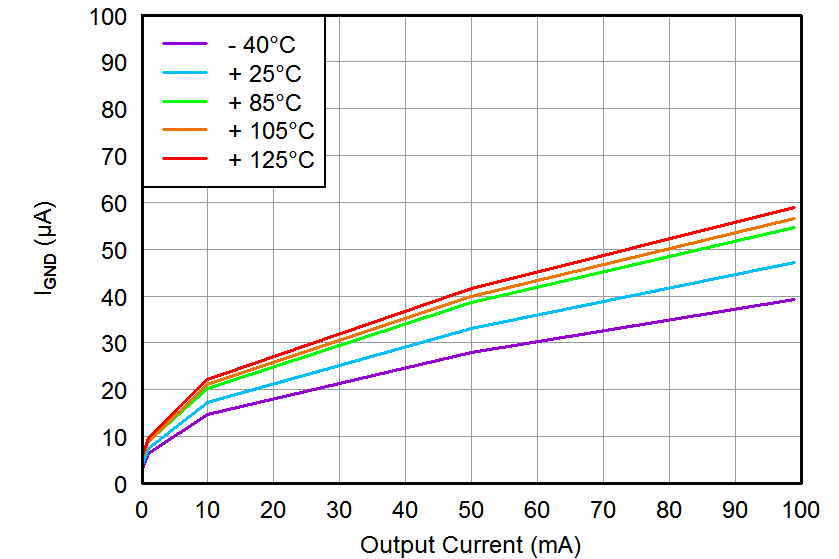

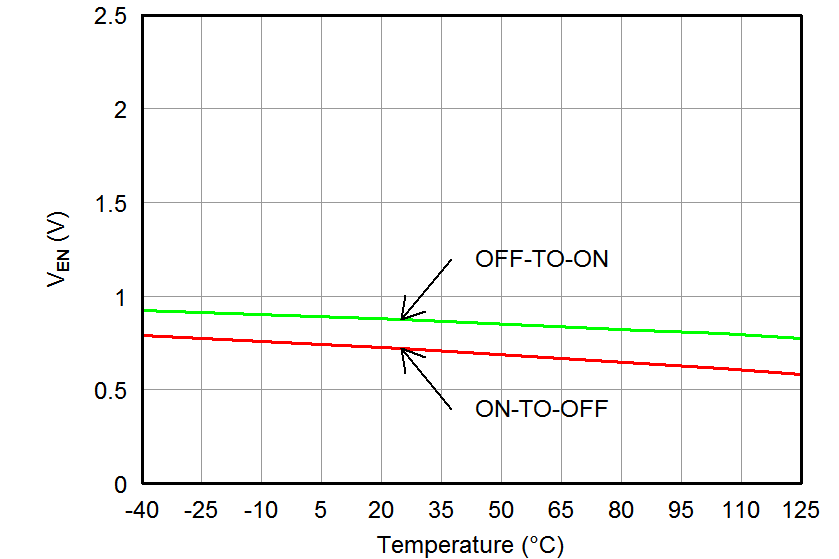

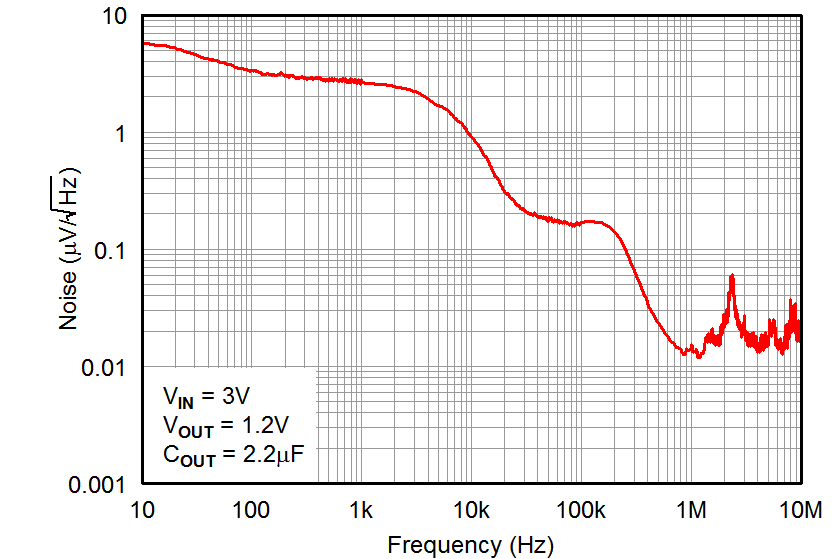

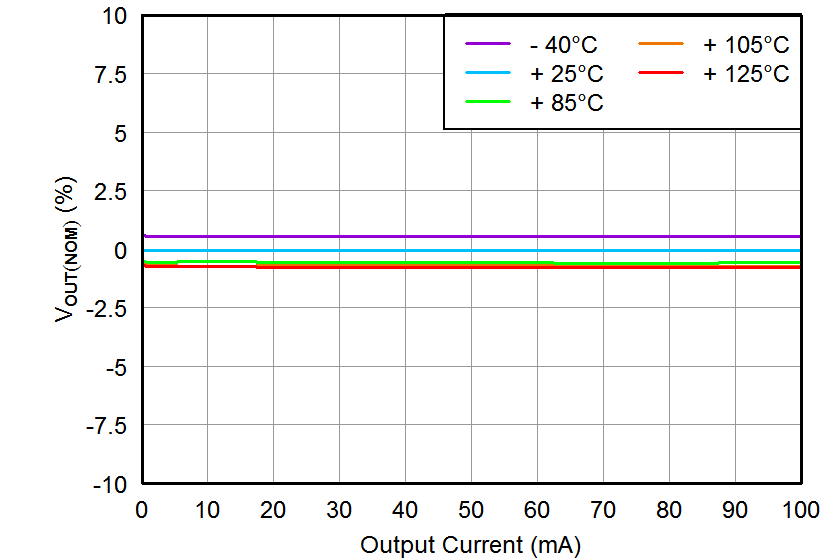

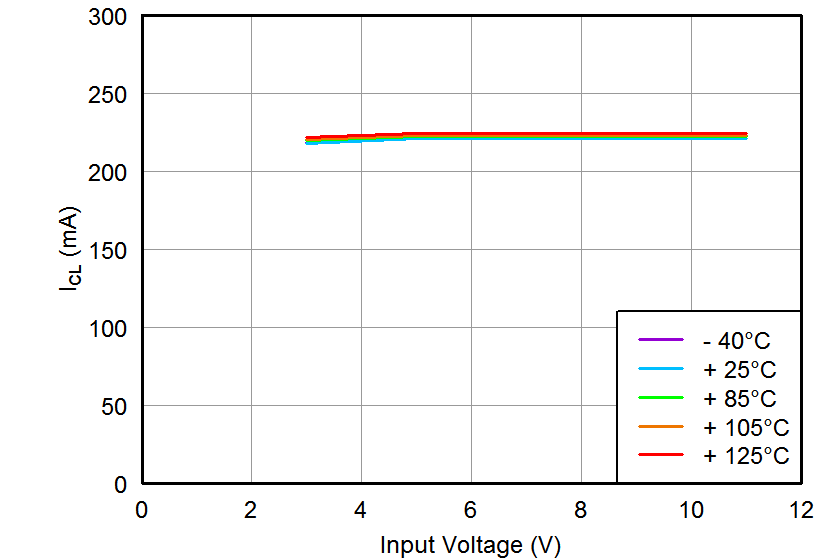

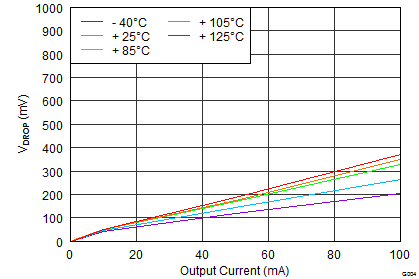

6.6 Typical Characteristics
at TA = –40°C to 125°C, VIN = VOUT(NOM) + 0.5 V or VIN = 3 V (whichever is greater), VEN = VIN, IOUT = 10 µA, CIN = 1 µF, COUT = 2.2 µF, and FB tied to OUT (unless otherwise noted)
