3 說明
TPS65982 器件是一款獨立式 USB Type-C 和供電 (PD) 控制器，可在 USB Type-C 連接器中提供電纜插頭和方向檢測。進行線纜檢測時，TPS65982 器件會使用 USB PD 協議在 CC 線路上進行通信。在成功完成 USB PD 協商后，TPS65982 會啟用合適的電源路徑并為內部和（可選）外部多路復用器配置交替模式設置。
CC 引腳上的混合信號前端可為 USB Type-C 電源提供默認值、1.5A 或 3A 三種電流，檢測電纜插入事件和確定 Type-C 電纜方向，以及利用雙相標記編碼 (BMC) 和物理層 (PHY) 協議自主協商 USB PD 合約。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TPS65982 | BGA MicroStar Junior (96) | 6.00mm × 6.00mm |
| NFBGA (96) |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

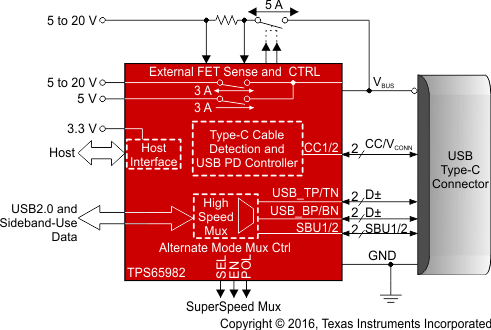

簡化版圖表
