8.2.2.3 Application Curve
Refer to the DiSEqc1.x Support section for typical application curves. Figure 8-21 is the unique tone-detection curve for the DiSEqC 2.x application.

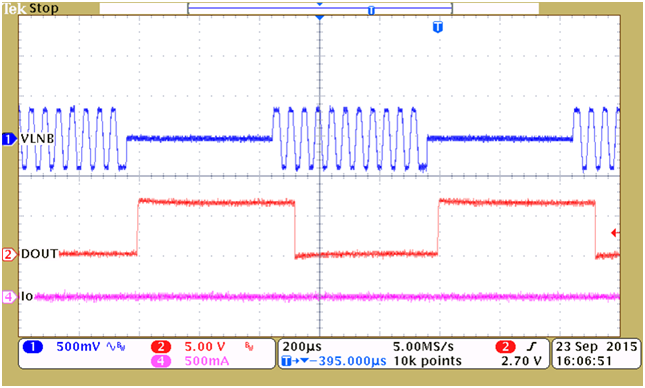

Figure 8-21 DOUT Tone Detection Output
