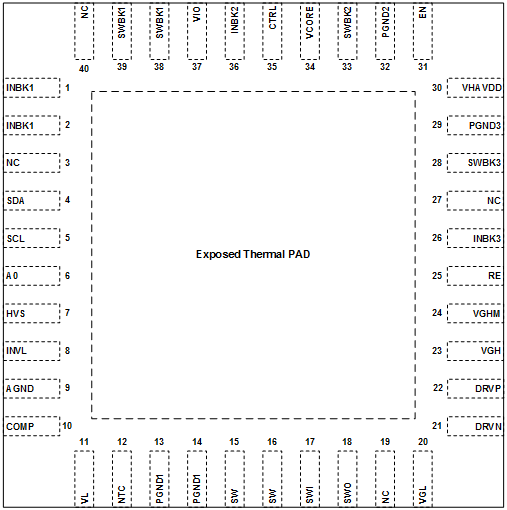

5 Pin Configuration and Functions
RHA Package
40 Pin (VQFN)
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| INBK1 | 1, 2 | — | Buck 1 converter (V(IO)) supply pin. This pin is internally connected to INBK3. Place a buffer capacitor close to this pin. |
| NC | 3 | — | Not connected. |
| SDA | 4 | I / O | I2C data pin. |
| SCL | 5 | I | I2C clock pin. |
| A0 | 6 | I | I2C address select pin. |
| HVS | 7 | I | Boost and Buck 3 converter High Voltage Stress Mode enable pin. |
| INVL | 8 | — | Internal logic supply pin. Place a buffer capacitor close to this pin. |
| AGND | 9 | — | Analog Ground pin. Internal circuitry uses this ground. |
| COMP | 10 | I / O | Boost converter (V(AVDD)) compensation pin. |
| VL | 11 | I / O | Internal 5 V regulator output pin. Connect a buffer capacitor to this pin. |
| NTC | 12 | I | Thermal Resistor sense pin. |
| PGND1 | 13, 14 | — | Boost converter (V(AVDD)) Power Ground pin. |
| SW | 15, 16 | O | Boost converter (V(AVDD)) switch pin. Avoid long traces to the diode and inductor because this trace carries switching waveforms that generate noise. |
| SWI | 17 | I | Isolation Switch input pin. |
| SWO | 18 | O | Isolation Switch output pin. |
| NC | 19 | — | Not connected. |
| VGL | 20 | I | Negative Charge Pump (V(GL)) voltage sense pin. |
| DRVN | 21 | O | Negative Charge Pump (V(GL)) base drive pin. |
| DRVP | 22 | I | Positive charge pump (V(GH)) base drive pin. |
| VGH | 23 | I | Positive charge pump (V(GH)) output voltage sense and Gate Pulse Modulation supply pin. |
| VGHM | 24 | I / O | Gate Pulse Modulation output pin. |
| RE | 25 | O | Slope adjustment of Gate Pulse Modulation. |
| INBK3 | 26 | — | Buck 3 converter (V(HAVDD)) supply pin. This pin is internally connected to INBK1. Place a buffer capacitor close to this pin. |
| NC | 27 | — | Not connected. |
| SWBK3 | 28 | O | Buck 3 Converter (V(HAVDD)) switch pin. Avoid long traces to the inductor because this trace carries switching waveforms that generate noise. |
| PGND3 | 29 | — | Buck 3 Converter (V(HAVDD)) Power Ground pin. |
| VHAVDD | 30 | I | Buck 3 Converter (V(HAVDD)) voltage sense pin. |
| EN | 31 | I | Enable of Isolation Switch, Boost converter and Buck 3 converter. |
| PGND2 | 32 | — | Buck 2 converter (V(CORE)) Power Ground pin. |
| SWBK2 | 33 | O | Buck 2 converter (V(CORE)) switch pin. Avoid long traces to the inductor because this trace carries switching waveforms that generate noise. |
| VCORE | 34 | I | Buck 2 converter (V(CORE)) output voltage sense pin. |
| CTRL | 35 | I | Gate Pulse Modulation control pin. |
| INBK2 | 36 | — | Buck 2 converter (V(CORE)) supply pin. Place a buffer capacitor close to this pin. |
| VIO | 37 | I | Buck 1 converter (V(IO)) output voltage sense pin. |
| SWBK1 | 38, 39 | O | Buck 1 converter (V(IO)) switch pin. Avoid long traces to the diode and inductor because this trace carries switching waveforms that generate noise. |
| NC | 40 | — | Not connected. |
| Exposed thermal pad | — | The Exposed thermal pad is connected to AGND. | |
