9.3.4 Undervoltage Lockout (UVLO)
To avoid mis-operation of the device at low input voltages, an undervoltage lockout is included. It activates the device once the input voltage (VI) has increased the UVLOrising value. Once active, the device allows operation down to even smaller input voltages, which is determined by the UVLOfalling. This behavior requires VO to be higher than the minimum value of 1.8 V.

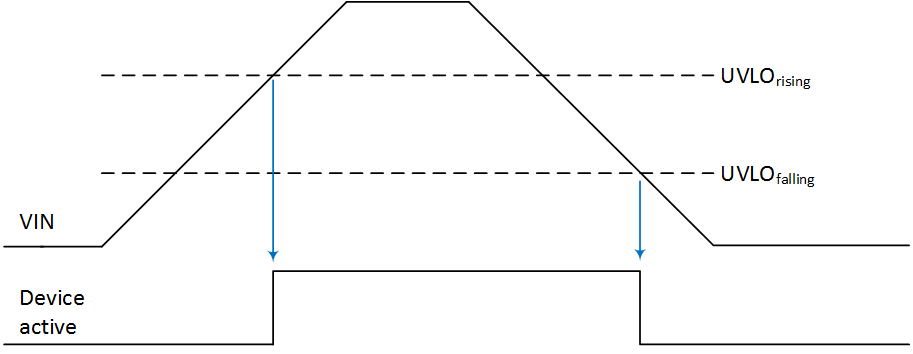

Figure 9-3 Rising and Falling Undervoltage Lockout Behavior
