ZHCSGR8A September 2017 – July 2018 TPS63710

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

DRR|12
- MPSS085A

散熱焊盤機械數據 (封裝 | 引腳)

DRR|12
- PPTD337

訂購信息

8.2.3.1 Parameter Measurement Information

The application curves have been taken using the schematic in Figure 9 and BOM according Table 3. Based on the output voltage, the components given in Table 9 have been changed. The resistor divider is based on Table 4.

Table 9. Component Selection for V_OUT Options

V_OUT	C_CP	L	C_OUT
-1 V and -1.8 V	2 x EMK212BB7106MG-T	XFL4020-222ME	2 x C2012X7S1A226M125AC
-3.3 V and -5 V	3 x EMK212BB7106MG-T	XFL4020-472ME	3 x C2012X7S1A226M125AC

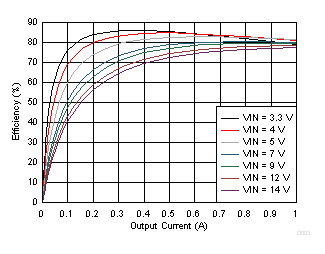

V_OUT = -1 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 10. Efficiency vs Output Current

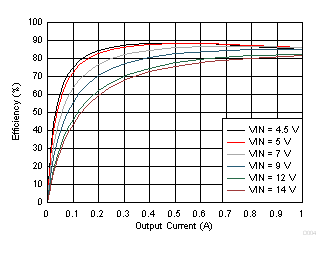

V_OUT = -3.3 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 12. Efficiency vs Output Current

V_OUT = -1.8 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 11. Efficiency vs Output Current

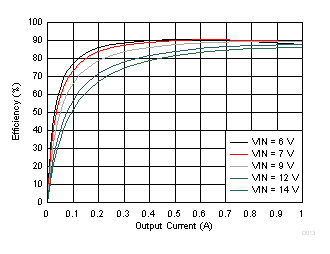

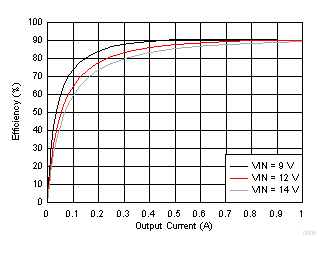

V_OUT = -5 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 13. Efficiency vs Output Current

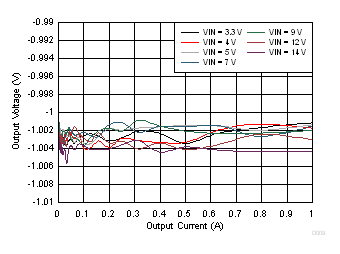

V_OUT = -1 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 14. Output Voltage vs Output Current

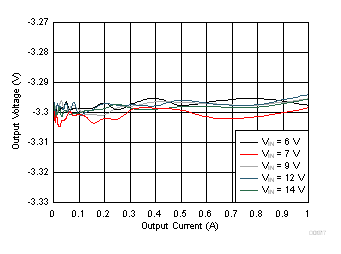

V_OUT = -3.3 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 16. Output Voltage vs Output Current

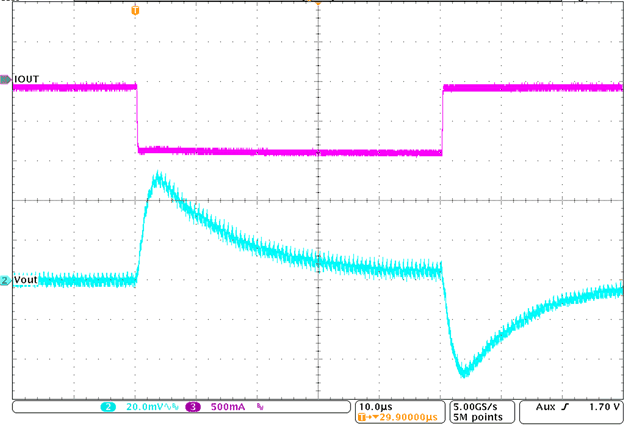

TPS63710 TPS63710_load_transient_Vout=-1V_Vin=5V.gif

V_IN = 5 V
V_OUT = -1 V

I_OUT = 100 mA to 900 mA

T_A = 25°C

Figure 18. Load Transient Response

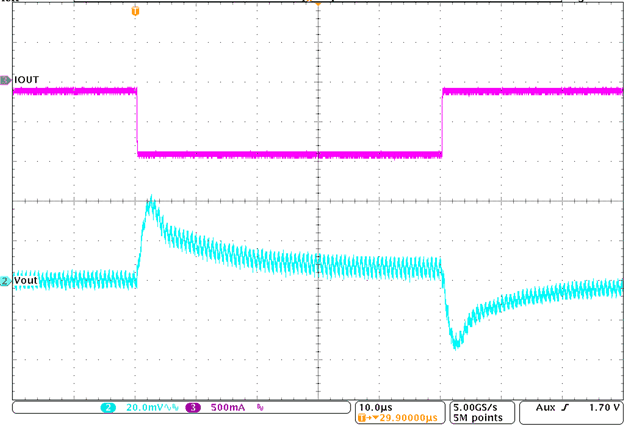

TPS63710 TPS63710_load_transient_Vout=-3-3V_Vin=9V.gif

V_IN = 9 V
V_OUT = -3.3 V

I_OUT = 100 mA to 900 mA

T_A = 25°C

Figure 20. Load Transient Response

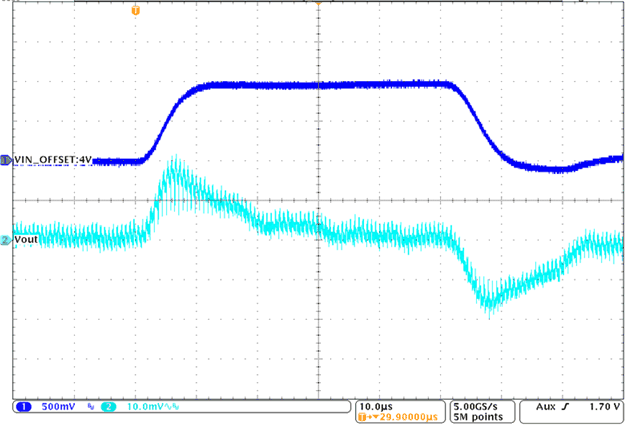

V_IN = 4 V to 6 V to 4 V
V_OUT = -1 V

I_OUT = 0.5 A

T_A = 25°C

Figure 22. Line Transient Response

V_IN = 9 V to 12 V to 9 V
V_OUT = -3.3 V

I_OUT = 0.5 A

T_A = 25°C

Figure 24. Line Transient Response

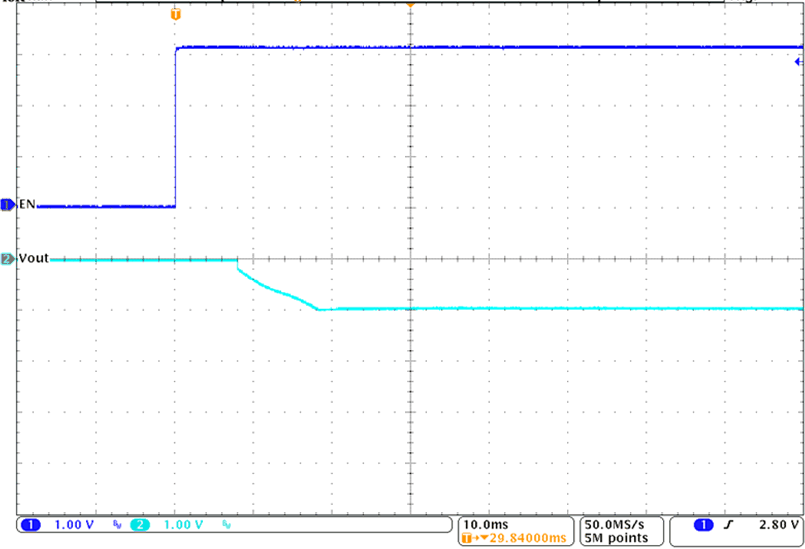

V_IN = 5 V
V_OUT = -1 V

I_OUT = 0.5 A

T_A = 25°C

Figure 26. Start-Up Timing

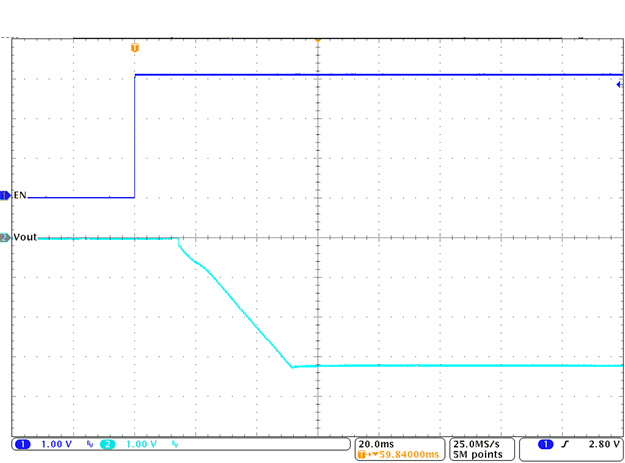

V_IN = 9 V
V_OUT = -3.3 V

I_OUT = 0.5 A

T_A = 25°C

Figure 28. Start-Up Timing

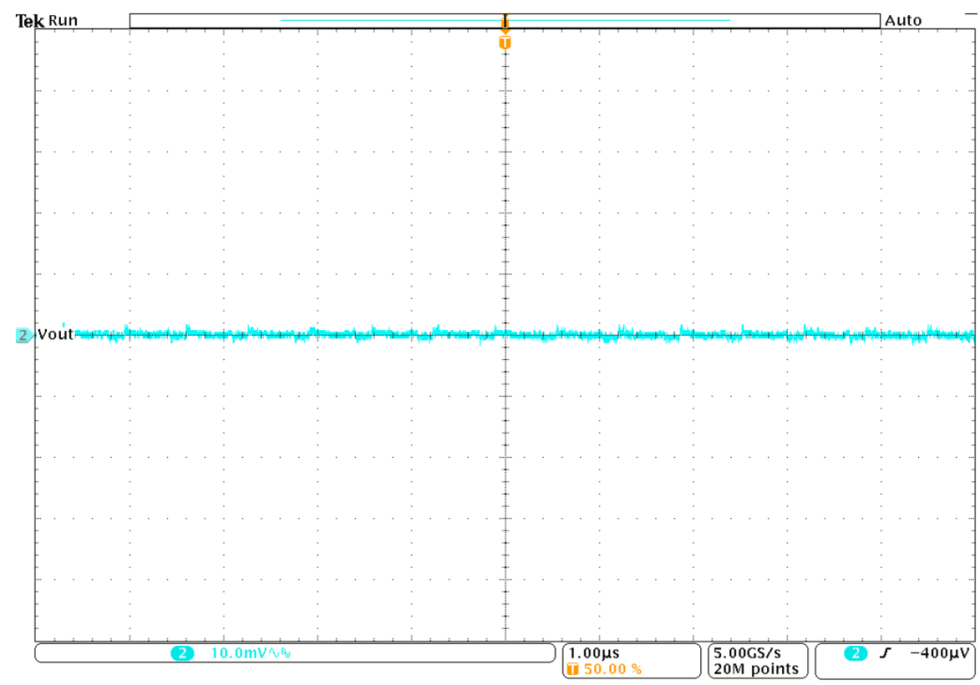

TPS63710 TPS63710_Voripple_5V_1V0_1A_2uH2.gif

V_IN = 5 V
V_OUT = -1 V

I_OUT = 1 A
L = 2.2 µH

T_A = 25°C

Figure 30. Output Voltage Ripple

TPS63710 TPS63710_Voripple_9V_3V3_1A_2uH2.gif

V_IN = 9 V
V_OUT = -3.3 V

I_OUT = 1 A
L = 2.2 µH

T_A = 25°C

Figure 32. Output Voltage Ripple

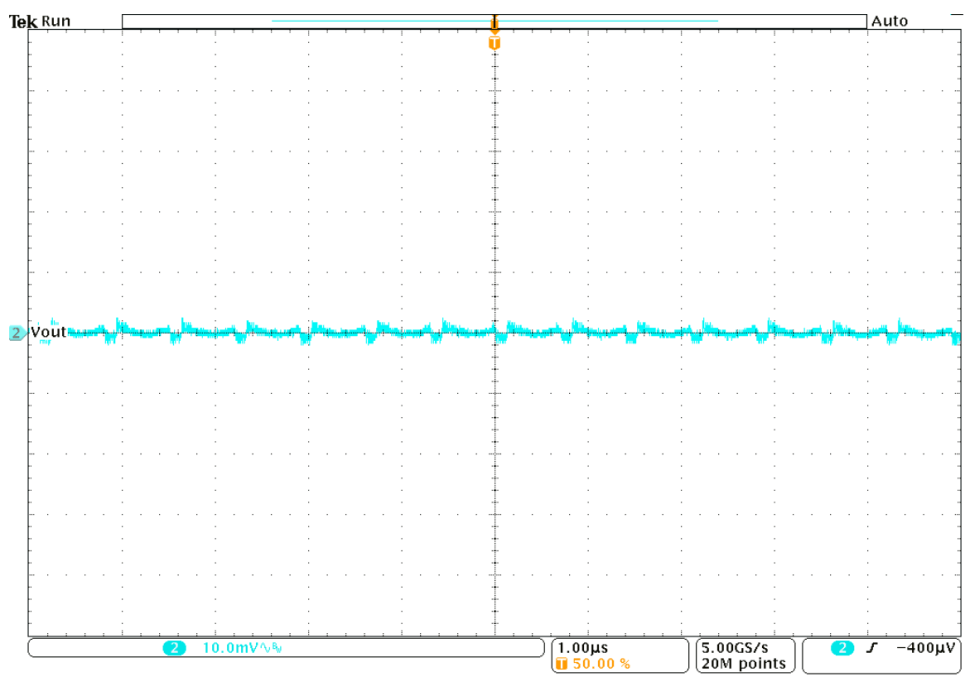

TPS63710 TPS63710_Voripple_12V_1V8_1A_2uH2.gif

V_IN = 12 V
V_OUT = -1.8 V

I_OUT = 1 A
L = 2.2 µH

T_A = 25°C

Figure 34. Output Voltage Ripple

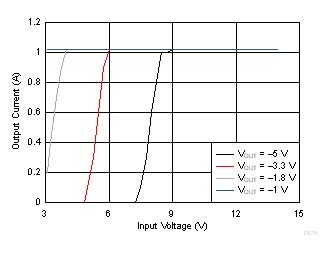

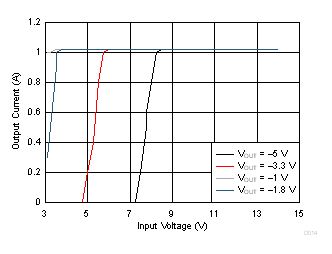

T_A = 25°C

Figure 36. Maximum Output Current vs Input Voltage

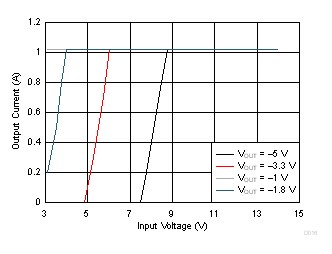

T_A = 125°C

Figure 38. Maximum Output Current vs Input Voltage

I_OUT = 1 A

T_A = 25°C

Figure 40. Output Noise Density

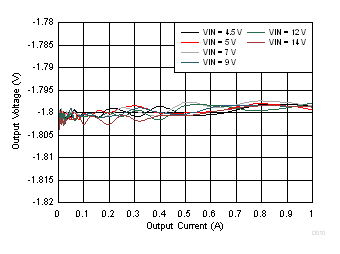

V_OUT = -1.8 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 15. Output Voltage vs Output Current

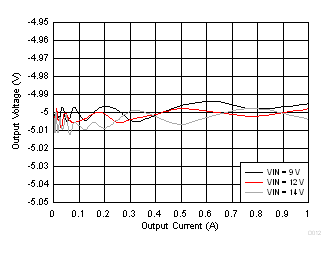

V_OUT = -5 V

I_OUT = 0 A to 1 A

T_A = 25°C

Figure 17. Output Voltage vs Output Current

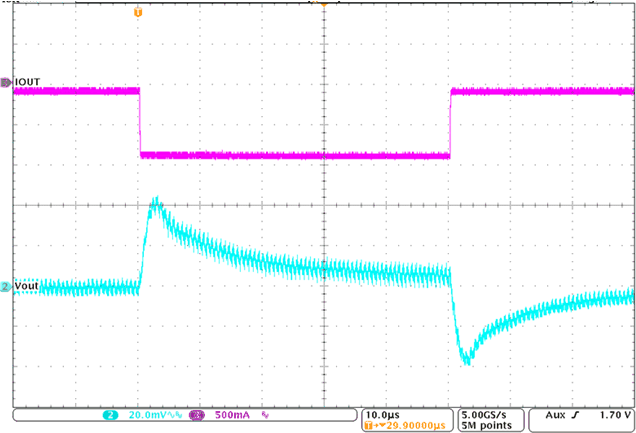

TPS63710 TPS63710_load_transient_Vout=-1-8V_Vin=5V.gif

V_IN = 5 V
V_OUT = -1.8 V

I_OUT = 100 mA to 900 mA

T_A = 25°C

Figure 19. Load Transient Response

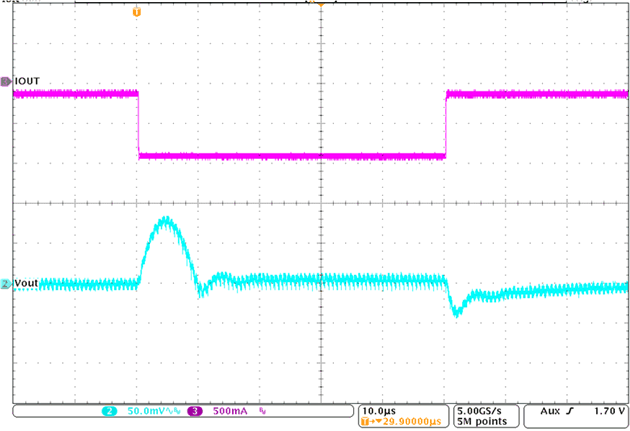

TPS63710 TPS63710_load_transient_Vout=-5V_Vin=9V.gif

V_IN = 9 V
V_OUT = -5 V

I_OUT = 100 mA to 900 mA

T_A = 25°C

Figure 21. Load Transient Response

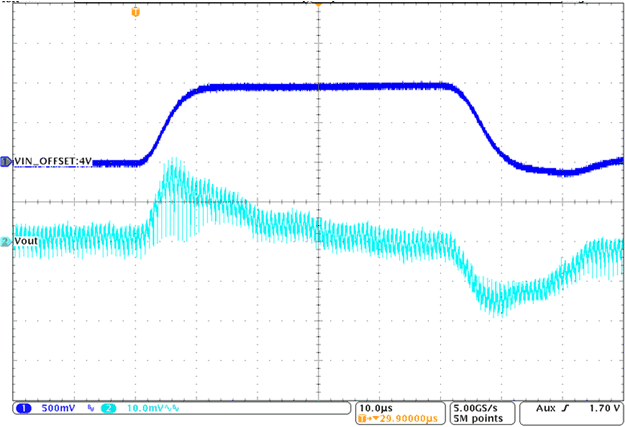

V_IN = 4 V to 5 V to 4 V
V_OUT = -1.8 V

I_OUT = 0.5 A

T_A = 25°C

Figure 23. Line Transient Response

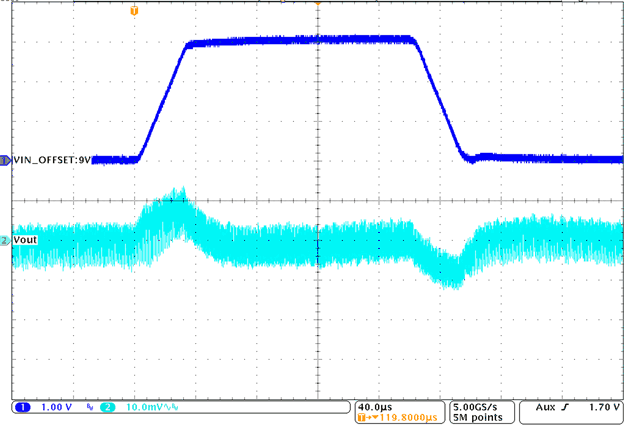

V_IN = 9 V to 12 V to 9 V
V_OUT = -5 V

I_OUT = 0.5 A

T_A = 25°C

Figure 25. Line Transient Response

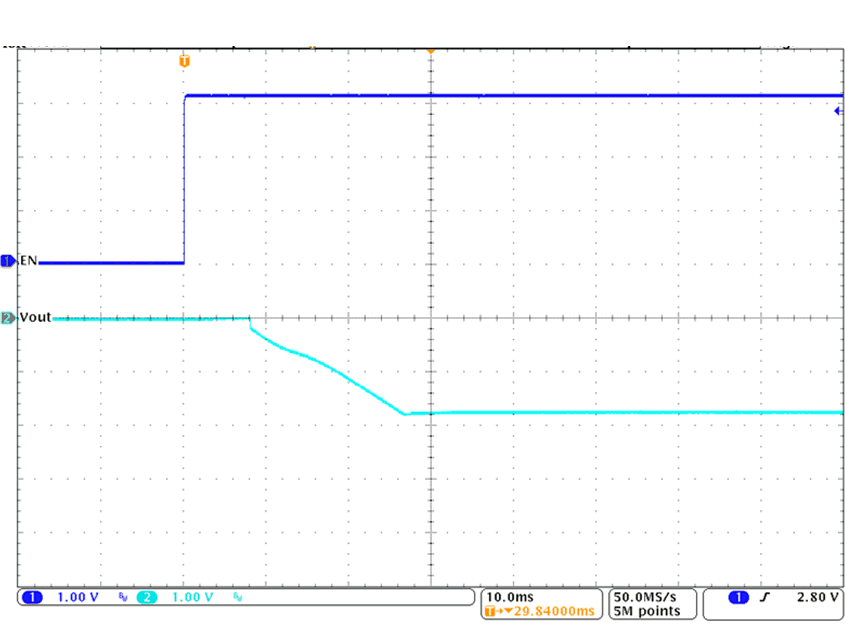

V_IN = 5 V
V_OUT = -1.8 V

I_OUT = 0.5 A

T_A = 25°C

Figure 27. Start-Up Timing

V_IN = 9 V
V_OUT = -5 V

I_OUT = 0.5 A

T_A = 25°C

Figure 29. Start-Up Timing

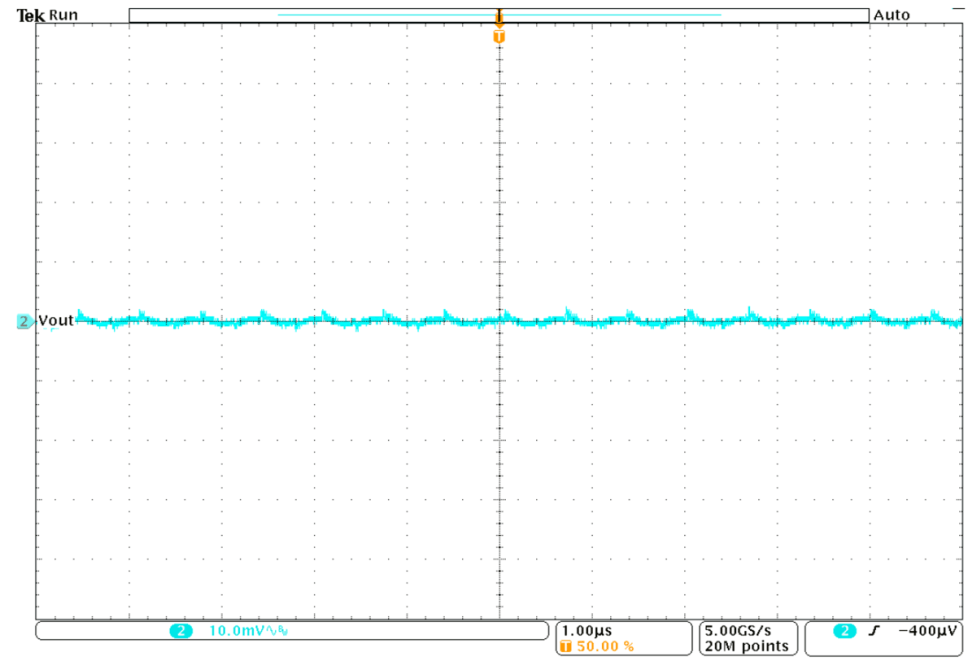

TPS63710 TPS63710_Voripple_5V_1V8_1A_2uH2.gif

V_IN = 5 V
V_OUT = -1.8 V

I_OUT = 1 A
L = 2.2 µH

T_A = 25°C

Figure 31. Output Voltage Ripple

TPS63710 TPS63710_Voripple_9V_5V0_1A_4uH7.gif

V_IN = 9 V
V_OUT = -5 V

I_OUT = 1 A
L = 4.7 µH

T_A = 25°C

Figure 33. Output Voltage Ripple

V_IN = 12 V
V_OUT = -5 V

I_OUT = 1 A
L = 4.7 µH

T_A = 25°C

Figure 35. Output Voltage Ripple

T_A = 85°C

Figure 37. Maximum Output Current vs Input Voltage

I_OUT = 0.2 A

T_A = 25°C

Figure 39. Output Noise Density
