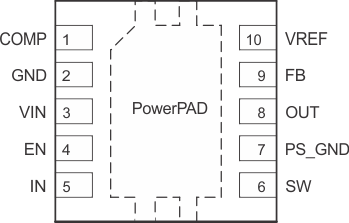

5 Pin Configuration and Functions
DRC Package
10-Pin VSON With PowerPAD™
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| COMP | 1 | I/O | Compensation pin for control, connect a 4.7 nF capacitor between this pin and GND |
| GND | 2 | — | Ground pin |
| VIN | 3 | I | Supply voltage input for control logic, connect a RC circuit of 10R and 100 nF to filter this supply voltage |
| EN | 4 | I | Enable pin (EN = GND: disabled; EN = VIN: enabled) |
| IN | 5 | I | Supply voltage for the power switch |
| SW | 6 | O | Inverter switch output |
| PS_GND | 7 | I | Connect to GND for control logic |
| OUT | 8 | I | Output voltage sense input |
| FB | 9 | I | Feedback pin for the voltage divider |
| VREF | 10 | O | Reference voltage output. Connect a 220-nF capacitor to ground. Connect the lower resistor of the negative output voltage divider to this pin. |
