SLVS653C June 2008 – February 2016 TPS63010 , TPS63011 , TPS63012

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

YFF|20
- MXBG145A

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)⁽¹⁾

		MIN	MAX	UNIT
V_I	Input voltage on VIN, VINA, VINA1, L1, L2, VOUT, PS, SYNC, VSEL, EN, FB	–0.3	7	V
T_J	Operating junction temperature	–40	150	°C
T_stg	Storage temperature	–65	150	°C

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾⁽³⁾	±2500	V
		Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾⁽³⁾	±150
		Machine model (MM) ⁽³⁾	±1000

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

(3) ESD testing is performed according to the respective JESD22 JEDEC standard.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

	MIN	MAX	UNIT
Supply voltage at VIN, VINA	2	5.5	V
Operating free air temperature, T_A	–40	85	°C
Operating junction temperature, T_J	–40	125	°C

7.4 Thermal Information

THERMAL METRIC⁽¹⁾		TPS6301x	UNIT
		YFF (DSBGA)
		20 PINS
R_θJA	Junction-to-ambient thermal resistance	71.1	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance	0.5	°C/W
R_θJB	Junction-to-board thermal resistance	11.4	°C/W
ψ_JT	Junction-to-top characterization parameter	2	°C/W
ψ_JB	Junction-to-board characterization parameter	11.3	°C/W
R_θJC(bot)	Junction-to-case (bottom) thermal resistance	N/A	°C/W

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.

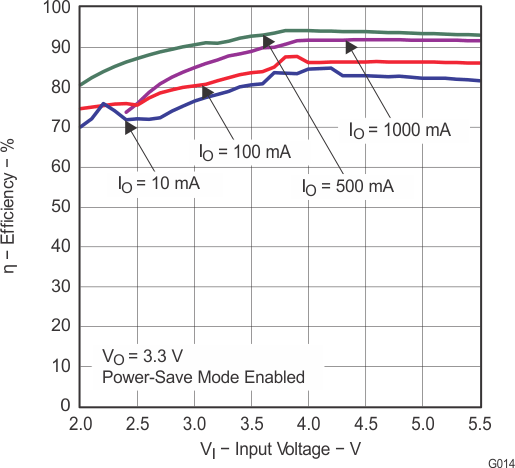

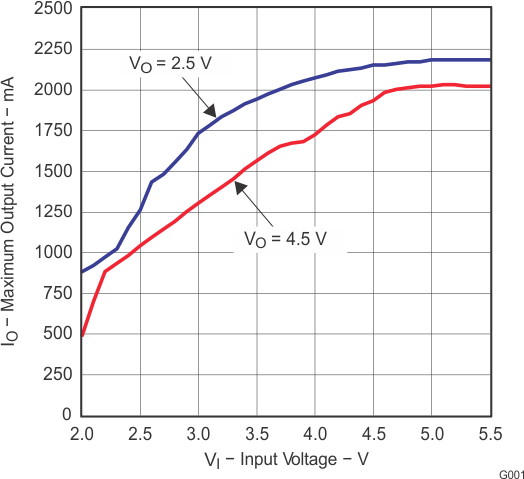

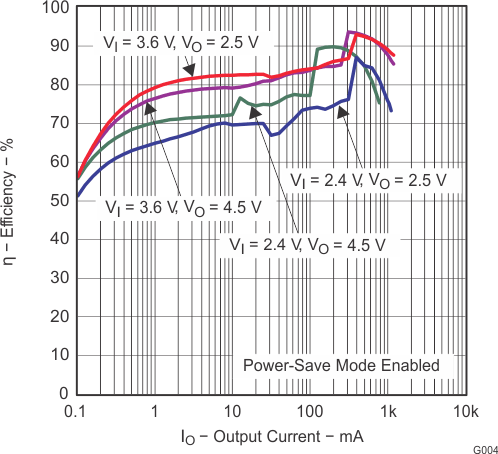

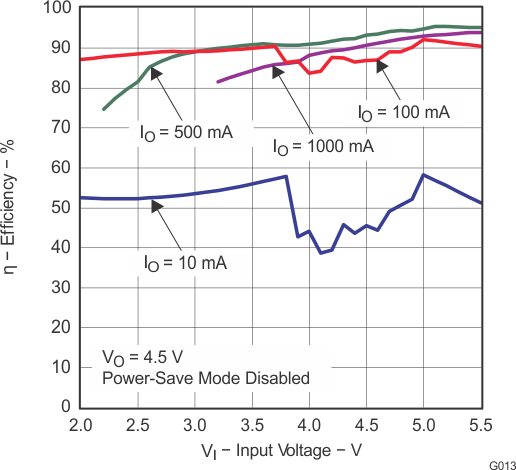

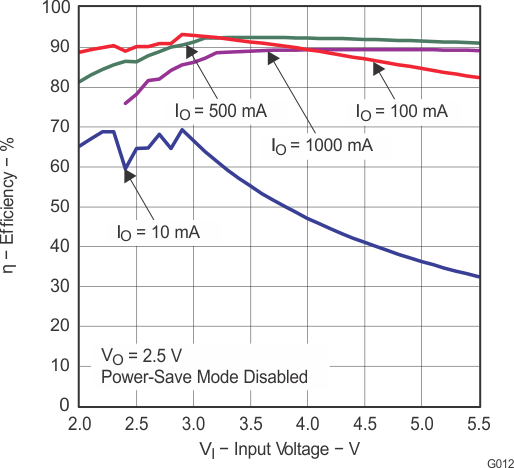

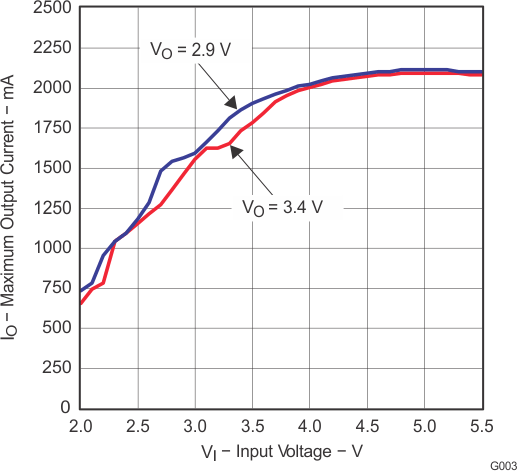

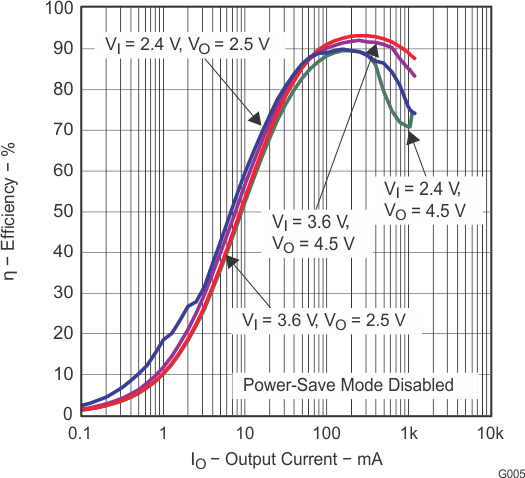

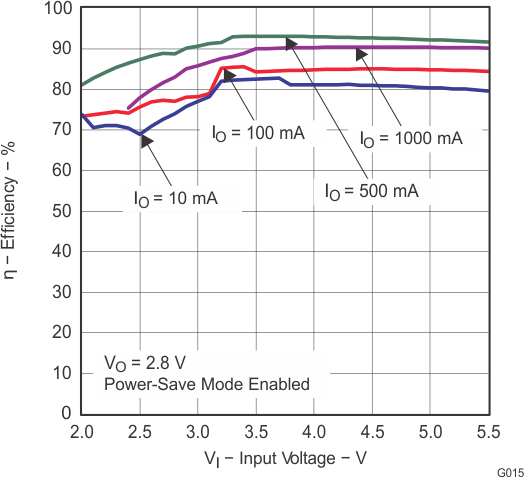

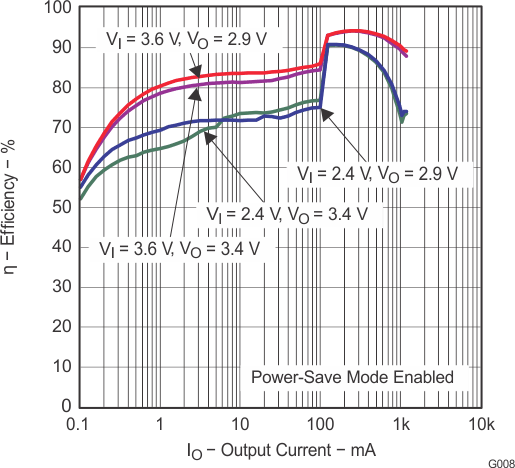

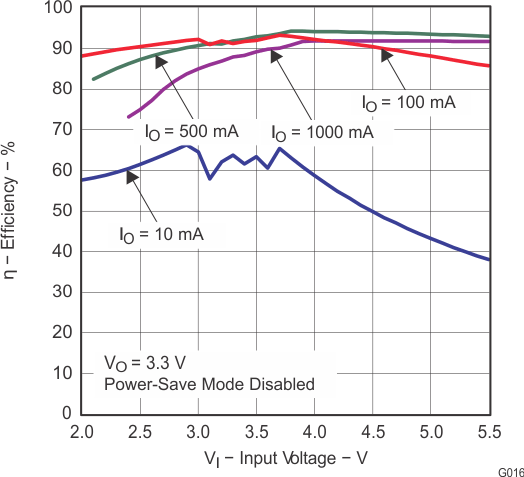

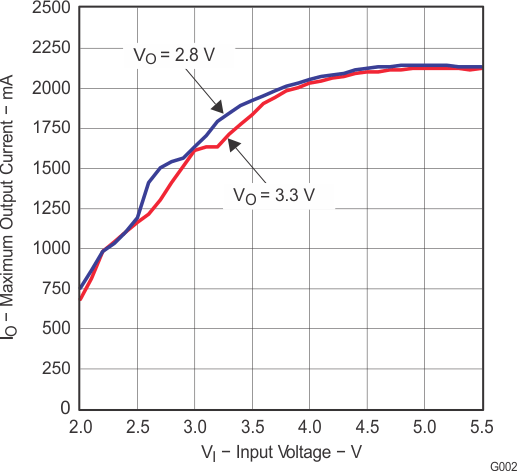

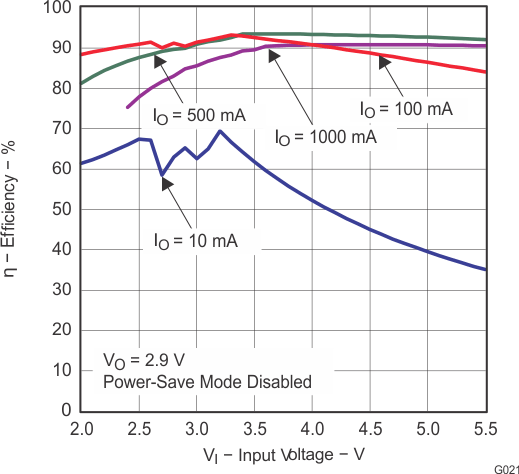

7.5 Electrical Characteristics

over recommended free-air temperature range and over recommended input voltage range (typical at an ambient temperature range of 25°C) (unless otherwise noted)

PARAMETER			TEST CONDITIONS	MIN	TYP	MAX	UNIT
DC-DC STAGE
V_I	Input voltage range			2		5.5	V
V_I	Input voltage range for start-up			2.1		5.5	V
V_O	TPS63010 output voltage range			1.2		5.5	V
V_FB	TPS63010 feedback voltage		0°C ≤ T_A ≤ 60°C	492.5	500	503.5	mV
V_FB	TPS63010 feedback voltage			489	500	507	mV
	TPS63011 output voltage		VSEL = LOW, 0°C ≤ T_A ≤ 60°C	2.758	2.8	2.842	V
	TPS63011 output voltage		VSEL = LOW	2.75	2.8	2.85	V
	TPS63011 output voltage		VSEL = HIGH, 0°C ≤ T_A ≤ 60°C	3.251	3.3	3.35	V
	TPS63011 output voltage		VSEL = HIGH	3.241	3.3	3.359	V
	TPS63012 output voltage		VSEL = LOW, 0°C ≤ T_A ≤ 60°C	2.857	2.9	2.944	V
	TPS63012 output voltage		VSEL = LOW	2.848	2.9	2.952	V
	TPS63012 output voltage		VSEL = HIGH, 0°C ≤ T_A ≤ 60°C	3.349	3.4	3.451	V
	TPS63012 output voltage		VSEL = HIGH	3.339	3.4	3.461	V
f	Oscillator frequency			2200	2400	2600	kHz
	Frequency range for synchronization			2200		3000	kHz
I_SW	Switch current limit		V_IN = V_INA = 3.6 V, T_A = 25°C	2000	2200	2400	mA
	High side switch on resistance		V_IN = V_INA = 3.6 V		100		mΩ
	Low side switch on resistance		V_IN = V_INA = 3.6 V		100		mΩ
	Maximum line regulation		PS = HIGH		0.5%
	Maximum load regulation		PS = HIGH		0.5%
I_q	Quiescent current	VIN	I_O= 0 mA, V_EN= V_IN = V_INA = 3.6 V, V_OUT = 3.3 V		1	2	μA
		VINA			40	50	μA
		VOUT (adjustable output voltage version)			4	6	μA
	FB input impedance (fixed output voltage versions)				1		MΩ
I_S	Shutdown current	VIN	V_EN = 0 V, V_IN = V_INA = 3.6 V PS, SYNC, VSEL clamped on GND or VINA		0.1	1	μA
I_S	Shutdown current	VINA			0.1	1.5	μA
CONTROL STAGE
UVLO	Undervoltage lockout threshold		V_INA voltage decreasing	1.5	1.7	1.8	V
V_IL	EN, PS, SYNC, VSEL input low voltage					0.4	V
V_IH	EN, PS, SYNC, VSEL input high voltage			1.2			V
	EN, PS, SYNC, VSEL input current		Clamped on GND or VINA		0.01	0.1	μA
	Output overvoltage protection				6.5		V
	Overtemperature protection				140		°C
	Overtemperature hysteresis				20		°C

7.6 Dissipation Ratings

PACKAGE⁽¹⁾	THERMAL RESISTANCE R_θJA	POWER RATING T_A ≤ 25°C	DERATING FACTOR ABOVE T_A = 25°C
YFF	84 °C/W	1190 mW	12 mW/°C

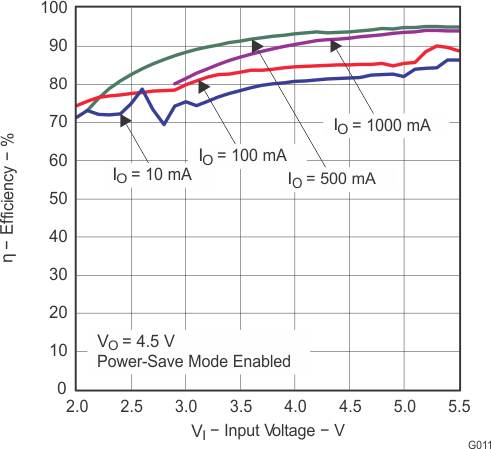

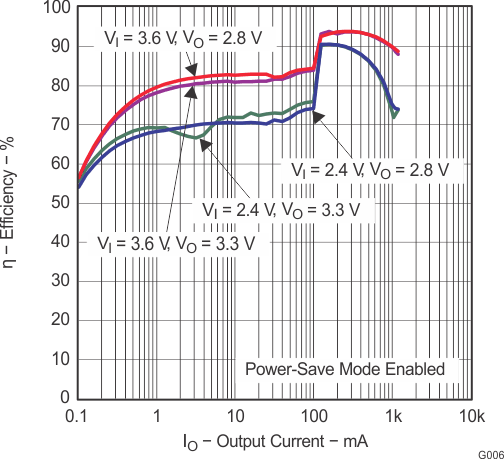

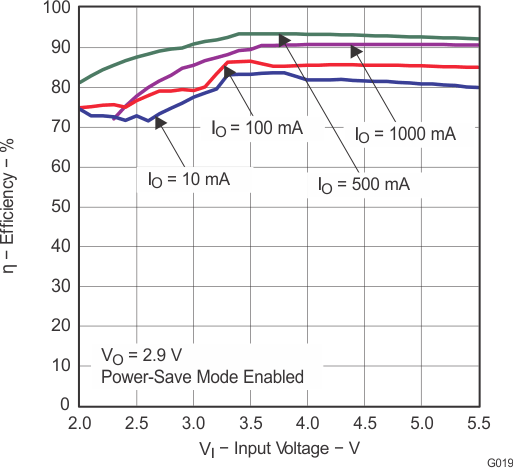

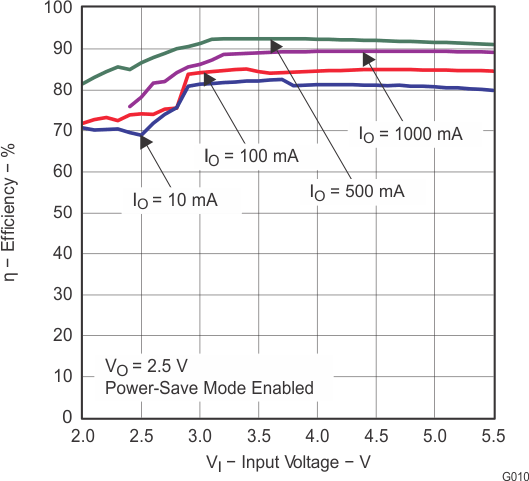

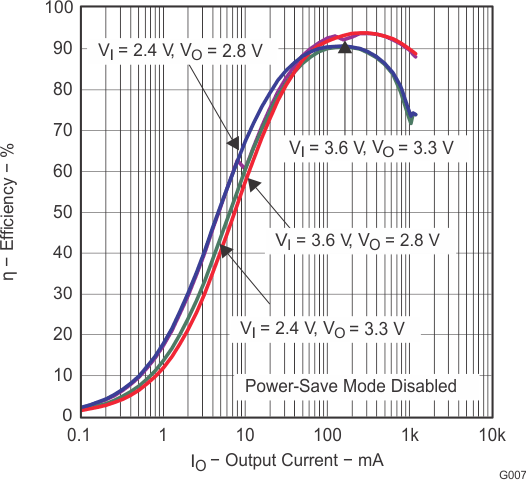

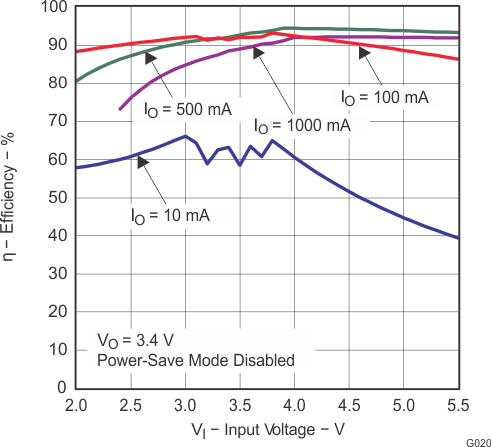

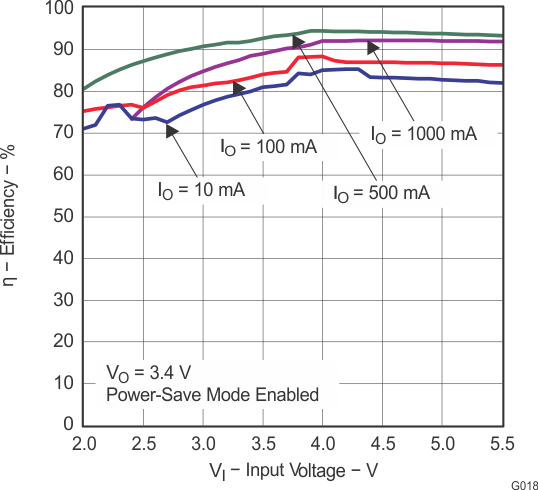

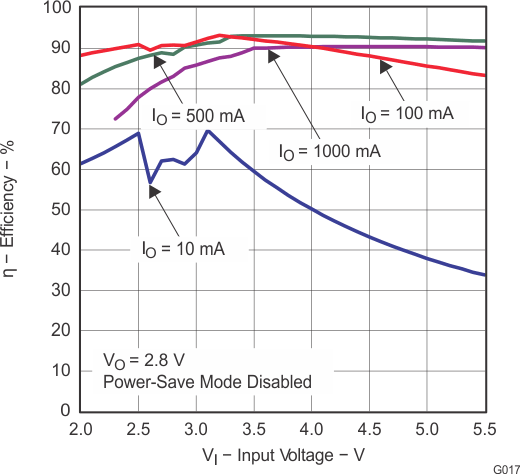

(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI website at www.ti.com.
